GIGABYTE

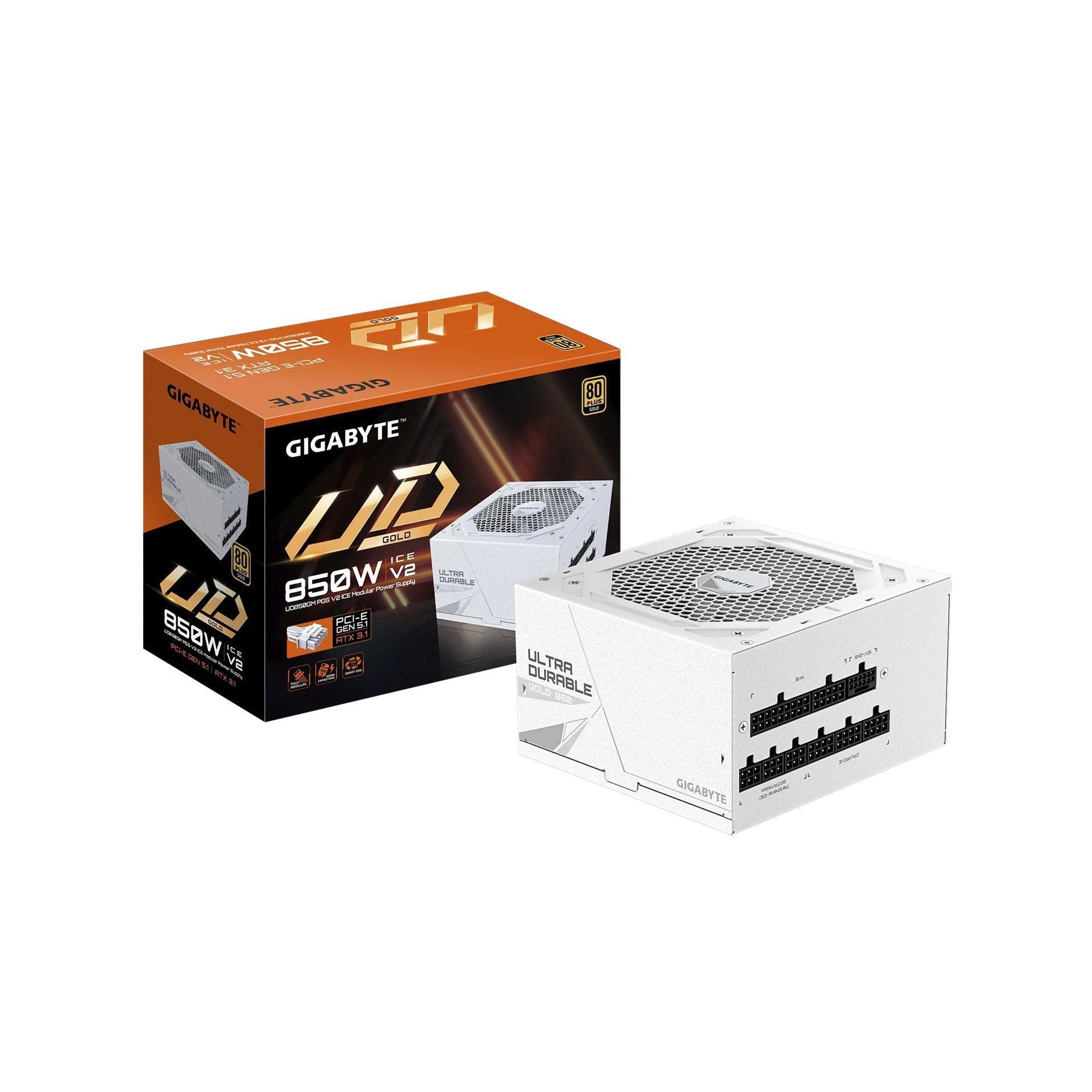

Gigabyte UD850GM PG5 850W ATX Gold PSU 120mm HYB Fan
Regular price
Sale price
$137.00
Regular price
$197.00
Tax included.
Shipping calculated at checkout.
Available in stock (137)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 258 mm |
|---|---|
| Width | 214 mm |
| Height | 126 mm |
Other
| Series | Gigabyte UD Series |
|---|---|
| Colour | White |
Product Details
Product Details
The Gigabyte UD850GM PG5 is an 850W power supply unit (PSU) designed for high-performance ATX systems. It features a single 120mm hydraulic bearing fan and achieves 80 PLUS Gold efficiency ratings.
Performance
- Output Capacity: 850W
- Efficiency: 90% at typical load
- Mechanical Life: >100,000 hours
Connectivity and Protection
- Cable Type: Flat, all black cables
-
Connectors:
- ATX/MB 20+4 Pin x 1 (610mm)
- CPU/EPS 4+4 Pin x 2 (600mm + 200mm)
- PCI-e 12+4 Pin x 1 (700mm)
- PCI-e 6+2 Pin x 4 (600mm + 150mm each)
- SATA x 8 (600mm + 150mm each)
- 4-Pin Peripheral x 3, 4-Pin Floppy x 1 (500mm + 120mm each)
- Protection: OVP/OPP/SCP/UVP/OCP/OTP
- Hold Up Time: >16ms
- Power Good Signal: 100-150ms
Technical Specifications
- Type: Intel Form Factor ATX 12V
- PFC: Active PFC (>0.9 typical)
- Input Voltage: 100-240 Vac (full range)
- Input Current: 12-6A
- Input Frequency: 60-50 Hz
- Fan Type: 120mm Hydraulic Bearing (HYB) fan
- Dimensions: 150 x 140 x 86 mm
Warranty
Warranty
Manufacturer warranty 60 Months
