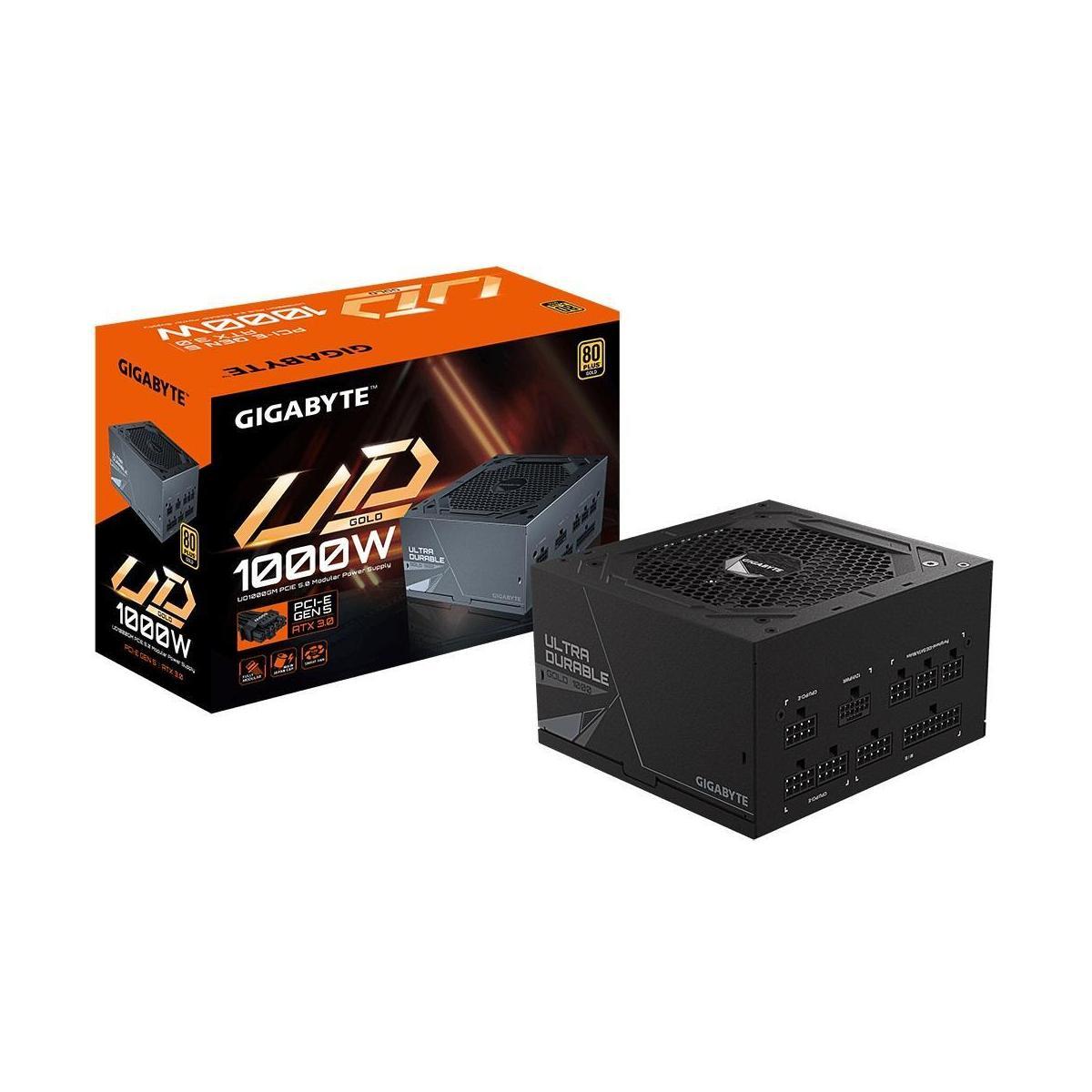

Gigabyte UD1000GM PG5 2.0 1000W ATX Gold PSU 120mm Fan Black Flat Cables

The Gigabyte UD1000GM PG5 2.0 is a high-performance power supply unit (PSU) designed for demanding PC builds. It features an Intel ATX 3.0 standard and supports PCIe Gen 5.0 graphics cards with its fully modular design, offering flexibility in cable management.

Performance

• Type: Intel Form Factor ATX 12V v3.0
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz
• Output Capacity: 1000W
• Efficiency: 80 PLUS Gold certified, >90% at typical load
• Mtbf: >100,000 hours

Fan and Thermal Management

• Fan Type: 120mm Hydraulic Bearing (HYB) fan with smart thermal solution

Protection Features

• OVP/OPP/SCP/UVP/OCP/OTP protection

Cable Management

• All cables are flat and black for improved cable routing

Connectivity

• ATX/MB 20+4 Pin x 1: 610mm
• CPU/EPS 4+4 Pin x 2: 600mm + 200mm
• PCI-e 16 Pin x 1: 700mm
• PCI-e 6+2 Pin x 4: 600mm + 150mm (x2)
• SATA x 8: 600mm + 150mm (x2) + 150mm (x2)
• 4-Pin Peripheral x 3 + 4-Pin Floppy x 1: 500mm + 120mm + 120mm + 150mm

The Gigabyte UD1000GM PG5 2.0 comes with a comprehensive 10-year warranty, ensuring long-term reliability and peace of mind.
