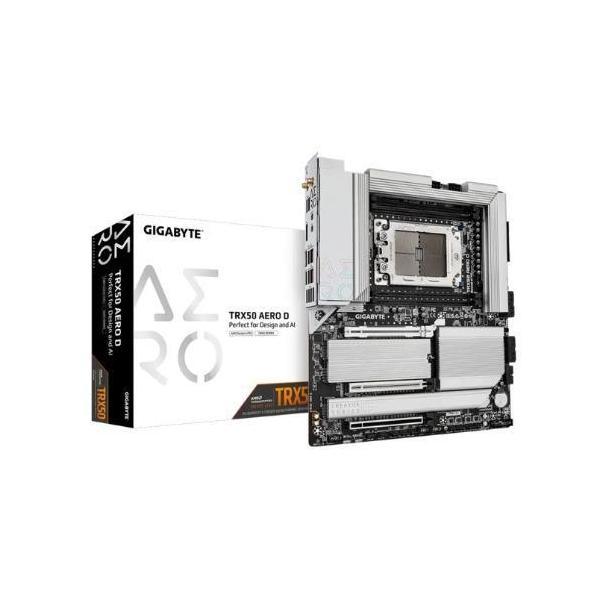

Gigabyte TRX50 AERO D AMD Ryzen DDR5 Motherboard 4x M.2 8x SATA 11x USB 3.2

The Gigabyte TRX50 AERO D is a high-performance motherboard designed for AMD Ryzen processors. It supports up to 4 DDR5 memory slots with quad-channel architecture and offers extensive storage options including PCIe x16 slots and multiple M.2 and SATA connectors.

Performance

• Supports AMD Ryzen™ Threadripper™ PRO 7000 and 7000 Series processors
• Chipset: AMD TRX50
• Memory support: DDR5 up to 1TB (256 GB single DIMM capacity)
• Quad channel memory architecture
• Support for AMD EXPO™ and XMP memory modules

Connectivity

• Marvell® AQtion AQC113C 10GbE LAN chip (LAN1)
• Realtek® 2.5GbE LAN chip (LAN)
• Qualcomm® Wi-Fi 7 QCNCM865 with Bluetooth 5.3
• Note: Wi-Fi 7 features require Windows 11 SV3 and may not be supported in all regions due to regulatory restrictions.

Expansion Slots

• 2 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2) supporting PCIe 5.0
• 1 x PCI Express x16 slot (PCIEX16_3) supporting PCIe 4.0

Storage Interface

• 4 x M.2 connectors for PCIe and SATA SSDs
• 8 x SATA 6Gb/s connectors with RAID support

USB Ports

• 11 x USB 3.2 ports (including Type-A and Type-C)
• 4 x USB 2.0/1.1 ports

Internal I/O Connectors

• 24-pin ATX main power connector
• 8-pin ATX 12V power connectors
• Fan headers, addressable RGB Gen2 LED strip headers
• Variety of other internal header connections for front panel, USB, and system control features

Back Panel Connectors

• Q-Flash Plus button
• SMA antenna connectors (2T2R)
• DisplayPort In port
• USB4® Type-C port
