GIGABYTE

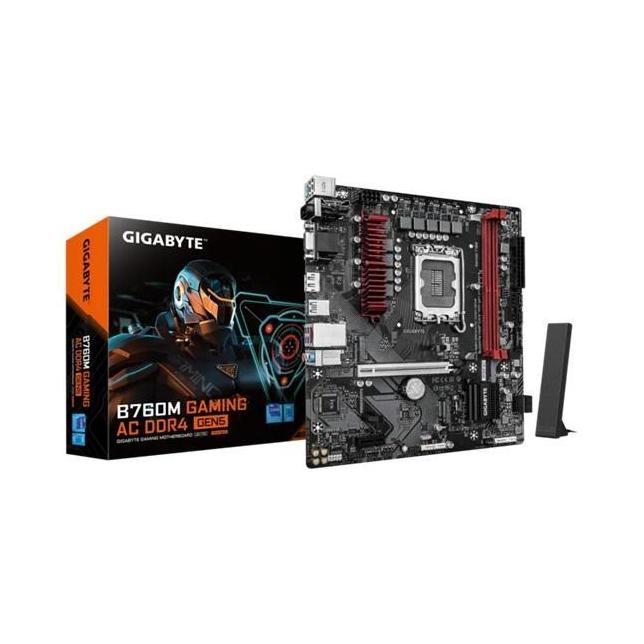

Gigabyte B760M GAMING AC DDR4 LGA1700 Wi-Fi PCIe 5.0 x16 Motherboard
Regular price
$166.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (52)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 276 mm |
|---|---|
| Width | 272 mm |
| Height | 70 mm |
Product Details
Product Details
The Gigabyte B760M GAMING AC is a Micro ATX motherboard designed for Intel processors with LGA1700 sockets, supporting 12th to 14th generation Intel Core, Pentium Gold, and Celeron CPUs. It features:
Performance
- CPU socket: LGA1700 (supports up to 64GB DDR4 memory)
- Multichannel memory architecture with support for ECC and XMP modules
- PCIe slots: 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x1
Display
- D-Sub port (maximum resolution of 1920x1200@60 Hz)
- HDMI port (supports up to 4K@60Hz, HDMI 2.1 and HDCP 2.3)
- DisplayPort (up to 4096x2304@60 Hz, DisplayPort 1.2 and HDCP 2.3)
Connectivity
- Realtek 2.5GbE LAN chip supporting up to 2.5 Gbps/1 Gbps/100 Mbps
- M.2 connectors: PCIe 4.0 x4/x2 SSD support (PCIEX16 slot and M2P_SB)
- SATA 6Gb/s connectors for RAID 0, 1, 5, and 10 configurations
Audio
- Realtek Audio CODEC with High Definition Audio support (up to 7.1-channel)
- S/PDIF Out audio interface
Bundled Software & Features
- Norton Internet Security (OEM version)
- Gigabyte Control Center (GCC) with Q-Flash, Q-Flash Plus, and Smart Backup features
The Gigabyte B760M GAMING AC supports Windows 11 and Windows 10 operating systems.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
Read our warranty policy
