DeepCool CH170 DIGITAL WHT ITX Case Digital Status Display Mesh Panels
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 305 mm |
|---|
Motherboard
| Motherboard Form Factor | Mini-ITX |
|---|
Expansion & Slots
| Expansion Slot Types | PCIe |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 172 mm |
|---|---|
| Included Fan Count | 0 |
Case & Build
| Chassis Type | Compact, SFF |
|---|---|
| Side Panel Style | Other, Mesh |
| Material | Plastic, Mesh, Metal |
| Compatible Motherboard Form Factor | Micro-ATX, Mini-ITX |
| Compatible Power Supply Form Factor | SFX-L, ATX, SFX |
Other
| Series | DeepCool CH Series |
|---|---|
| Colour | White |
Product Details
Product Details

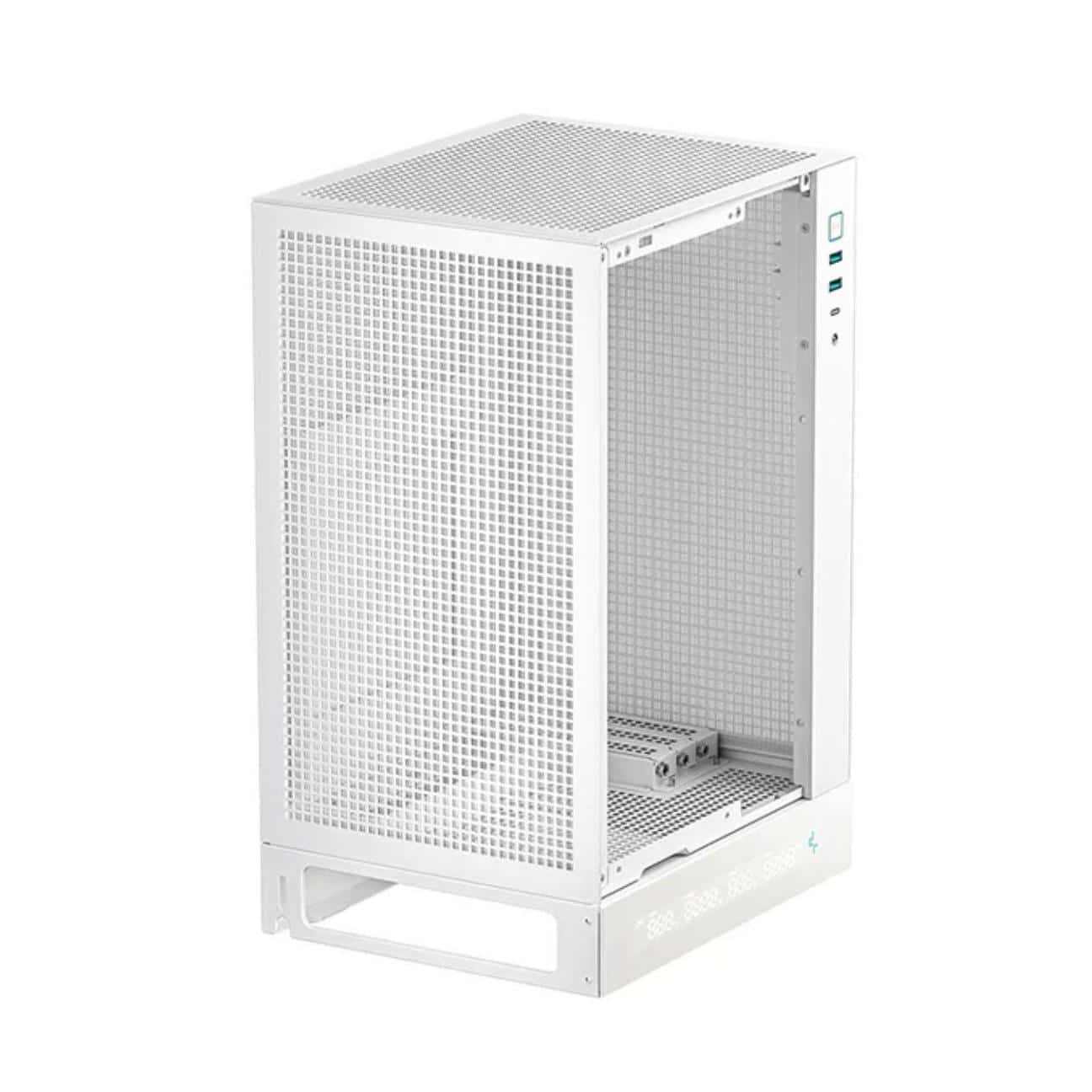

The DEEPCOOL CH170 DIGITAL WH is an extremely portable mini-ITX case designed for compact builds with a digital status display and abundant airflow ventilation. It features mesh panels and supports full-sized air coolers as well as 240mm AIO water cooling systems.
Display
- Digital status display
Dimensions & Weight
- Product Dimensions: 380x200x250mm (L×W×H)
- Net Weight: 3.5kg
Materials
- ABS+SPCC
Motherboard Support
- Mini-ITX
I/O Ports
- Front: USB3.0 x 2, Audio x 1, Gen2 Type-C x 1
Disk Bays
- 3.5" Drive Bay: 1 (choose between SSD/HDD/Front fan)
- 2.5" Drive Bay: 1 (choose between SSD/HDD/Front fan)
Expansion Slots
- 3 slots
Fan Support
- Top: 1×120mm
- Rear: 2×120mm
- Bottom: 1×120mm
- Sides: 2×120mm (supports 240mm radiator)
Cooling & Compatibility
- CPU Cooler Height Limit: 172mm
- GPU Size Limit: SFX/SFX-L Length: 305mm / ATX Length: 230mm, Height: 138mm, Width: 65mm (for 3 slots)
- Power Supply Type: ATX PS2 (max length: 140mm), SFX, or SFX-L
The DEEPCOOL CH170 DIGITAL WH is ideal for users seeking a compact and stylish case that offers excellent airflow and cooling options.
