DEEPCOOL CG580 WH Panoramic ATX Mid-Tower Case 2x360mm Rad 9x120mm Fans USB3.0x2 Audio I/O
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 410 mm |
|---|
Expansion & Slots
| Expansion Slot Types | PCIe |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 176 mm |
|---|---|
| Included Fan Count | 0 |
Case & Build
| Tempered Glass Panel | Yes |
|---|---|
| Chassis Type | Tower, Mid tower |
| Side Panel Style | Tempered glass window |
| Material | Metal, Plastic, Glass |
| Compatible Motherboard Form Factor | Micro-ATX, Mini-ITX, ATX |
| Compatible Power Supply Form Factor | ATX |
Other
| Series | DeepCool CG Series |
|---|---|
| Colour | White |
Description
Description

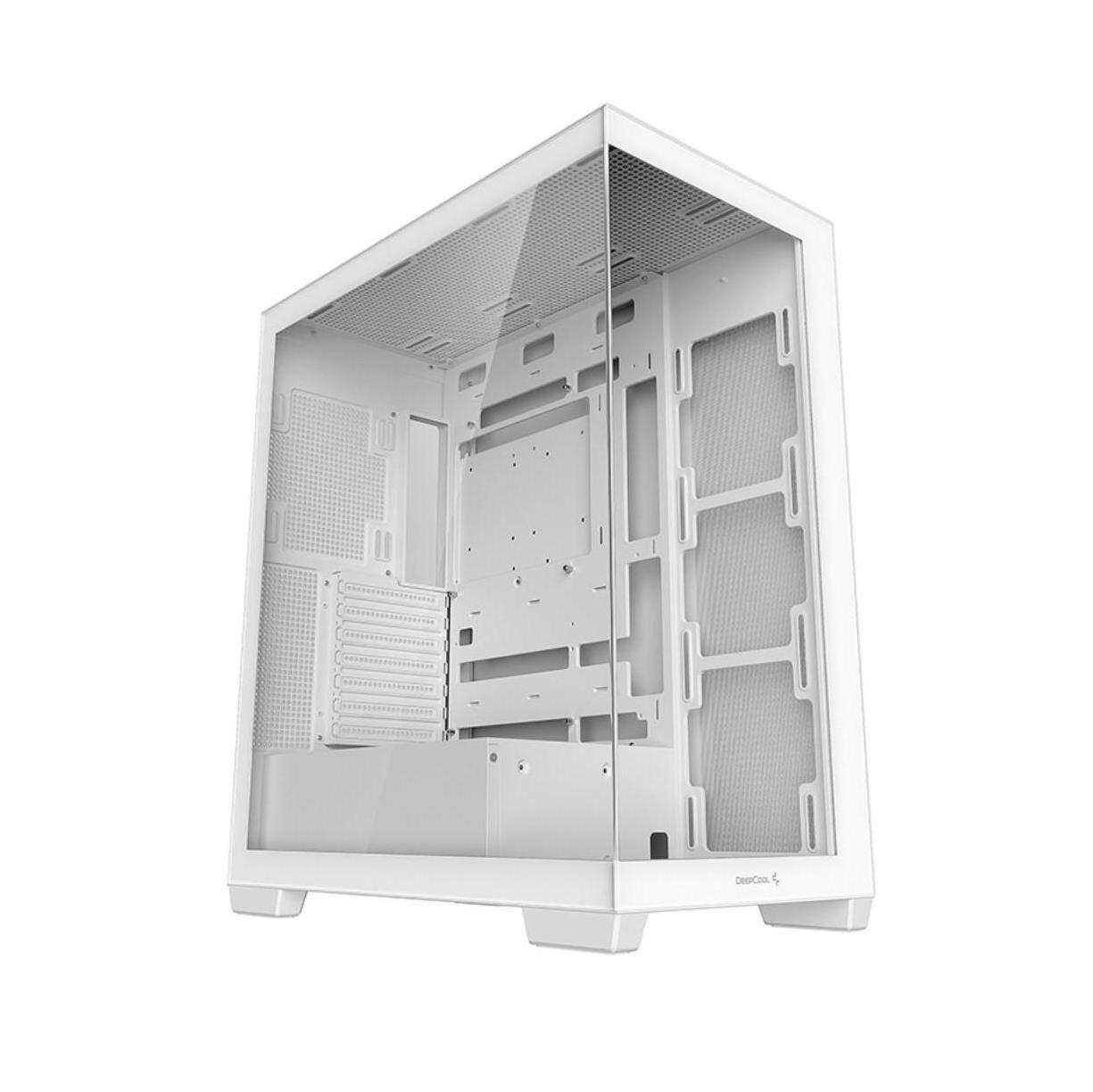

The DEEPCOOL CG580 WH is a white-coated panoramic ATX mid-tower case designed to showcase internal components while offering robust functionality and support for extensive cooling solutions.
Display
- Tempered glass side panel
Performance
- Motherboard Support: ITX/Micro-ATX/ATX
- Expansion Slots: 7
- CPU Cooler Height Limit: 176mm
- GPU Length Limit: 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Connectivity
- Front I/O Ports: USB3.0 × 2, Audio × 1, Power, Reset
Radiators & Fans
- Fan Support:
- Front: NA
- Top: 3×120mm/2x140mm
- Sides: 3x120mm
- Rear: 1×120mm/1x140mm
- Bottom: 1×120mm (3.5 HDD/120FAN : Choose one of two)
- Radiator Support:
- Top: 120/140/240/280/360mm
- Sides: 120/240/360mm
- Rear: 120/140mm
Storage & PSU
- 3.5" Drive Bays: 2
- 2.5" Drive Bays: 2+1
- PSU Shrouded: 2×120mm (maximum length: 210mm)
Dimensions & Weight
- Product Dimensions: 437×235×501mm (L×W×H)
- Net Weight: 7.9Kg
- Materials: ABS+SGCC+Tempered Glass
