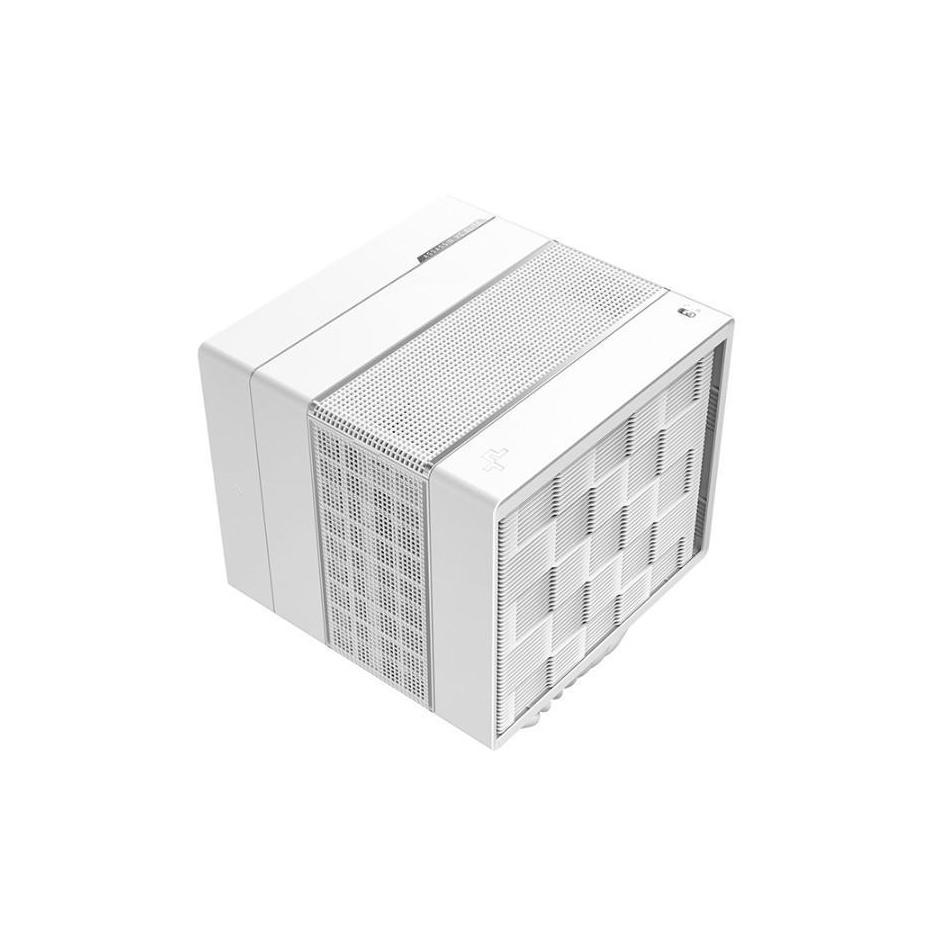

DEEPCOOL ASSASSIN VC ELITE WH 7 Copper Heat Pipes CPU Air Cooler LGA2066/2011-v3/1851/AM4

The DeepCool ASSASSIN VC ELITE WH is a high-performance CPU air cooler designed for Intel and AMD sockets. It features a white aesthetic with a vapor chamber at the base to enhance heat transfer efficiency, supporting up to 300 watts of thermal design power (TDP).

Display

N/A

Performance

• Fan Speed (Performance Mode): 500~1800 RPM±10% / 500~1700 RPM±10%
• Fan Airflow (Performance Mode): 61.25 CFM / 58.06 CFM
• Fan Air Pressure (Performance Mode): 3.76 mmAq / 2.1 mmAq
• Overall Noise (Performance Mode): ≤29.3 dB(A)
• Fan Speed (Quiet Mode): 500~1450 RPM±10% / 500~1350 RPM±10%
• Fan Airflow (Quiet Mode): 48.55 CFM / 46.75 CFM
• Fan Air Pressure (Quiet Mode): 2.46 mmAq / 1.35 mmAq
• Overall Noise (Quiet Mode): ≤22.6 dB(A)

Storage

N/A

Connectivity

• Fan Connector: 4-pin PWM
• Rated Voltage: 12 VDC
• Fan Rated Current: 0.2 A / 0.2 A
• Fan Power Consumption: 2.4W / 2.4 W
• Power Consumption (Performance Mode): 4.8 W
• Power Consumption (Quiet Mode): 3.6 W

Dimensions and Weight

• Product Dimensions: 144×147×164 mm (L×W×H)
• Heatsink Dimensions: 140×110×160 mm (L×W×H)
• Fan Dimensions: 140×140×25 mm / 120×120×25 mm (L×W×H)
• Net Weight: 1772 g

Compatibility

• Intel LGA2066, LGA2011-v3, LGA2011, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155
• AMD AM5, AM4

Tech Specifications

• Copper Heat Pipes: 7 x Ø6 mm
• Vapor Chamber Base: Yes
• Bearing Type: Fluid Dynamic Bearing
• Motor Type: 6-Pole Fan Motor
