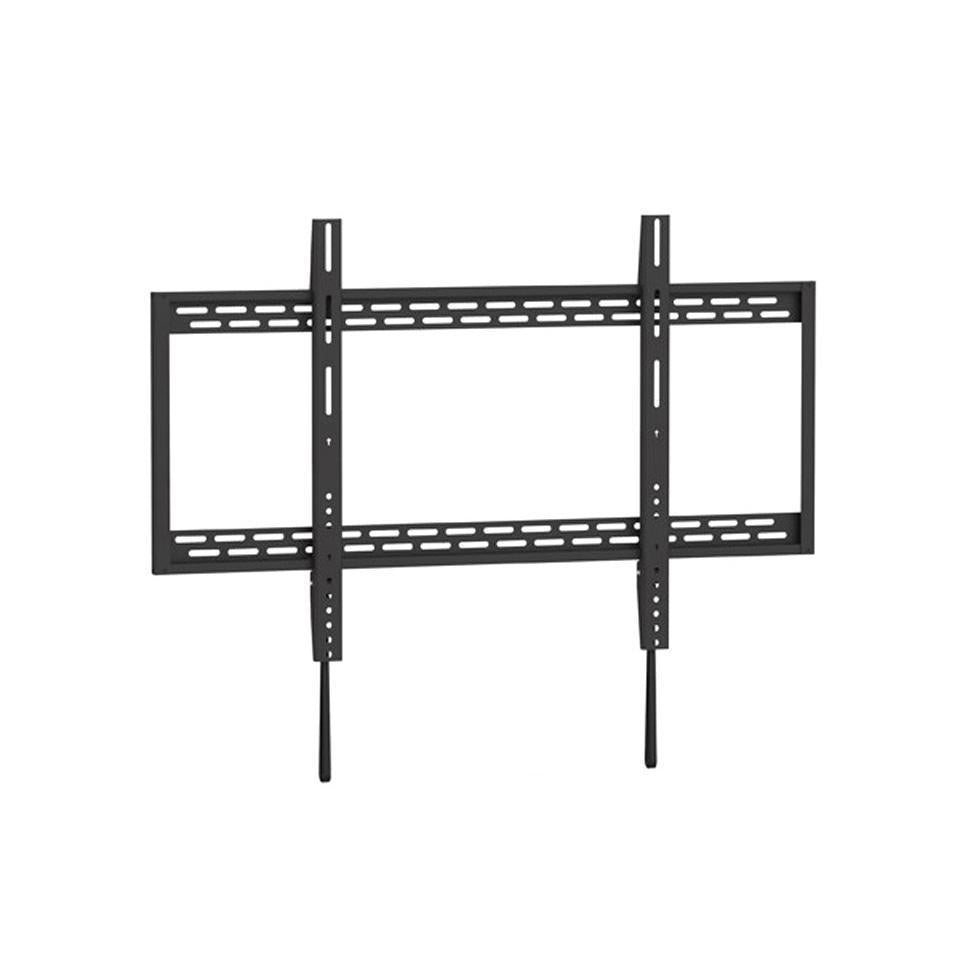

Brateck X-Large Heavy-Duty Fixed Curved TV Wall Mount 60-100
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 1120 mm |
|---|---|
| Width | 420 mm |
| Height | 45 mm |
Product Details
Product Details
The Brateck X-Large Heavy-Duty Fixed Curved TV Wall Mount is designed to securely mount flat panel TVs ranging from 60" to 100", with a weight capacity of up to 100kg (220lbs). It features an automatically click-in spring lock for easy and secure installation, along with open architecture that provides increased ventilation and easier access to wires. This wall mount is suitable for both curved TVs and standard flat panels.
Display
- Fits screen sizes: 60"-100"
- Fits curved TV: Yes
Performance
- Automatically click-in spring lock for added safety
- VESA Universal compatibility (200x200, 300x300, 400x200, 400x400, 600x400, 800x400, 800x600, 900x600)
- Strength tested for a minimum of four times its stated load capacity
Construction
- Material: Steel metal sheet
- Wall Plate thickness: 3mm cold-rolled sheet (0.12")
- Bracket Arm thickness: 2mm cold-rolled sheet (0.079")
- Surface finish: Powder coating
- Colour: Fine texture black
- Dimensions: 1009x630x32mm (39.7"x24.8"x1.3")
Installation
- Panel type: Detachable panel wall plate
- Wall plate type: Fixed wall plate
- Mounting hole pattern: VESA Universal
- Installation options: Double stud (406mm/450mm/600mm), solid wall
Certification
- Certification: UL
Warranty
Warranty
Manufacturer warranty 60 Months
