Brateck

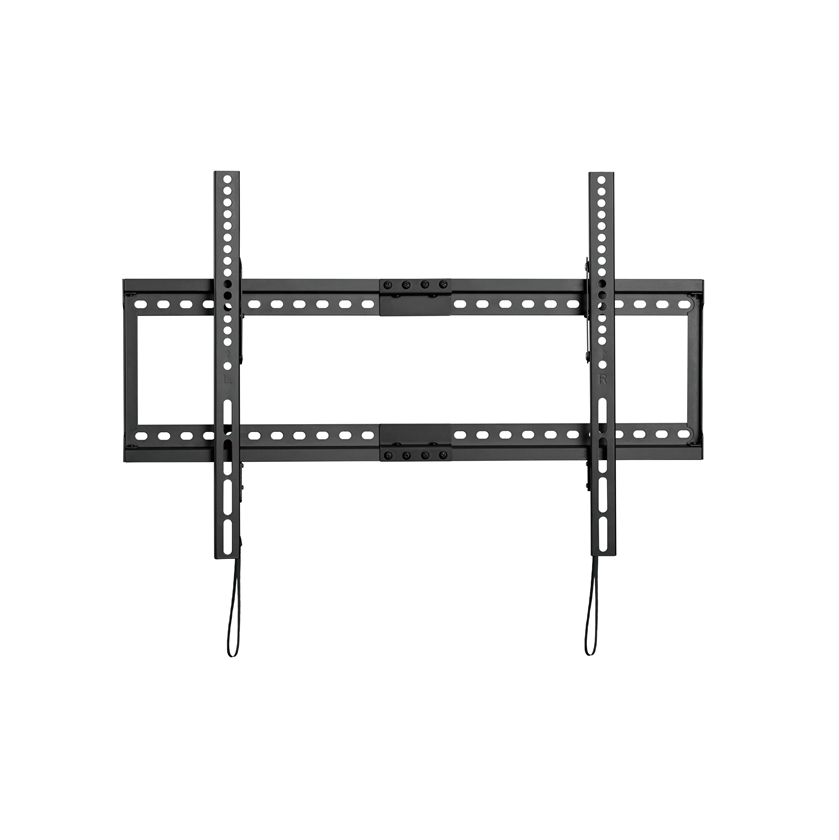

Brateck Tilt TV Wall Mount 37-80" 75KG VESA 150x100-600x400 Black
Available in stock (117)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 445 mm |
|---|---|
| Width | 205 mm |
| Height | 45 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The Brateck Tilt TV Wall Mount is designed for TVs ranging from 37" to 80", with a weight capacity of up to 75kg (165lbs). This mount supports VESA patterns including 150x100, 200x100, 150x150, 200x200, 300x200, 200x400, 400x200, 300x300, 400x300, 600x200, 350x350, 400x400, 600x300, and 600x400. Constructed from steel metal sheets with a thickness of 1.5mm (0.059"), the mount features an automatic spring lock system for easy TV removal.
Features
- Reduced Package Size: Lower transport costs and storage fees, ideal for e-commerce sellers.
- Free-Tilting Design: Adjust forward or backward for better viewing angles and reduced glare.
- Open Architecture: Enhanced ventilation and easier access to wires.
Specifications
- Material: Steel metal sheet
- Metal Sheet Thickness: 1.5mm cold-rolled sheet (Bracket Arm: 0.059", Wall Plate: 0.059")
- Surface Finish: Powder coating
- Colour: Fine Texture Black
- Dimensions: 37x641x420mm (1.5"x25.2"x16.5")
- Tilt Range: 0°~-8°
- Installation: Solid wall, double stud (406mm/450mm/600mm)
- Panel Type: Detachable panel
- Wall Plate Type: Fixed wall plate
- Direction Indicator: Yes
- Accessory Kit Package: Compartment polybag
Warranty
Warranty
Manufacturer warranty 60 Months
