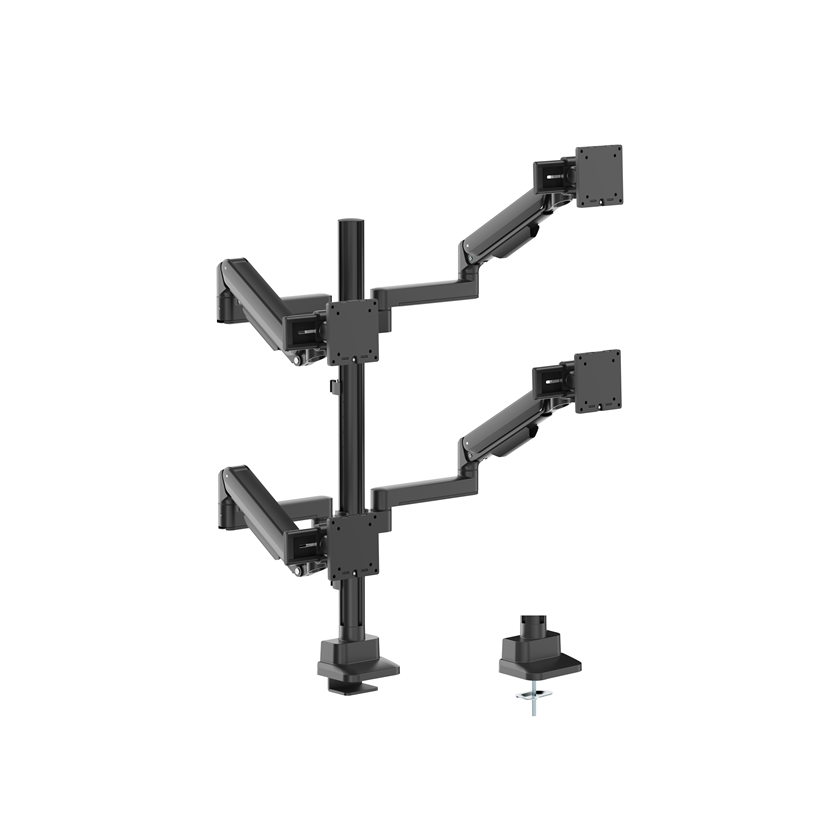

Brateck Modular Mechanical Spring Quad Monitor Arm 17-40" 11KG Slider LS

The Brateck Modular Mechanical Spring Quad Monitor Arm with Sliders is designed to enhance your workspace with its innovative and high-quality features. This arm supports up to four monitors ranging from 17”-40”, each with a weight capacity of 2-11kg (4.4lbs-24.2lbs).

Display Support

• Fits screen sizes: 17"-40"
• VESA compatibility: 75x75, 100x100
• Weight capacity per screen: 2-11kg (4.4lbs-24.2lbs)
• Fits curved monitors: Yes
• Cable management: Included

Mechanical Features

• One-way bearing head tilting structure for smooth adjustments
• Quick-release VESA plate for easy installation and removal
• Precision sliders for ergonomic monitor placement
• 180° screen rotation per arm
• Tilt range: +75° to -45°
• Swivel range: +90° to -90°
• Arm full extension: 611mm (24.1")

Installation and Compatibility

• Pole height: 900mm (35.4")
• Suggested desktop thickness for clamp installation: 10-50mm (0.39"-2")
• Suggested desktop thickness for grommet installation: 10-50mm (0.39"-2")
• Installation methods: Clamp, Grommet

Material and Finish

• Constructed from aluminium, steel, and plastic
• Surface finish: Paint spraying
• Available in black colour only
• Dimensions: 1378x136x1225mm (54.3"x5.4"x48.2")

This monitor arm is a premium solution for organising and enhancing your workspace with its robust design, ease of use, and sleek appearance.
