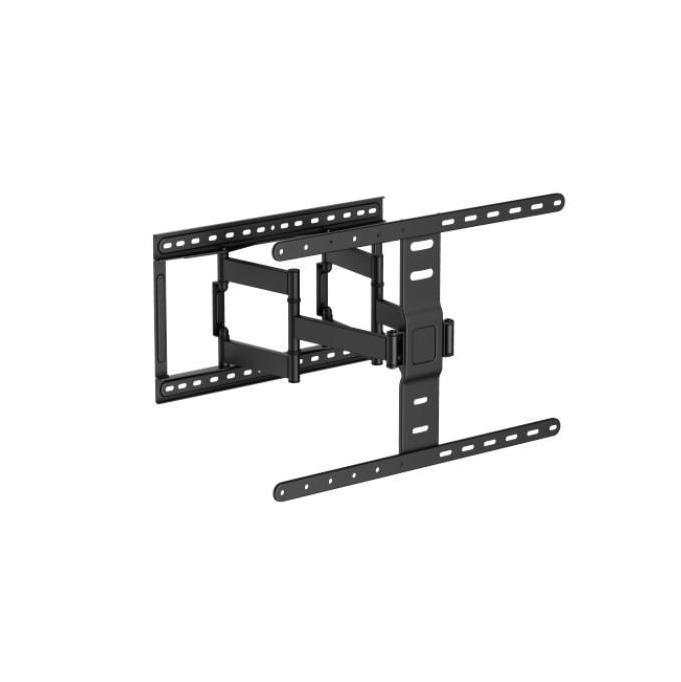

Brateck LPA83-466 Ultra-Slim Full-Motion TV Wall Mount 43-90" 60kg Capacity

The Brateck LPA83-466 is an ultra-slim full-motion TV wall mount designed for TVs ranging from 43"-90" with a weight capacity of 60kg (132lbs). It features swivelling arms, folding design, and cable management to ensure maximum viewing flexibility and organisational convenience.

Features

• Ultra-slim profile
• Swiveling arm(s) for maximum viewing flexibility
• Folding design saves space when not in use
• Cable management system keeps everything organised
• Free-tilting design for easy forward or backward adjustment to reduce glare
• Leveling adjustments allow perfect positioning after hanging
• Easy assembly installation process

Specifications

• Material: Steel metal sheet
• Metal Sheet Thickness: Bracket Arm THK=3.0mm, VESA Panel THK=2.5mm, Wall Plate THK=2.5mm (Bracket Arm THK=0.12", VESA Panel THK=0.098", Wall Plate THK=0.098")
• Pipe Size: 40x15x1.2mm square steel tube (1.6"x0.59"x0.047" square steel tube)
• Surface Finish: Powder coating
• Colour: Fine texture black
• VESA Compatibility: 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400
• Max. Mounting Hole: 602x400
• Tilt Range: +3° to -12°
• Swivel Range: +60° to -60°
• Screen Level Adjustment: +3° to -3°
• Screen Freely Tilting: Yes
• Panel Type: Detachable panel
• Wall Plate Type: Fixed wall plate
• Bubble Level: Hook-on bubble level included in components package
• Anti-theft: No
• AV Component Shelf: No
• Direction Indicator: Yes
• Cable Management: Yes
• Installation: Solid wall, double stud (406mm/450mm)
• Approved Profile: 27~420mm (1.1"~16.5")
