Brateck
Brateck Fixed TV Wall Mount 32-70" 75KG VESA 50x50-200x400 Black
Available in stock (141)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 452 mm |
|---|---|
| Width | 124 mm |
| Height | 40 mm |
Product Details
Product Details

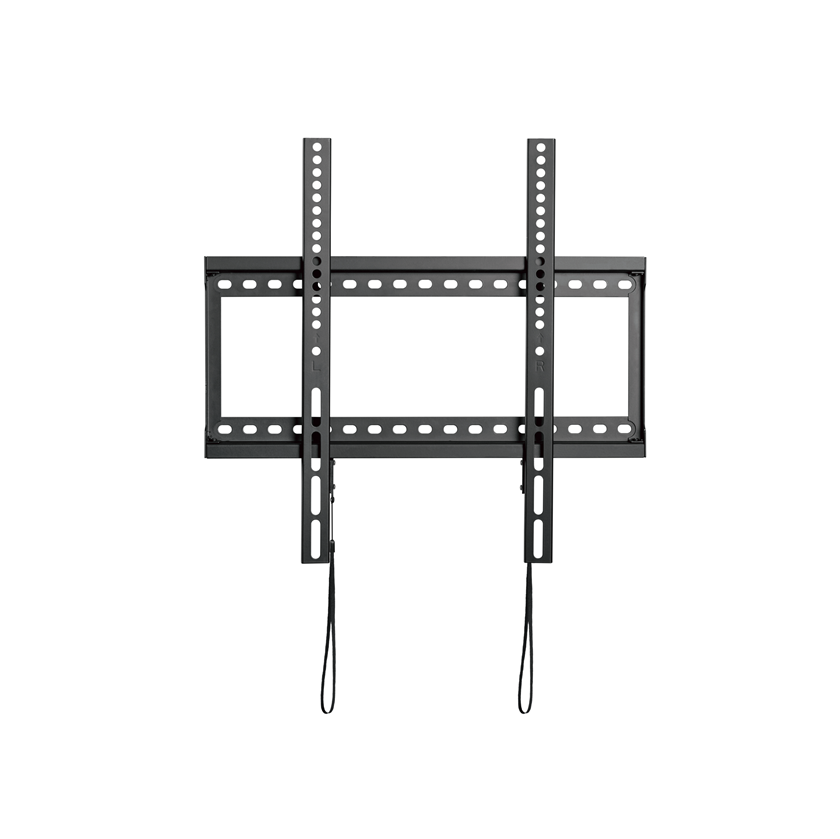

The Brateck Fixed TV Wall Mount is designed for TVs ranging from 32" to 70", with a weight capacity of up to 75kg (165lbs). This mount supports multiple VESA patterns including 50x50, 75x75, 100x100, 100x150, 100x200, 200x100, 200x200, 300x200, and 200x400. Constructed from cold-rolled steel with a powder-coated fine texture black finish, it measures 28x438x420mm (1.1"x17.2"x16.5") and is suitable for both solid wall and double stud installations.
Features
- Reduced Package Size: Lower transport costs and storage fees, ideal for e-commerce sellers.
- Automatic Spring Locks with Quick Release Cords: Easy TV removal.
- Open Architecture: Increased ventilation and easier access to wires.
Specifications
- Material: Steel metal sheet, cold-rolled sheet (VESA Panel THK=0.059", Wall Plate THK=0.059")
- Dimensions: 28x438x420mm (1.1"x17.2"x16.5")
- VESA Compatibility: 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 200x400, 400x200, 300x300, 400x300, 350x350, 400x400
- Max. Mounting Hole: 400x400mm
- Weight Capacity: 75kg (165lbs)
- Installation: Solid wall, double stud (406mm) panel type: Detachable panel; Wall plate type: Fixed wall plate
- Direction Indicator: Yes
- Accessory Kit Package: Compartment polybag
Warranty
Warranty
Manufacturer warranty 60 Months
