Brateck

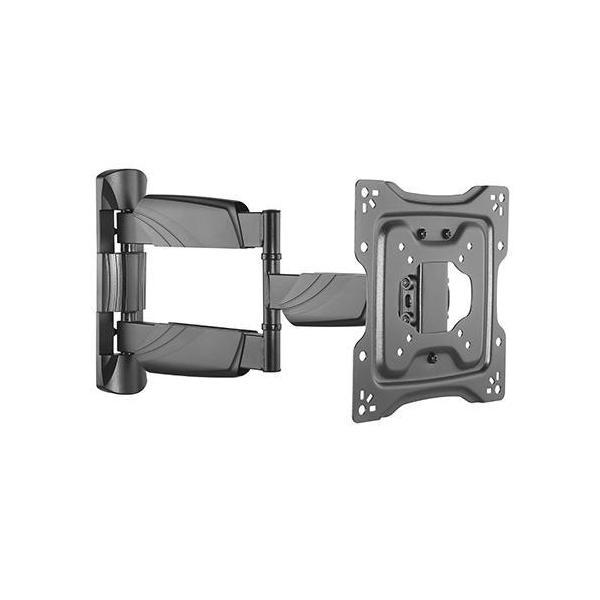

Brateck Elegant Full-Motion TV Wall Mount 23-42" 35KG VESA 75x75-200x100 Black
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 360 mm |
|---|---|
| Width | 270 mm |
| Height | 65 mm |
Product Details
Product Details
The Brateck Elegant Full-Motion TV Wall Mount is designed for TVs ranging from 23" to 42", supporting up to a weight of 35kg (77lbs). This mount offers several features including free-tilting, swiveling arms, and cable management.
Display Compatibility
- Fits screen sizes: 23"-42"
- VESA patterns supported: 75x75, 100x100, 200x100, 200x200
- Curved TV support: No
Performance
- Tilt range: +5° to -15°
- Swivel range: ±90°
- Screen level adjustment: ±3°
- Cable management: Yes
Construction and Installation
- Material: Steel, plastic metal sheet
- Metal sheet thickness: VESA panel THK=1.8mm cold-rolled sheet, Wall plate THK=2.5mm pickling sheet (VESA panel THK=0.071" cold-rolled sheet, Wall plate THK=0.098" pickling sheet)
- Pipe size: 40x20x1.5mm (1.6"x0.79"x0.059")
- Surface finish: Powder coating
- Colour: Fine texture black
- Dimensions: 224x292x510mm (8.8"x11.5"x20.1")
- Installation type: Solid wall, single stud panel
- Mounting hole pattern: VESA only
- Approved profile range: 45~510mm (1.8"~20.1")
- Certification: UL
Note that this mount does not include an anti-theft feature or a bubble level, and it comes in a normal/ziplock polybag package.
