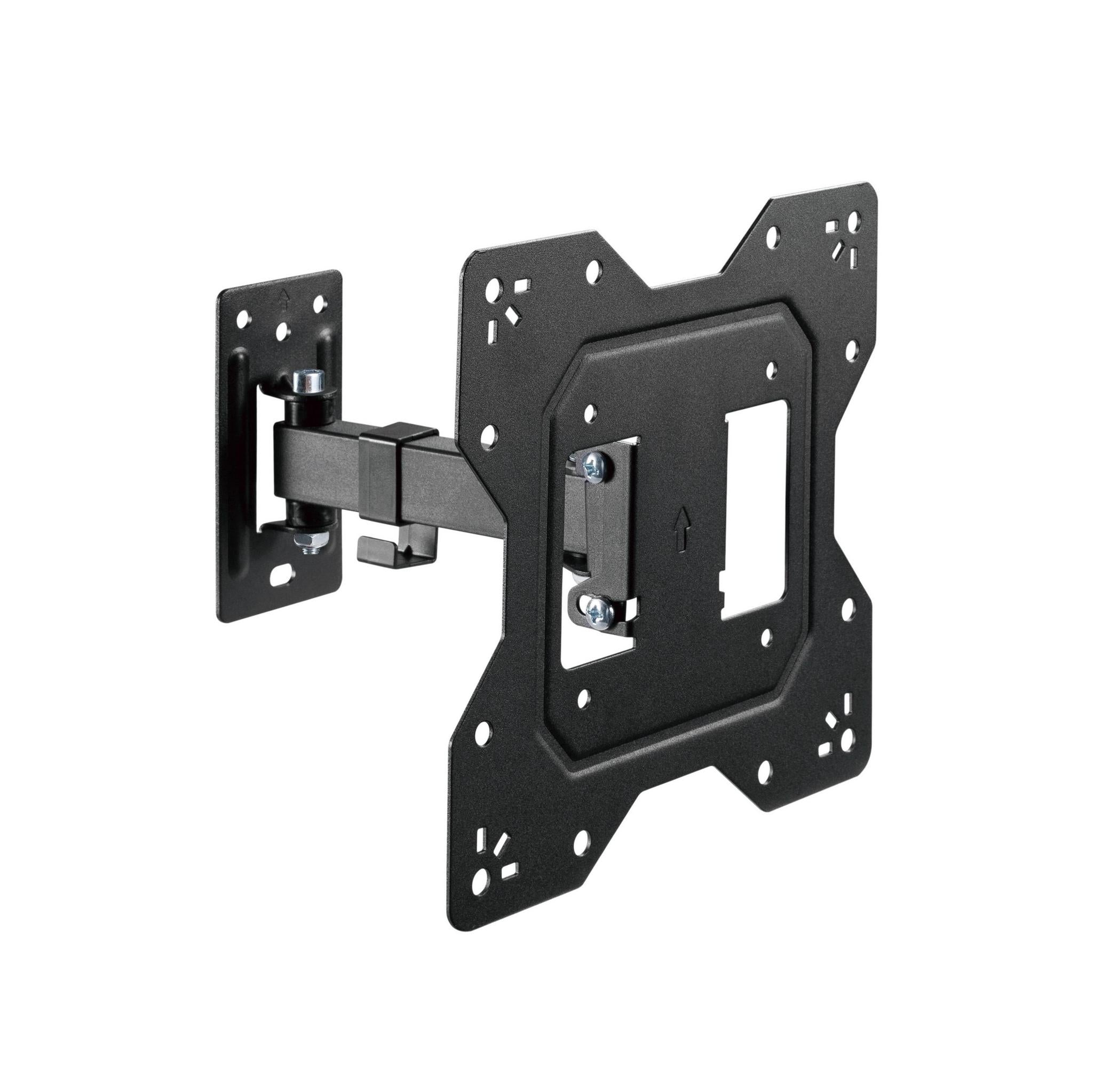

Brateck Economical Full-Motion TV Wall Mount 23-43" 30KG VESA 100x100-200x200 Black

The Brateck Economical Full-Motion TV Wall Mount is designed for TVs ranging from 23" to 43", supporting up to a weight of 30kg (66lbs). It features a free-tilting design and swivelling arms, providing flexibility in viewing angles. The mount includes cable management to keep your setup neat and tidy.

Display Compatibility

• Fits screen sizes: 23"-43"
• Supports curved TVs up to 30kg (66lbs)
• VESA patterns compatible: 100x100, 100x200, 200x100, 200x200

Performance

• Tilt range: +5° to -8°
• Swivel range: ±90°

Construction and Finish

• Material: Steel metal sheet
• VESA panel thickness: 1.8mm cold-rolled sheet (0.071")
• Wall plate thickness: 2.5mm pickling sheet (0.098")
• Pipe size: 30x20x1.2mm square steel tube (1.2"x0.79"x0.047")
• Surface finish: Powder coating
• Colour: Fine texture black

Installation and Features

• Dimensions: 230x230x204mm (9.1"x9.1"x8")
• Profile range: 56~204mm (2.2"~8")
• Direction indicator: Yes
• Cable management: Yes
• Installation type: Solid wall, single stud panel
