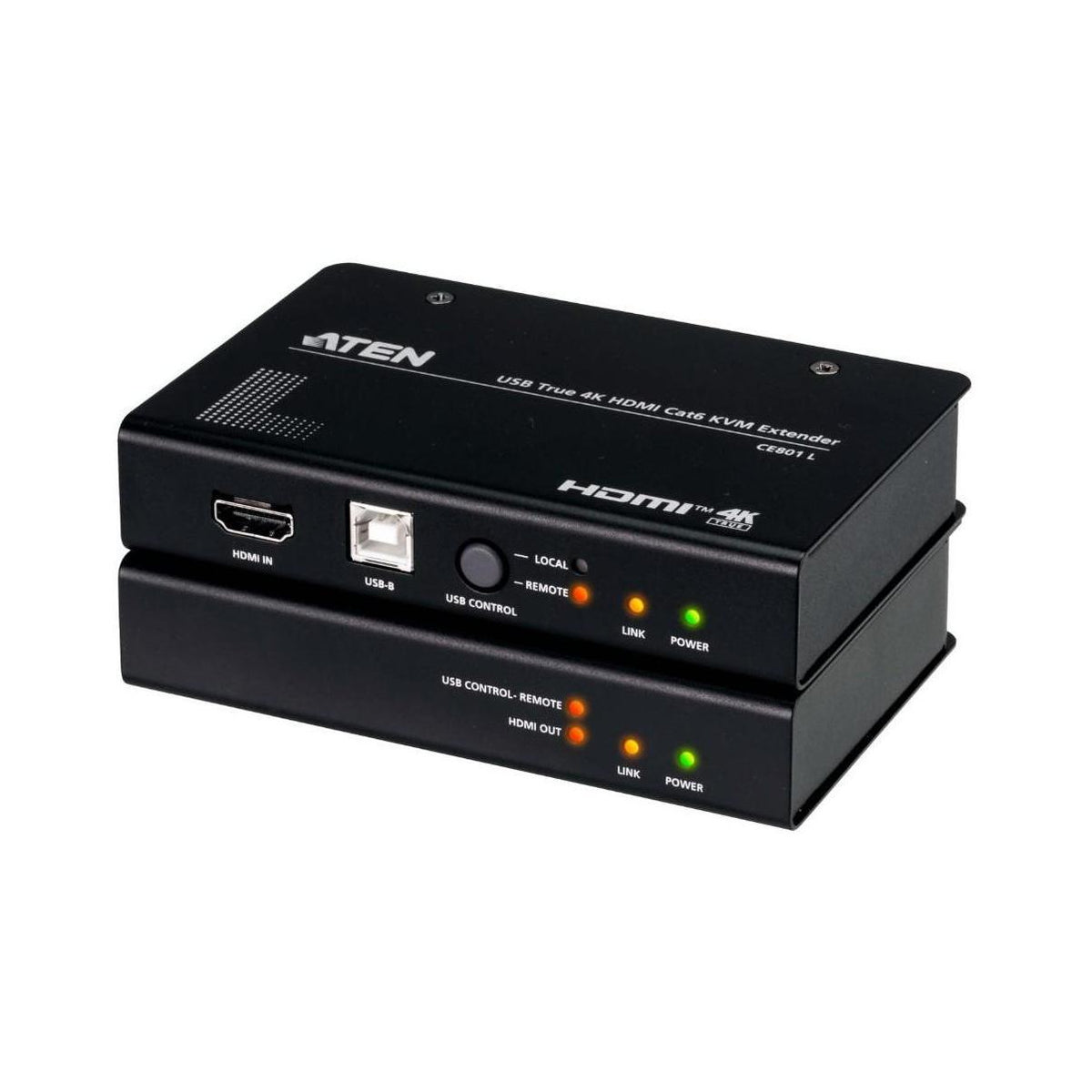

Aten USB True 4K HDMI Cat 6 KVM Extender 4K@70m

The Aten USB True 4K HDMI Cat 6 KVM Extender 4K@70m allows for sharp and life-like True 4K (3840 x 2160 @ 60 Hz 4:4:4) transmission over a single Cat 6 cable up to 70 metres. This extender kit supports HDMI, RS-232, and USB transmission, enabling dual console USB keyboard/mouse operation through a pushbutton switch.

Performance

• HDMI video extension with support for resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
• Dual console USB keyboard/mouse operation switchable via a pushbutton
• Supports HDR 10 for enhanced video quality
• Long reach mode – 1080p extension up to 100 m

Connectivity

• HDMI, RS-232, and USB transmission over a single Cat 6 cable
• Digital audio formats such as 7.1ch Dolby and DTS audio supported
• Plug-and-play with no software or driver required
• Built-in 8KV/15KV ESD protection

Rack-Mounting & Package Contents

• Rack-mountable DC Jack with screw-lock for stable and secure connection
• Package includes:
  • 1 x CE801L USB True 4K HDMI Cat 6 KVM Extender (Local Unit)
  • 1 x CE801R USB True 4K HDMI Cat 6 KVM Extender (Remote Unit)
  • 1 x USB Type-A to USB Type-B cable
  • 2 x mounting kits
  • 1 x foot pad set (8 pcs)
  • 2 x power adapters
  • 1 x user instructions
