Aten Desktop KVMP Switch 4 Port Triple Display 4K DisplayPort Audio Cables Included

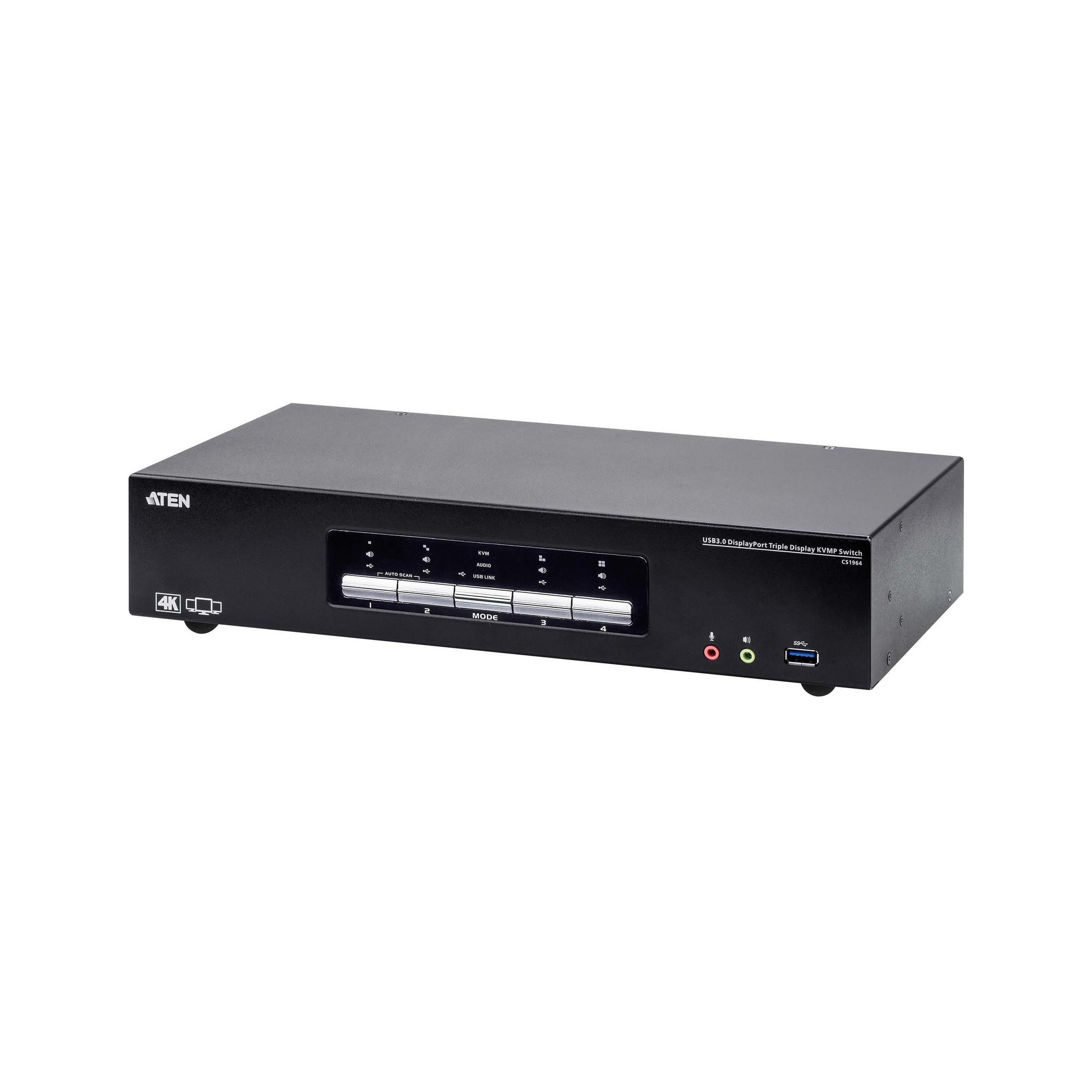

The Aten CS1964 is a versatile desktop KVM switch designed for managing up to four computers with support for 4K resolution and triple-display setups. It features DisplayPort 1.2 compliance and supports MST (Multi-Stream Transport) for superior video quality.

Display

• Supports up to 4096 x 2160 @ 60 Hz and 3840 x 2160 @ 60 Hz resolutions
• Six displays by connecting two CS1964 units for a hex-display setup

Performance

• SuperSpeed USB 3.1 Gen 1 hub with data transfer rates up to 5 Gbps
• Video DynaSync technology
• Hex-Display support by connecting two units for dual triple-display setups controlled by one operator

Connectivity

• 4 x USB3.1 Gen1 Type B Female ports (Blue)
• 12 x DisplayPort Female ports (Black)
• 8 x 3.5mm Audio Jack Female ports (Green and Pink)
• 2 x USB Type A Female ports
• 3 x HDMI Female ports (Black)
• 2 x 3.5mm Audio Jack Female ports for front and rear audio connections

Control Methods

• Computer selection via pushbuttons, hotkeys, mouse, and RS-232 commands

Power & Environmental

• DC12V power input with 15.49W consumption (115 BTU)
• Operating temperature: 0–50°C
• Storage temperature: -20–60°C
• Humidity: 0-80% RH, non-condensing

Physical Properties

• Metal housing
• Weight: 1.93 kg (4.25 lb)
• Dimensions: 33.50 x 15.60 x 6.55 cm (L x W x H)

The Aten CS1964 includes two KVM cable kits for easy setup and management of multiple computers in a single workspace.
