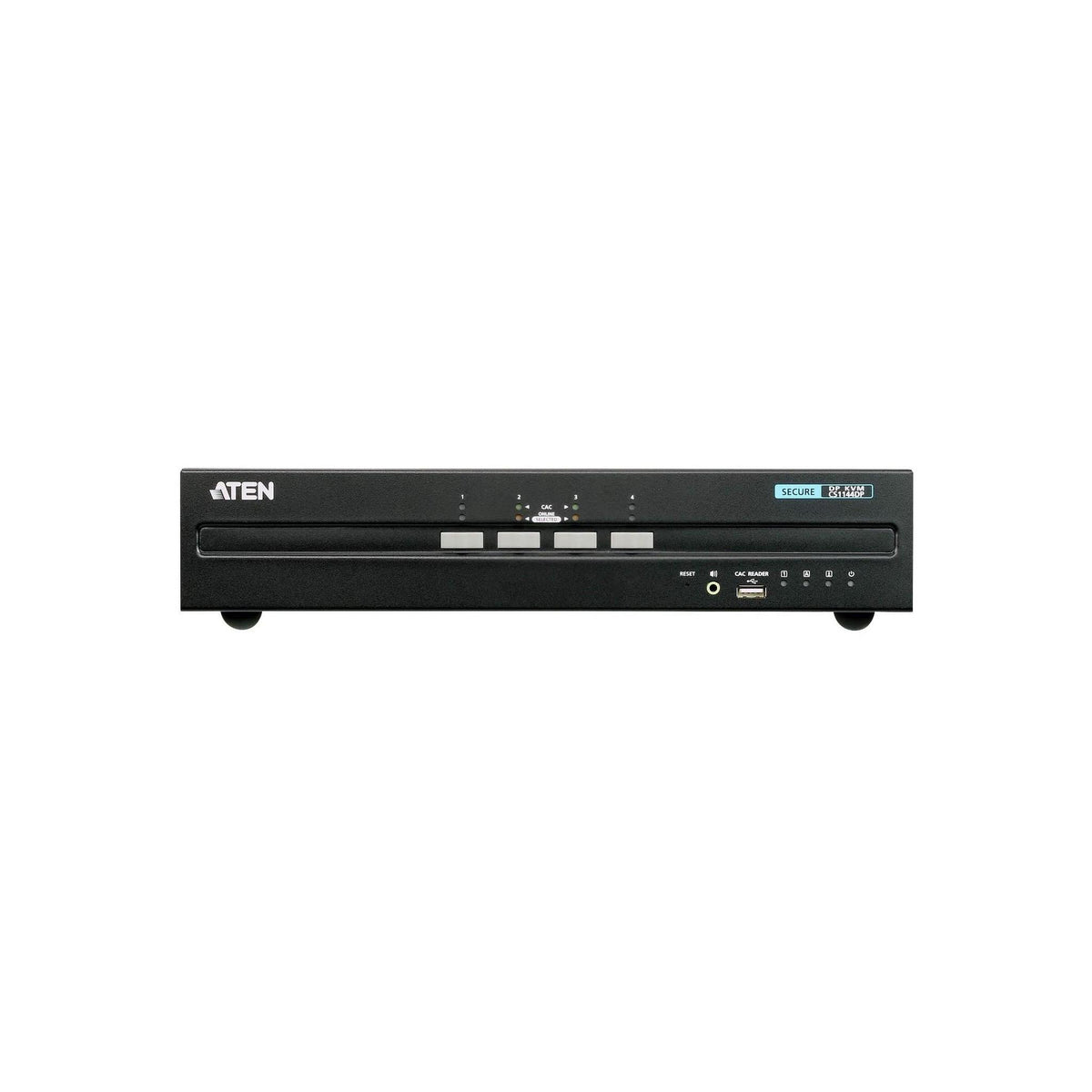

Aten 4-Port USB DisplayPort Dual Display KVMP Switch PSS PP v3.0

The Aten 4-Port USB DisplayPort Dual Display KVM Switch is a secure solution for managing multiple computers with a single keyboard, mouse, and monitor setup. It supports PSS PP v3.0 compliance and includes features such as enabling and disabling CAC devices by port and CAC black/whitelist options.

Connectivity

• Console Ports: 2 x USB Type-A Female (Black), 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 2 x HDMI Female (Black), 1 x Mini Stereo Jack Female (Green; front panel)
• KVM Ports: 8 x USB Type-B Female (White), 8 x DisplayPort Female (Black), 4 x Mini Stereo Jack Female (Green)

Performance

• Video Resolution: Max. 3840 x 2160 @ 30 Hz (UHD)

Power

• Input Power Rating: 100–240V~; 50-60 Hz; 1A
• Consumption: AC110V:8.2W:49BTU, AC220V:8W:48BTU
• Power Supply: 1 x 3-prong AC Socket

Environmental Specifications

• Operating Temperature: 0-50°C
• Storage Temperature: -20-60°C
• Humidity: 0 - 80% RH, Non-condensing

Physical Properties

• Housing: Metal
• Weight: 2.18 kg (4.8 lb)
• Dimensions: 33.50 x 16.39 x 6.55 cm (13.19 x 6.45 x 2.58 in.)

Switches and LEDs

• Port Selection: 4 x Pushbuttons
• Reset: 1 x Semi-recessed Pushbutton
• Power Switch: 1 x Rocker
• LEDs: Power (Blue), On Line/Selected (KVM Port) (4 x Orange), Online / Selected (CAC Port) (4 x Green), Video (2 x Green), Key Lock (3 x Green)

USB CAC Port

• Port: 1 x USB Type-A Female (White; front panel)
