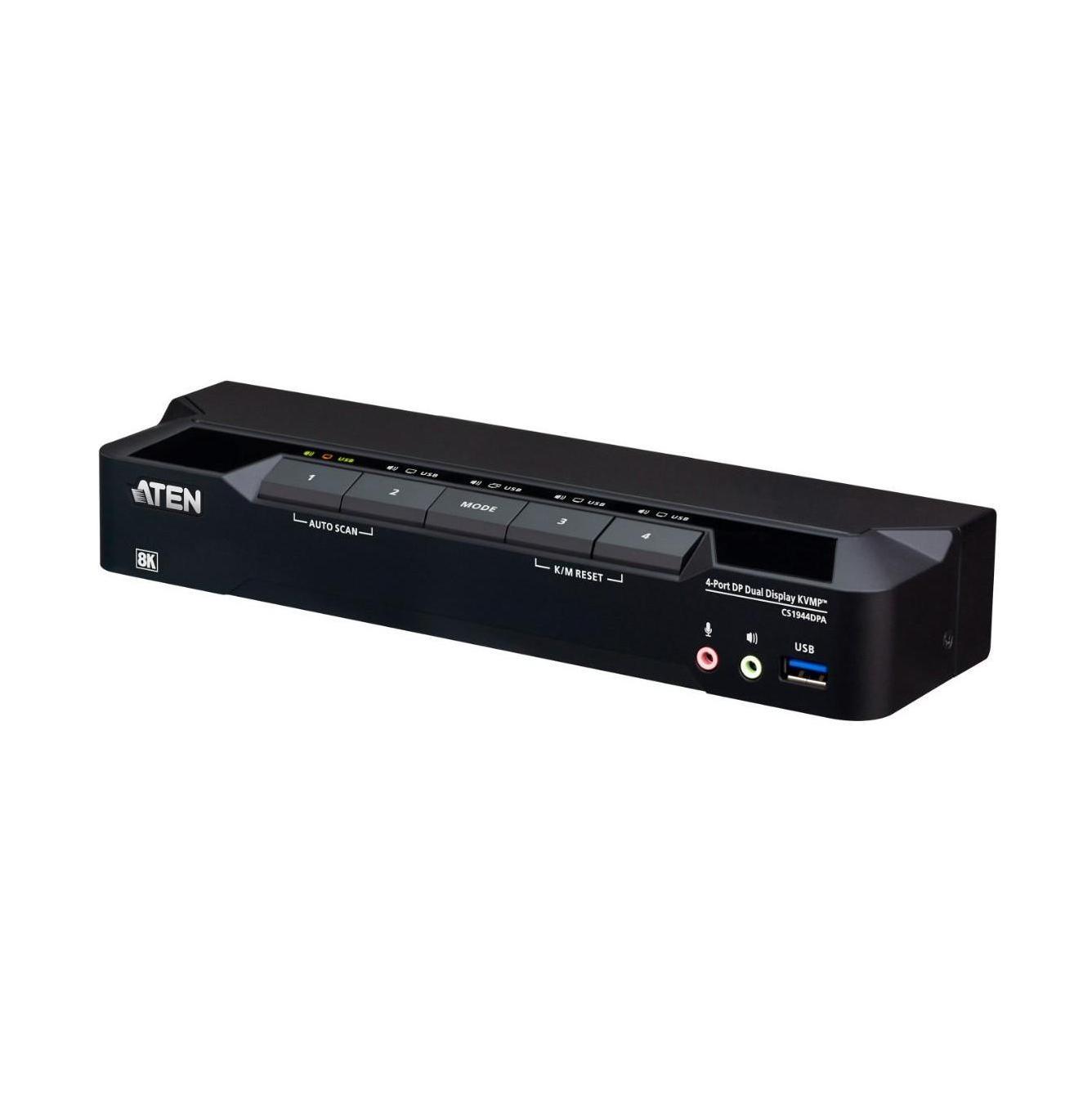

Aten 4-Port USB 3.0 DisplayPort KVMP Switch 8K Dual-Display

The Aten 4-Port USB 3.0 DisplayPort KVMP Switch 8K Dual-Display is a high-performance hardware solution designed for superior video quality and display capabilities. It supports up to four displays by connecting two Dual-Display KVM switches, enabling resolutions of up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz, and 4096 × 2160 @ 240 Hz. The switch features two USB 3.1 Gen 1 ports with SuperSpeed 5 Gbps transfer rates.

Display

• Supports up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz resolutions
• DisplayPort Dual-Mode (DP++) compliant with DP++ adapter required for full functionality
• MST (Multi-Stream Transport) support with compatible monitors or hubs
• HDCP and HDR 10+ compliant

Connectivity

• Two USB 3.1 Gen 1 ports with SuperSpeed 5 Gbps transfer rates
• Supports hot-plugging for easy device connection

Management and Switching Controls

• Control four DisplayPort computers using one USB keyboard and mouse
• Independent switching of KVM, USB, and Audio
• Console keyboard/mouse emulation/bypass support
• Power-on detection automatically switches to the next active computer
• Firmware upgradable for performance optimization and compatibility improvements
• Multilingual keyboard mapping supports English, Japanese, French, and German keyboards

Package Contents

• 1 x CS1944DPA 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch
• 8 x DisplayPort cables (1.5 m/5 ft)
• 4 x USB Type-A to Type-B cables (USB 3.0-A to USB 3.0-B; 1.8 m/6 ft)
• 4 x microphone cables (1.8 m/6 ft)
• 4 x speaker cables (1.8 m/6 ft)
• 1 x remote port selector
• 1 x power adapter
• 1 x user instructions

The Aten 4-Port USB 3.0 DisplayPort KVMP Switch 8K Dual-Display offers a streamlined, ready-to-use experience with all necessary cables and accessories included for hassle-free installation.
