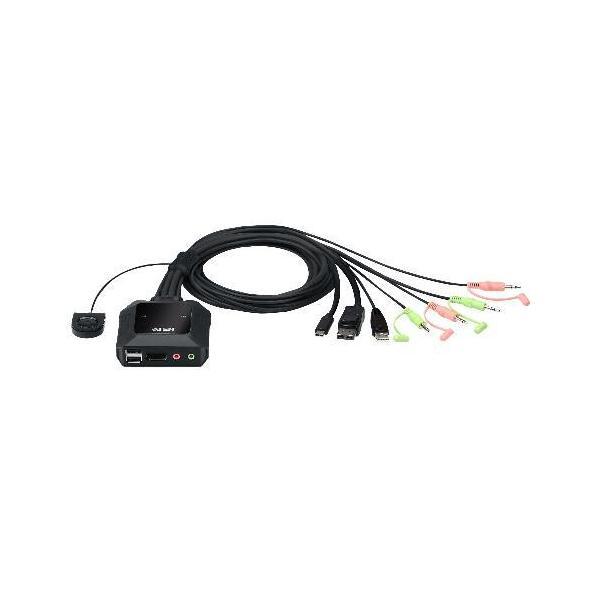

Aten 2-Port USB-C DisplayPort Hybrid KVM Switch

The Aten CS52DP 2-Port USB-C DisplayPort Hybrid KVM Switch is a control unit that allows you to switch between two computers using a single remote port selector pushbutton. It supports both USB-C and DisplayPort connections, enabling seamless multitasking between devices.

Display

• Vivid 4K viewing quality up to 4096 x 2160 @ 60Hz
• Supports resolutions up to 2560 x 1440 @ 144Hz

Connectivity

• DisplayPort Female Console Port (1)
• USB Type A Female Ports (2)
• 3.5mm Audio Jack Female (Green and Pink) for audio input/output
• USB Type C Male KVM Port (for CPU2)
• DisplayPort Male, USB Type A Male, 3.5mm Audio Jack Male (Green and Pink) for each computer port
• Optional Power Input: USB Micro Type B Female

Features

• Bus-powered mode with no need to install software or configure device
• Compact design ideal for space-saving installations
• Plug and play functionality
• Cable length of 1.2m for each KVM port, remote port selector cable is 1.8m long

Environmental Specifications

• Operating Temperature: 0 - 50°C
• Storage Temperature: -20 - 60°C
• Humidity: 0-80% RH, non-condensing

Physical Properties

• Housing Material: Plastic
• Weight: 0.30 kg (0.66 lb)
• Dimensions: 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)

The CS52DP is ideal for users who need quick and efficient control over multiple devices in any environment.
