Aten 16-Port USB HDMI Single Rail 18.5" LCD KVM Switch
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 480.6 mm |
|---|---|
| Width | 631 mm |
| Height | 42.8 mm |
Product Details
Product Details

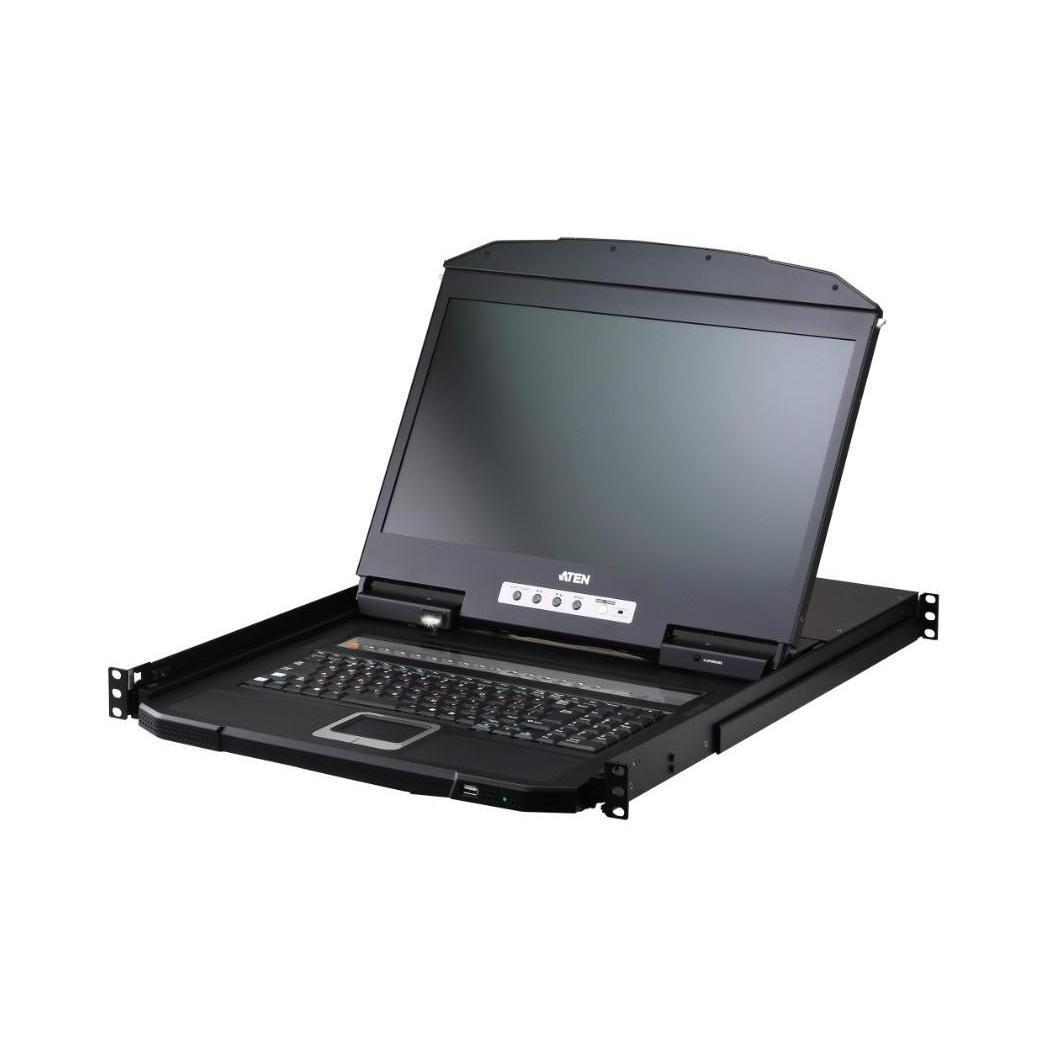

The ATEN CL3716 is a space-efficient 1U single-rail LCD KVM switch, ideal for environments with limited rack space such as control rooms across various industries. It integrates an 18.5" LED-backlit widescreen monitor, full keyboard, and touchpad into a compact sliding housing to maximise valuable rack space while providing reliable local access.
Display
- CL3716NW: 18.5" LCD screen with Full HD resolution of 1920 x 1080
- CL3716NX: 18.5" LCD screen with resolution of 1366 x 768
Performance
- Supports up to 256 computers via cascading (up to two levels)
- Direct USB and HDMI connections to 16 computers
- Broadcast Mode for simultaneous commands to multiple computers
- Auto Scan Mode for continuous monitoring of selected systems
Connectivity
- External console output via USB and HDMI
- Integrated LED illumination light for clear visibility in dimly lit settings
Management
- Password protection with two-level security
- Front-panel pushbuttons, hotkeys, and multilingual OSD for device management
- Dedicated, hot-pluggable USB mouse port (HID-only) on the front panel
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories.
Warranty
Warranty
Manufacturer warranty 24 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
