ASUS

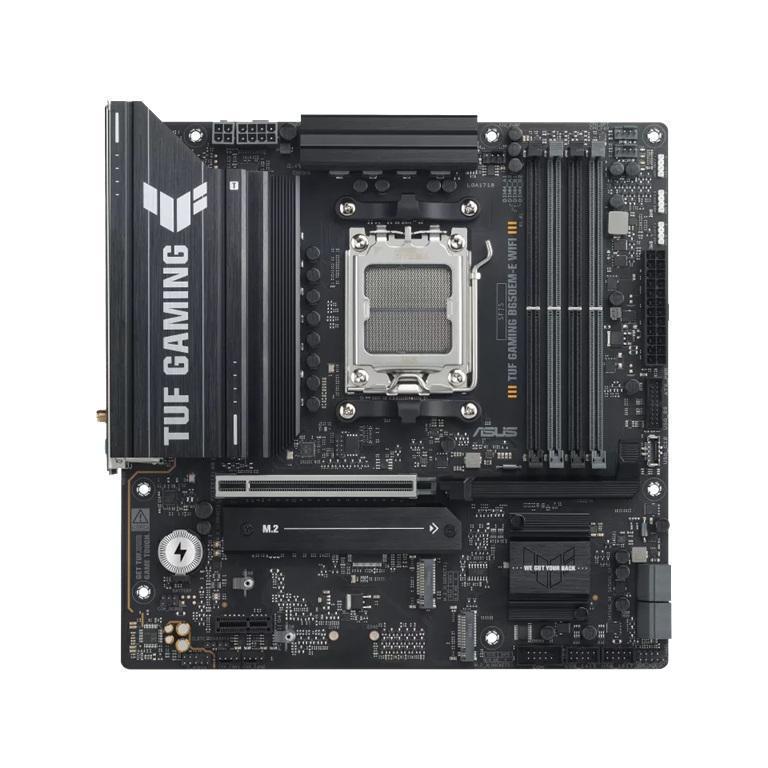

ASUS TUF GAMING B650EM-E WIFI AM5 DDR5 Micro-ATX Motherboard PCIe 5.0 3x M.2
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | PCIe, SATA, M.2 |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | Other, USB 3.1 gen 1, USB 3.2 gen 2x1 |
| USB Connector Type | USB Type-C, USB Type-A |
Case & Build
| Material | Metal |
|---|
Dimensions
| Length | 280 mm |
|---|---|
| Width | 280 mm |
| Height | 80 mm |
Other
| Series | TUF GAMING |
|---|---|
| Colour | Black |
Product Details
Product Details
The ASUS TUF GAMING B650EM-E WIFI is a robust micro-ATX motherboard designed for gaming and advanced AI applications. It supports the latest AMD Ryzen™ Desktop Processors with AM5 socket compatibility, offering up to 256GB of DDR5 memory at speeds up to 8000+MT/s (OC).
Display
- 2 x DisplayPort
- 1 x HDMI port
Performance
- Chipset: AMD B650
- Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x1 slot
Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- M.2_1 (Key M), type 2280: PCIe 5.0 x4 mode*
- M.2_2 (Key M), type 2280: PCIe 4.0 x4/x2 mode*
- M.2_3 (Key M), type 2242/2260/2280: PCIe 4.0 x4 mode
- RAIDXpert2 Technology for RAID configurations
Connectivity
- Ethernet: Realtek 2.5Gb Ethernet with TUF LANGuard
- Wireless: Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth® v5.2*
- Rear USB: 2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0
- Front USB: 1 x USB 5Gbps (Type-A), 2 additional USB 5Gbps ports, 4 additional USB 2.0 ports
Auditory Features
- Realtek 7.1 Surround Sound High Definition Audio CODEC with Jack-detection and Multi-streaming support
The motherboard is equipped with a comprehensive cooling system, military-grade components, and robust design elements for reliable performance.
Downloads
Downloads
- User manual · PDF
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
