ASUS

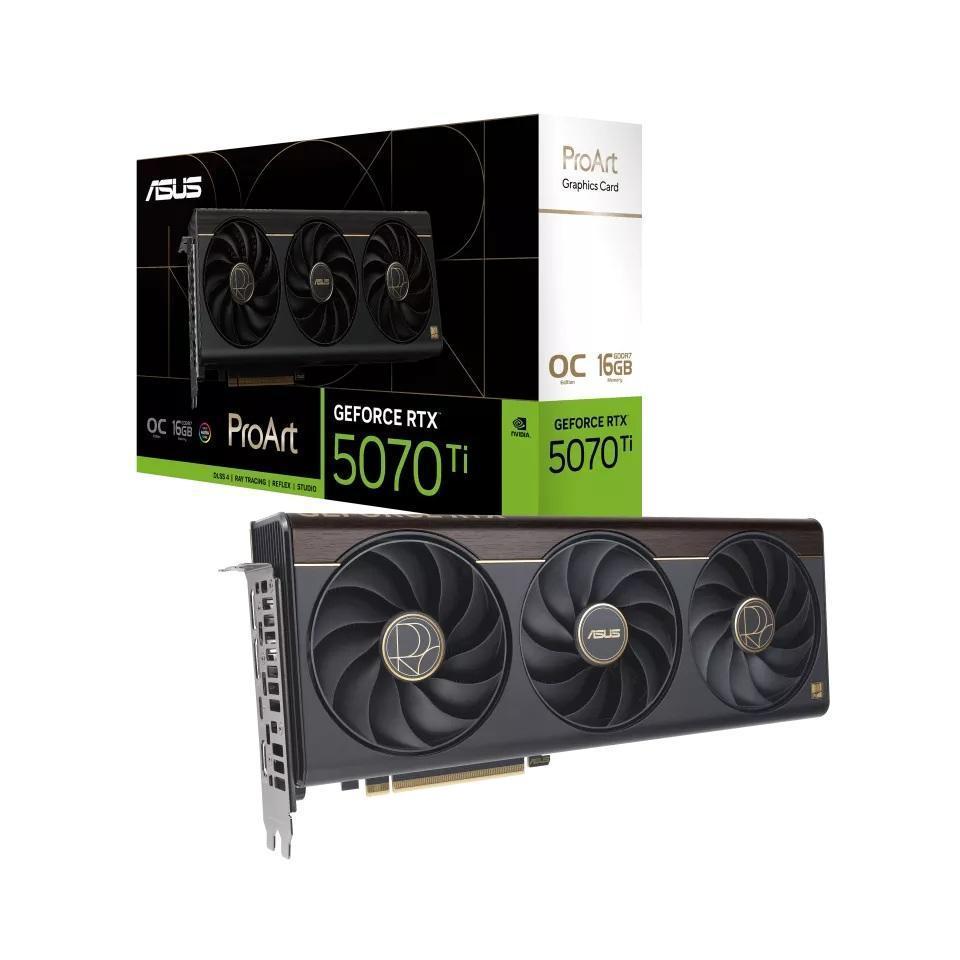

ASUS ProArt RTX 5070 Ti 16GB GDDR7 2610MHz PCIe 5.0 Graphics Card
Available in stock (22)
Couldn't load pickup availability
Specifications
Specifications
Memory
| Memory Capacity | 16 GB |
|---|
Graphics
| Graphics Card Type | Professional, Dedicated |
|---|
Ports & Connectivity
| Device Interface | HDMI, USB-C, Display port |
|---|
Cooling & Fans
| Cooling Technology | Fan |
|---|
Case & Build
| Material | Wood |
|---|
Dimensions
| Length | 304 mm |
|---|---|
| Width | 126 mm |
| Height | 50 mm |
Other
| Series | ProArt GeForce RTX™ 5070 Ti |
|---|---|
| Colour | Wood, Brown |
Product Details
Product Details
The ASUS ProArt RTX 5070 Ti 16GB GDDR7 is a high-performance graphics card designed for both compact and full-scale builds. It features an advanced cooling system with three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad to ensure optimal performance.
Display
- Digital Max Resolution: 7680 x 4320
- Interfaces: 1 x Native HDMI 2.1b, 2 x Native DisplayPort 2.1b, 1 x USB Type-C
- HDCP Support: Yes (2.3)
- Maximum Display Support: 4 simultaneous displays
Performance
- Graphic Engine: NVIDIA GeForce RTX 5070 Ti
- CUDA Core: 8960
- Engine Clock (OC mode): 2610MHz
- Boost Clock (Default mode): 2588MHz
- Memory Speed: 28 Gbps
- Bus Standard: PCI Express 5.0
- OpenGL Support: OpenGL 4.6
Storage and Memory
- Video Memory: 16GB GDDR7
- Memory Interface: 256-bit
Connectivity
- Power Connectors: 1 x 16-pin Slot
- Recommended PSU: 850W
The card also includes a USB Type-C port for enhanced versatility in content creation workflows. It features a wood-patterned laminate trim and an Aura-lit logo, providing a refined aesthetic.
Accessories Included
- 1 x Speedsetup Manual
- 1 x PROART Graphics Card Holder
- 1 x ASUS Velcro Hook Loop
- 1 x Thank You Card
- 1 x Adapter Cable (1 to 3)
Note: The wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For tailored suggestions, please use the “Choose By Wattage” feature on our PSU product page.
