ASUS

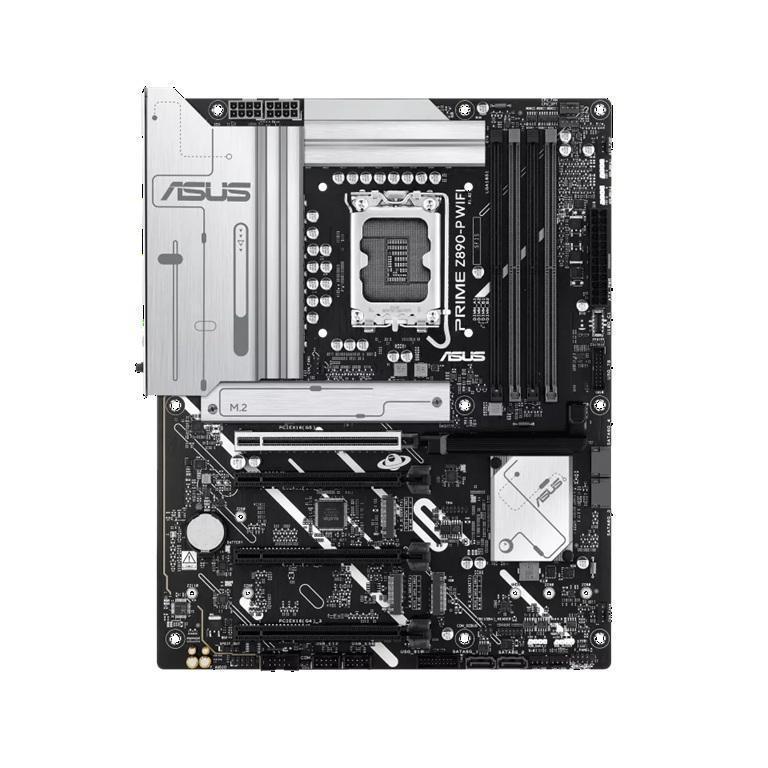

ASUS PRIME Z890-P WIFI-CSM ATX Motherboard 192GB DDR5 1x PCIe 5.0 4x M.2 4x SATA
Available in stock (27)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | LGA 1851 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | PCIe, SATA, M.2 |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | Other, USB 2.0 |
| USB Connector Type | USB Type-A, USB Type-C |
Dimensions
| Length | 358 mm |
|---|---|
| Width | 74 mm |
| Height | 274 mm |
Product Details
Product Details
The ASUS PRIME Z890-P WIFI-CSM is an ATX motherboard designed to support the latest Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket. It features robust power delivery and comprehensive cooling solutions, along with advanced software and firmware for performance tuning.
Display
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supporting video outputs in DP mode up to 8K@60Hz and in TB4 mode up to 23.8Gbps total bandwidth
Performance
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (depending on CPU type)
- Chipset: Intel® Z890
- Memory: Up to 256GB DDR5, max speed 8666+MT/s (OC), Non-ECC, Un-buffered DIMM
- Expansion Slots:
- 1 x PCIe 5.0 x16 slot
- 2 x PCIe 4.0 x16 slots (supporting x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage
- Total of 4 M.2 slots and 4 SATA 6Gb/s ports
- M.2_1: Key M, type 2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2: Key M, type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3: Key M, type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4: Key M, type 2242/2260/2280 (supports PCIe 4.0 x4 SATA modes)
Connectivity
- Ethernet: 1 x Realtek 2.5Gb Ethernet
- Built-in Wi-Fi and Bluetooth connectivity
Other Features
- BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS with ASUS LANGuard
- Manageability: WOL by PME, PXE
- Operating System Support: Windows 11 (22H2 later)
The PRIME Z890-P WIFI-CSM is designed for advanced PC DIY builders and users seeking high performance and robust connectivity options.
Downloads
Downloads
- User manual · PDF
Warranty
Warranty
Manufacturer warranty 36 Months
