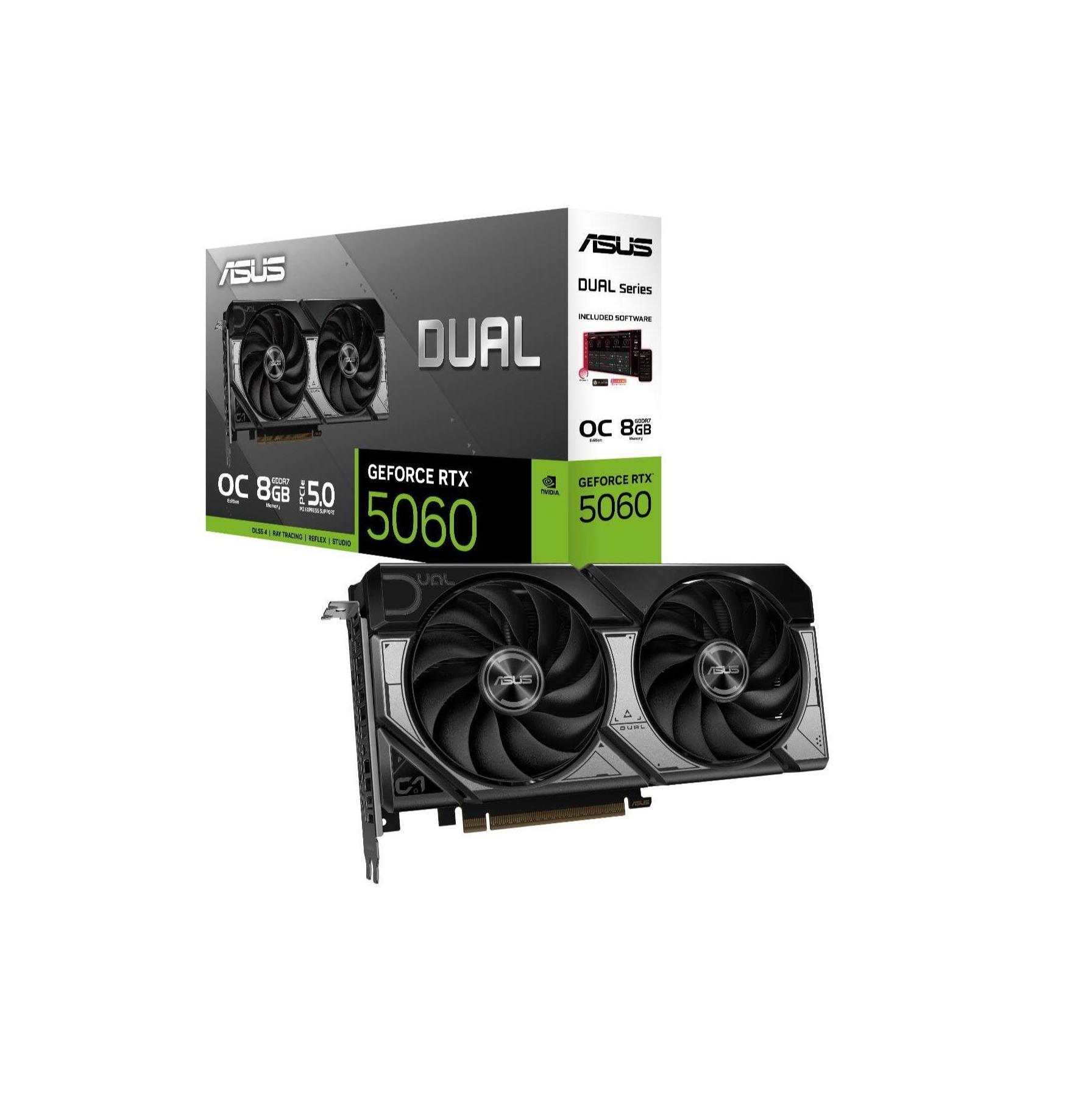

ASUS DUAL-RTX5060-O8G RTX 5060 8GB GDDR7 2535MHz Graphics Card
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Graphics Card Type | Dedicated |
|---|
Ports & Connectivity
| Device Interface | HDMI, Display port, PCIe |
|---|
Cooling & Fans
| Cooling Technology | Fan, Active, Heat sink, Dual-fan |
|---|
Power
| Power Source | Other |
|---|
Product Details
Product Details
The ASUS DUAL-RTX5060-O8G is a high-performance graphics card featuring an NVIDIA GeForce RTX 5060 GPU with 8GB of GDDR7 memory and a boost clock speed of up to 2535MHz in default mode. It supports the latest display technologies including HDMI 2.1b and DisplayPort 2.1b, offering resolutions up to 7680 x 4320.
Display
- HDMI 2.1b: Yes (x1)
- DisplayPort 2.1b: Yes (x3)
- Maximum Display Support: 4
- HDCP Support: Yes (2.3)
Performance
- Graphics Engine: NVIDIA GeForce RTX 5060
- CUDA Cores: 3840
- AI Performance: 623 TOPs
- Engine Clock (OC Mode): 2565MHz
- Boost Clock (Default Mode): 2535MHz
- Memory Speed: 28 Gbps
- Bus Standard: PCI Express 5.0
Storage
- Video Memory: 8GB GDDR7
- Memory Interface: 128-bit
Connectivity
- Power Connectors: 1 x 8-pin Slot
The card measures 228 x 123 x 50 mm (8.98 x 4.84 x 1.97 inches) and is compatible with small form factor systems. A recommended power supply of at least 550W is suggested for optimal performance.
Accessories include a Speedsetup Manual and Thank You Card, while software such as ASUS GPU Tweak III and the latest GeForce Game Ready Driver can be downloaded from the support site.
