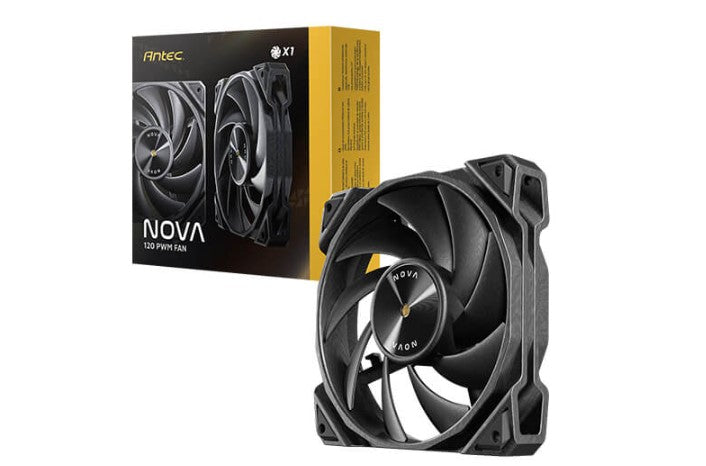

Antec Nova Black 120mm PWM 3-Phase Speed Controller Fan With Controller

The Antec Nova Black is a high-performance 120mm PWM fan designed for optimal cooling in various hardware environments. It features a three-phase PWM speed controller that allows switching modes based on different scenarios and stops operation when the PWM signal drops below 6%. The fan includes a six-pole drive motor, which provides greater output power and torque while reducing energy loss and noise.

Display

• No display features

Performance

• Fan Speed: L 300~1500±10% | M 350~2400±10% | H 400~3200±10% RPM
• Airflow: L 44 | M 70.59 | H 95.32 CFM
• Air Pressure: L 1.48 | M 3.72 | H 6.56 mmH₂O
• Fan Noise Level: L 21.5 | M 30.8 | H 38.7 dB(A)
• Lifespan: 50,000 hours / 40℃

Storage

• No storage features

Connectivity

• Connector: 4-pin PWM
• Rated Voltage: DC 12 V
• Operation Voltage: DC 6.0-13.2 V
• Rated Current: 0.35A (MAX)

Mechanical Features

• Bearing Type: FDB
• Metal Shaft for enhanced structural strength and superior dynamic balance
• Neodymium magnet at the bottom of the fan frame, perpendicular to the shaft, reducing vibration during high-speed operation
• Dustproof design encloses internal drive components, preventing dust or debris from entering and corroding electronic parts
• Exterior geometric ribs for structural enhancement and reduced resonance

The Antec Nova Black is an excellent choice for users seeking a reliable and efficient cooling solution with advanced features.
