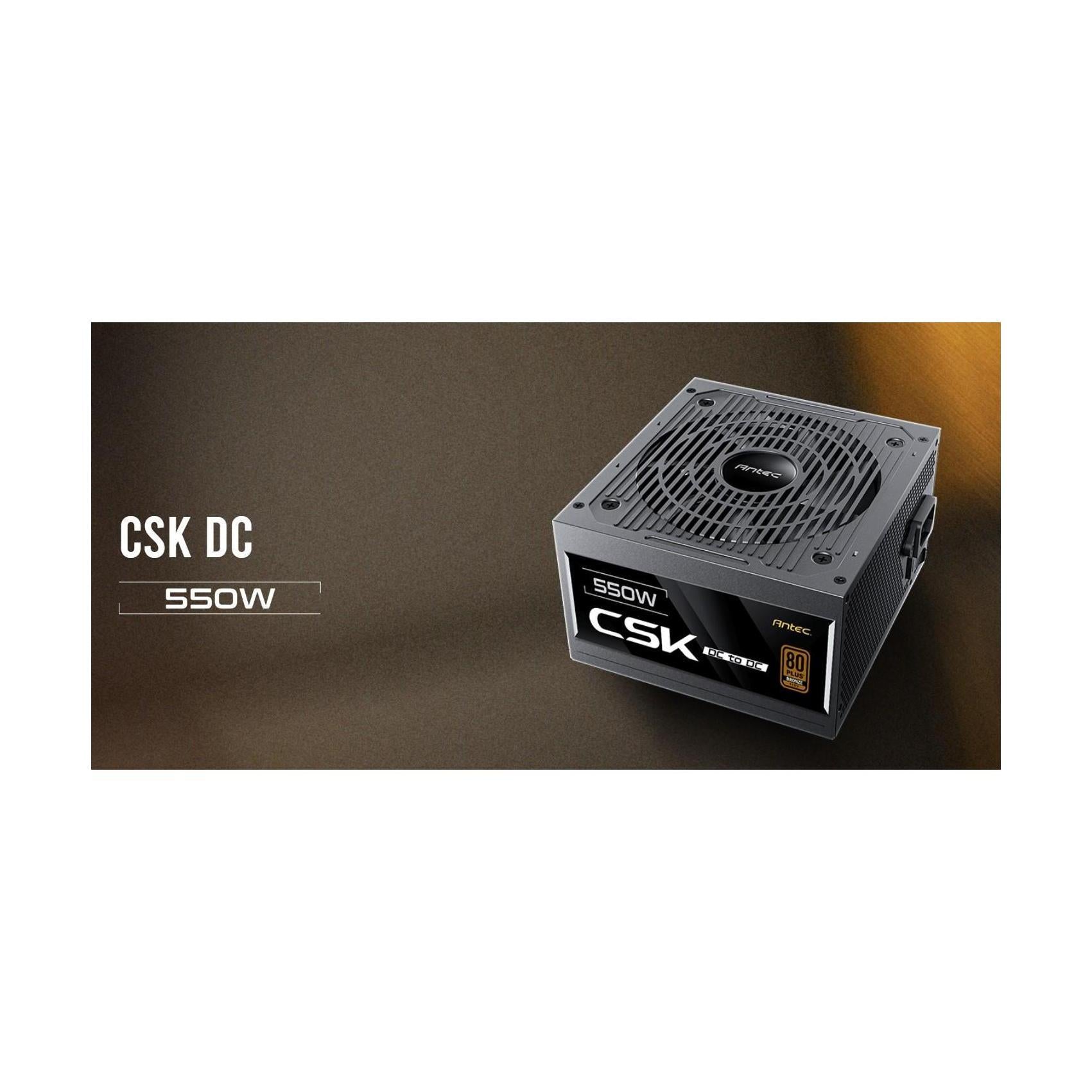

Antec CSK550DC 80+ Bronze 2x PCIE 5.1 Continuous Power DC to DC Flat Cables 5...

The Antec CSK550DC is a high-quality power supply designed for efficiency and performance. It features an advanced DC-to-DC architecture with active PFC and includes the CircuitShield™ suite of industrial-grade protections to ensure reliable operation in any environment.

Performance

• Type: ATX 12V 2.52
• Power Capacity: 550W continuous power output
• Fan: Quiet 120mm Silent Fan
• Certifications: 80 PLUS® BRONZE, cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES/BIS
• Protection Features: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
• Power Good Signal: 100-500ms

Input and Output Specifications

• Input Voltage: 100V-240V
• Input Current: 12A max
• Input Frequency Range: 50Hz-60Hz
• Output Capacity: 550W
• Operation Temperature: 0~40°C
• Connector Compatibility:
  • 1 x 24(20+4)pin MB
  • 2 x 8(4+4)pin CPU
  • 2 x 8(6+2)pin PCI-E
  • 6 x SATA
  • 3 x Molex

Dimensions and Weight

• Unit Box Dimensions: 140(L)*150(W)*86(H) mm
• Shipping Box Dimensions: 545mm(L)*425mm(W)*230mm(H)
• Net Weight: 1.60KG
• Gross Weight: 1.90KG

Warranty

• Warranty Period: 5 years
