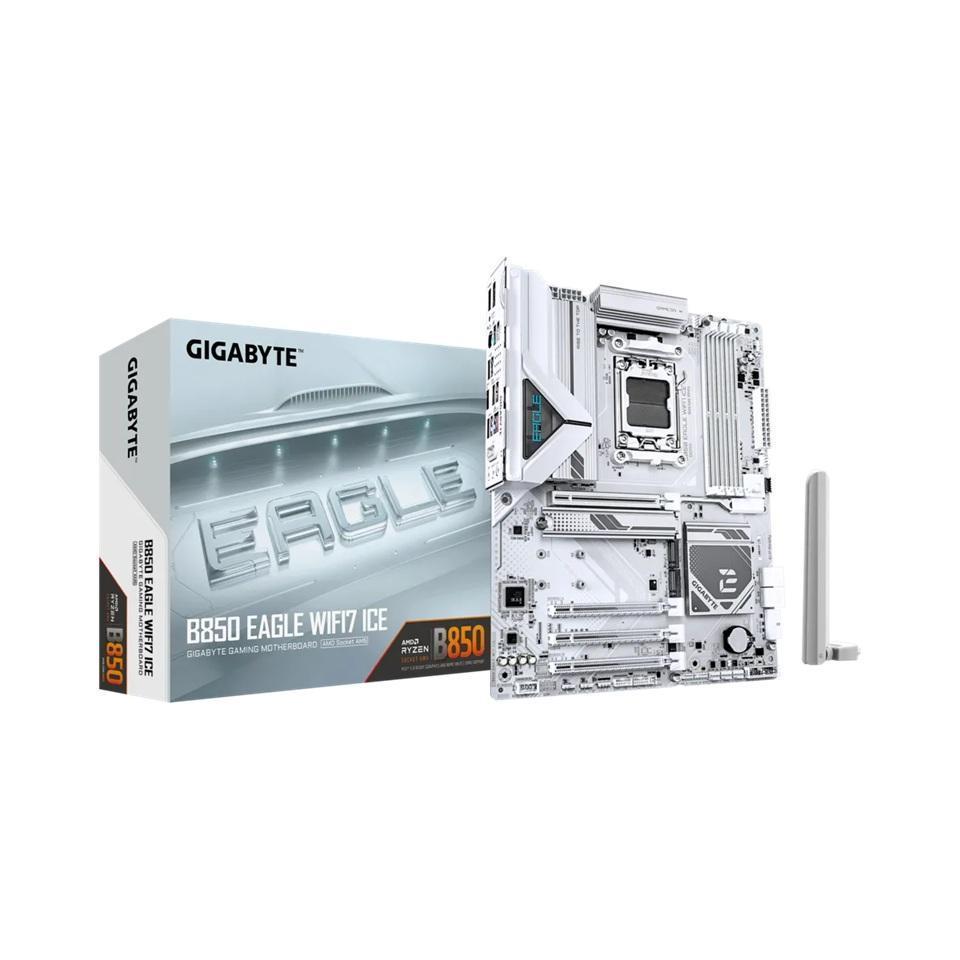

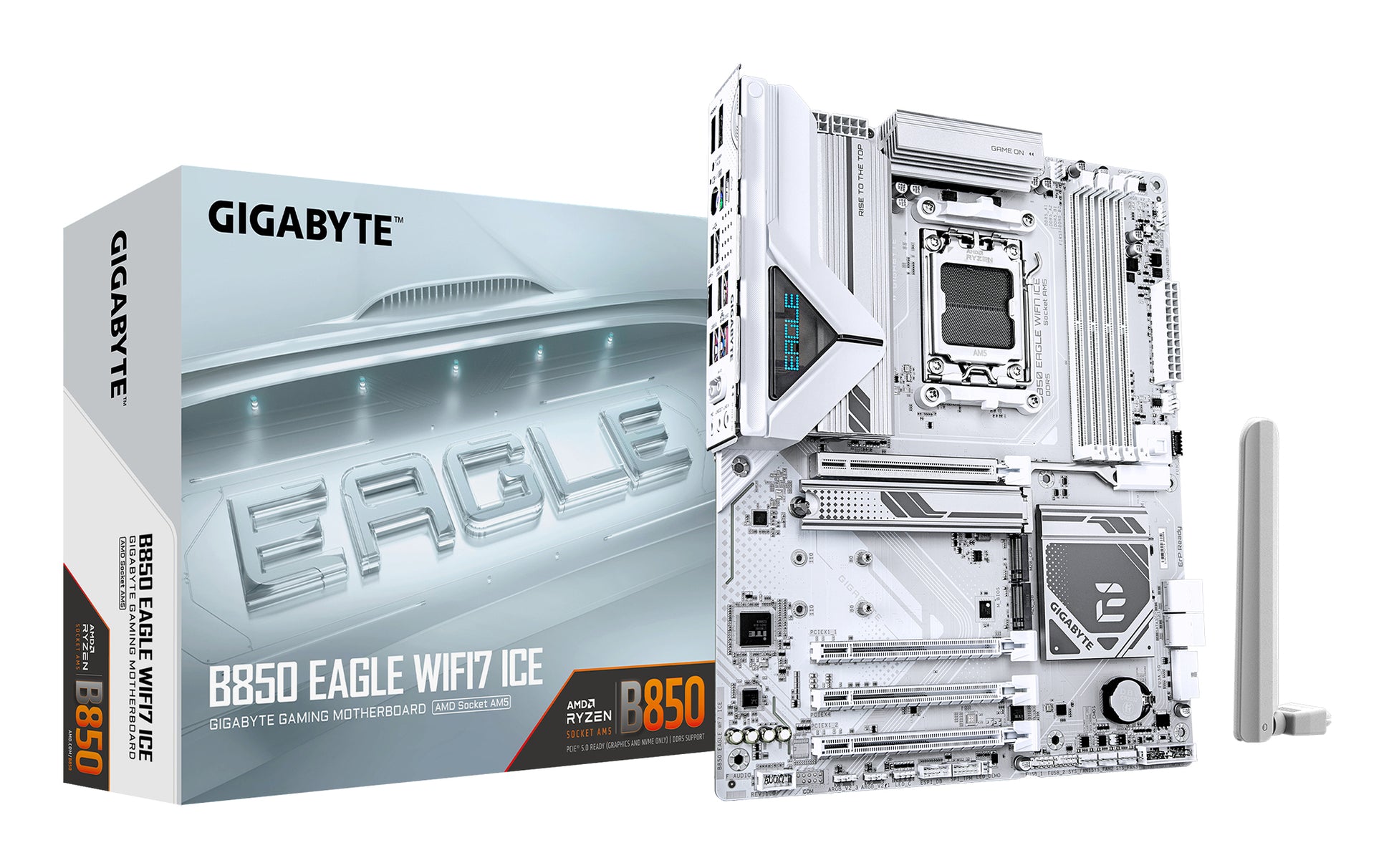

Gigabyte B850 EAGLE WF7 AMD AM5 DDR5 4xPCIe x16 3xM.2 6xUSB 3.2 2.5GbE LAN

The Gigabyte B850 EAGLE WF7 is a high-performance motherboard designed for AMD AM5 sockets with support for Ryzen™ 9000, 8000, and 7000 series processors. It features:

Display

• 1 x DisplayPort supporting up to 3840x2160@144 Hz (DP 1.4)
• 1 x HDMI port supporting up to 4096x2160@60 Hz (HDMI 2.1)

Performance

• Supports DDR5 memory up to 8200 MT/s with a maximum of 256 GB capacity in dual-channel configuration.
• Onboard AMD Radeon™ Graphics supporting DisplayPort and HDMI interfaces.

Connectivity

• Realtek® 2.5GbE LAN chip for high-speed networking.
• Integrated Realtek® Wi-Fi 7 RTL8922AE with Bluetooth 5.4 support.

Expansion Slots

• 1 x PCI Express x16 slot supporting PCIe 5.0 or 4.0 depending on the CPU model.
• Chipset supports additional PCIe slots at varying speeds.

Storage

• 3 x M.2 connectors for NVMe SSDs, with support for PCIe 5.0 and 4.0 interfaces based on the CPU.
• 4 x SATA 6Gb/s connectors.

USB Ports

• 1 x USB Type-C® port (USB 3.2 Gen 1).
• 6 x USB 3.2 ports, including red-labelled Gen 2 ports on the back panel.
• 4 x USB 2.0/1.1 ports available through internal headers.

The Gigabyte B850 EAGLE WF7 offers robust connectivity options and high-speed data transfer capabilities for demanding computing tasks.
