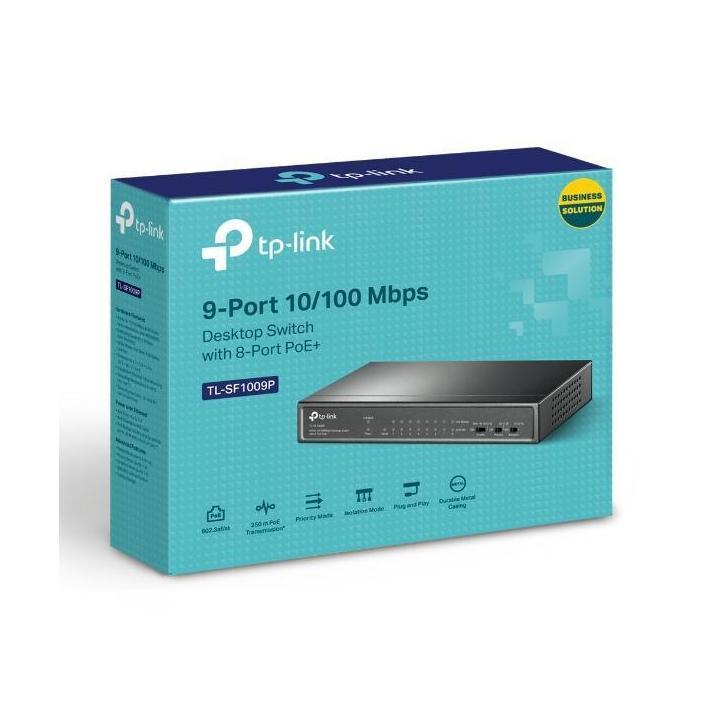

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch 8x PoE+ 65W Total Power
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 282 mm |
|---|---|
| Width | 224 mm |
| Height | 72 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The TP-Link TL-SF1009P is a versatile desktop switch designed for efficient network management and power delivery. It features 9 ports, including 8 PoE+ ports that support both data transfer and power supply over individual cables.
Performance
- PoE Power: Up to 65 W total power across all 8 PoE+ ports (up to 30 W per port)
- Data Transmission Range: Up to 250 m under Extend Mode
- Packet Forwarding Rate: 1.3392 Mpps
- Switching Capacity: 1.8 Gbps
Connectivity
- Ports: 9× 10/100 Mbps RJ45 ports (8× PoE+)
- Network Media: Supports UTP category 3, 4, 5 and EIA/TIA-568 STP cables
- Fan Quantity: Fanless design
- Auto Negotiation: Yes
- AUTO MDI/MDIX: Yes
Security and Management
- Prioritisation Mode: Ensures high priority for ports 1–2, guaranteeing quality of sensitive applications.
- Isolation Mode: Allows one-click client traffic separation for enhanced security and performance.
- Extend Mode: Supports up to 250 m data and power transmission range.
Power Supply
- External Power Adapter: Output: 53.5VDC / 1.31A
- Max Heat Dissipation: 262.84 BTU/h (with 65 W PD connected)
- Physical Security Lock: Yes
The TP-Link TL-SF1009P is a plug-and-play solution that requires no configuration, making it ideal for small to medium-sized networks.
Warranty
Warranty
Manufacturer warranty 60 Months
