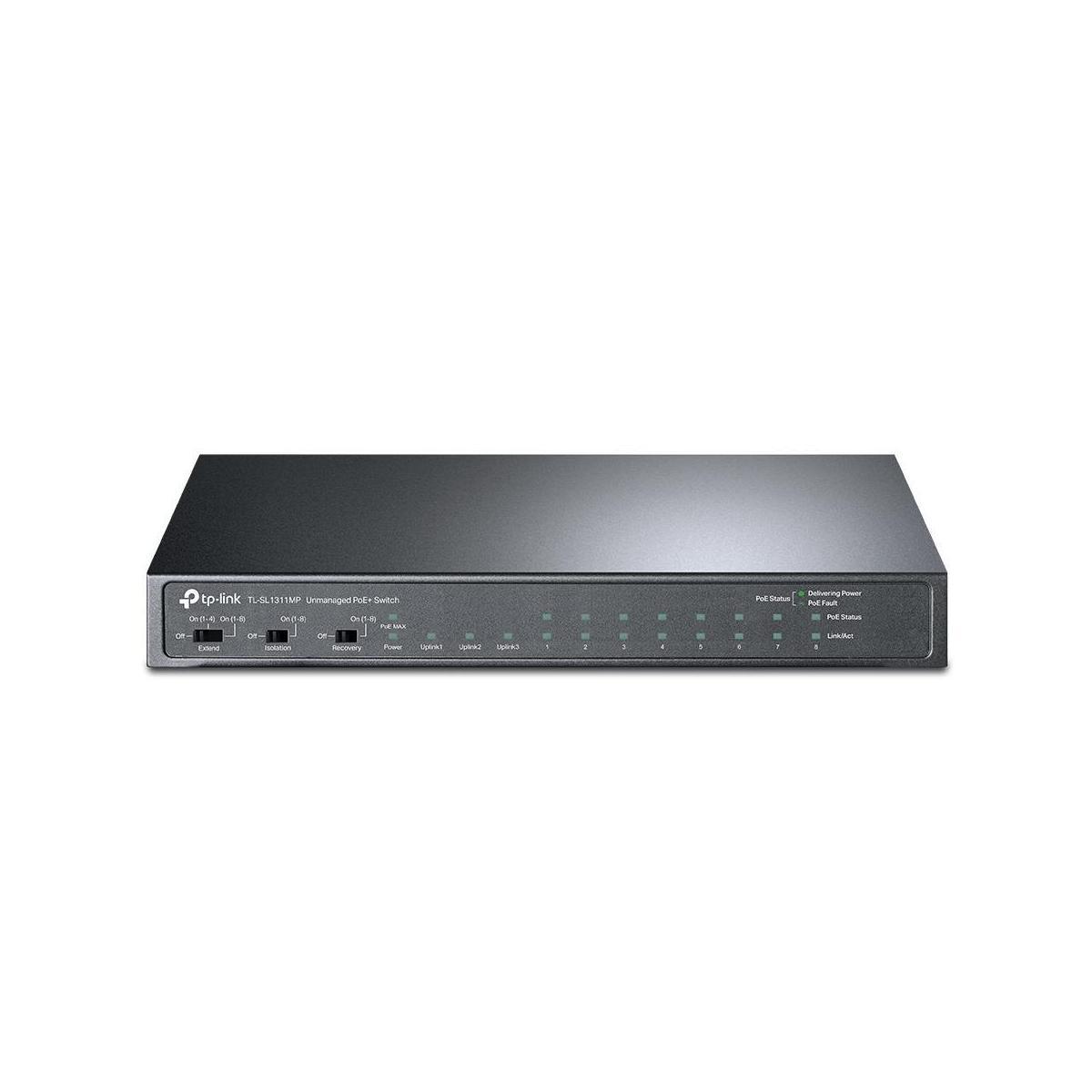

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit PoE+ Desktop Switch

The TP-Link TL-SL1311MP is a versatile desktop switch designed for efficient network management and power delivery. It features 8× 10/100 Mbps PoE+ ports and 2× Gigabit RJ45 ports along with a single Gigabit SFP port, offering flexibility in connectivity options.

Display

• No display screen included

Performance

• PoE Power up to 30 W per port
• Total PoE power supply of up to 124 W for all ports combined
• Data and power transmitting range up to 250 m under Extend Mode
• Packet Forwarding Rate: 5.6544 Mpps
• Switching Capacity: 7.6 Gbps
• Jumbo Frame Support: 16 KB
• Fanless Design for silent operation and reduced power consumption

Storage

• No storage capacity specified

Connectivity

• 8× 10/100 Mbps PoE+ Ports (IEEE 802.3af/at compliant)
• 2× Gigabit RJ45 Ports
• 1× Gigabit SFP Port
• AUTO Negotiation and AUTO MDI/MDIX supported
• Ethernet Media: UTP Category 3, 4, 5 (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• External Power Supply: 53.5VDC / 2.43A

Security and Management

• Isolation Mode for enhanced security and performance
• PoE Auto Recovery to ensure stable operation of PoE devices
• Extend Mode Button for up to 250 m data and power transmission range

Physical Security

• Physical lock included

Dimensions

• Dimensions: 209 × 126 × 26 mm

Power Consumption and Heat Dissipation

• No PD connected: Max Power Consumption 5.95 W, Max Heat Dissipation 20.29 BTU/h
• With 124 W PD connected: Max Power Consumption 140.92 W, Max Heat Dissipation 480.54 BTU/h

The TP-Link TL-SL1311MP is plug-and-play with no configuration required, making it easy to set up and use for both home and office environments.
