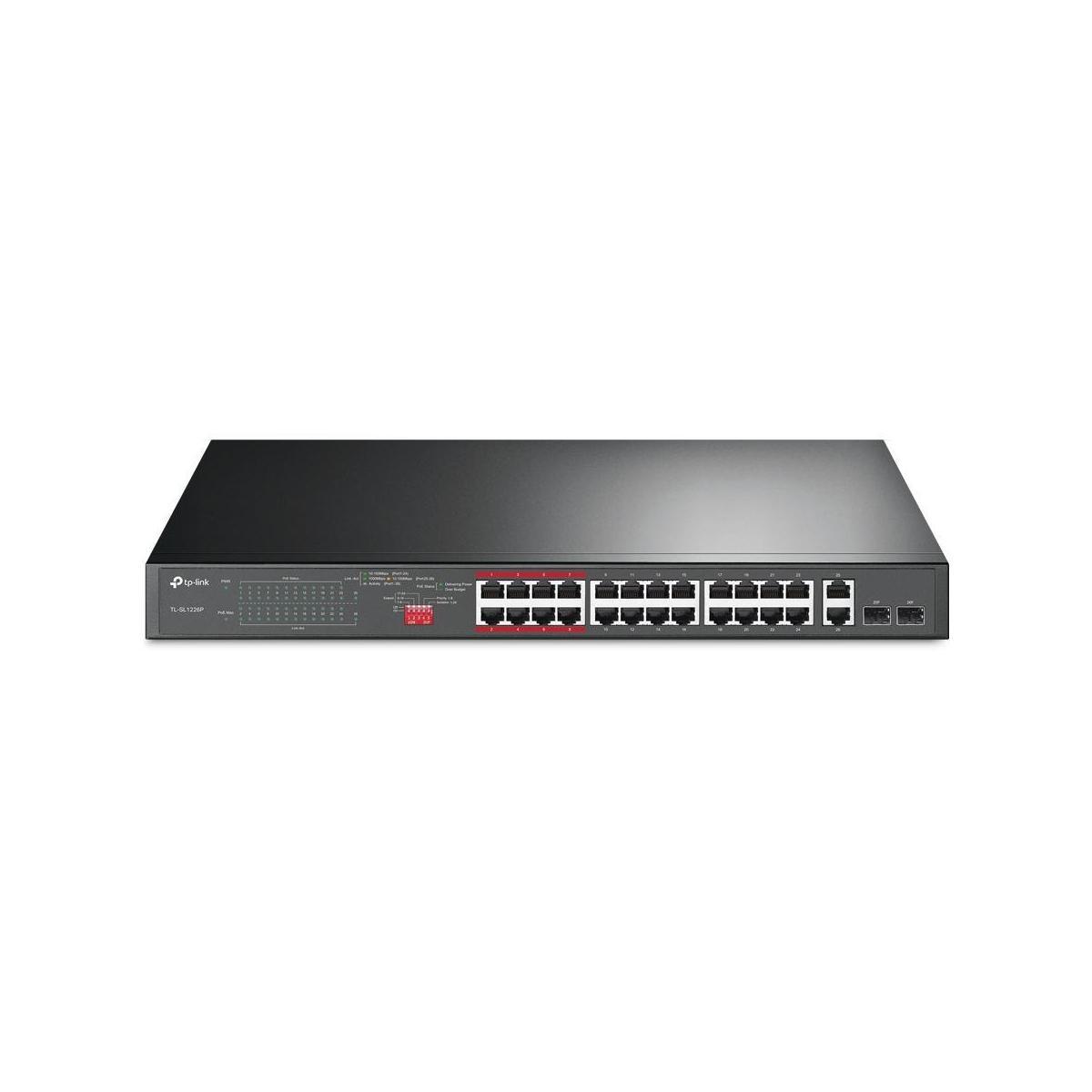

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch ...

The TP-Link TL-SL1226P is a versatile unmanaged PoE+ switch designed for easy network setup and reliable performance. It features 24 PoE+ 10/100 Mbps RJ45 ports, two Gigabit RJ45 ports, and two combo Gigabit SFP slots.

Performance

• PoE Power Budget: Up to 30 W per port; total of 250 W for all PoE ports
• Data and power transmission range up to 250 m under Extend Mode, ideal for surveillance systems
• Built-in Priority Mode ensures high priority for ports 1–8, guaranteeing quality for sensitive applications like video monitoring
• Isolation Mode allows one-click client traffic separation for enhanced security and performance

Connectivity

• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: 2 fans
• Physical Security: Lock included for securing the switch

Power Supply and Heat Dissipation

• Supply: 100-240 VAC, 50/60 Hz
• Max Power Consumption:
  • No PoE devices connected: 18.32 W (220/50 Hz)
  • With full PoE load of 250 W: 294 W (220/50 Hz)
• Max Heat Dissipation:
  • No PoE devices connected: 62.47 BTU/h
  • With full PoE load of 250 W: 1002.54 BTU/h

Software Features

• Extend Mode for up to 250 m PoE power supply and data transmission range
• Prioritises ports 1–8 with Priority Mode
• Isolation Mode allows one-click client traffic separation
• PD Detection and Intelligent Power Supply
• Auto-learning and auto-aging of MAC addresses
• IEEE802.3x Flow Control for efficient data transfer

The TL-SL1226P is plug-and-play, requiring no configuration or installation.
