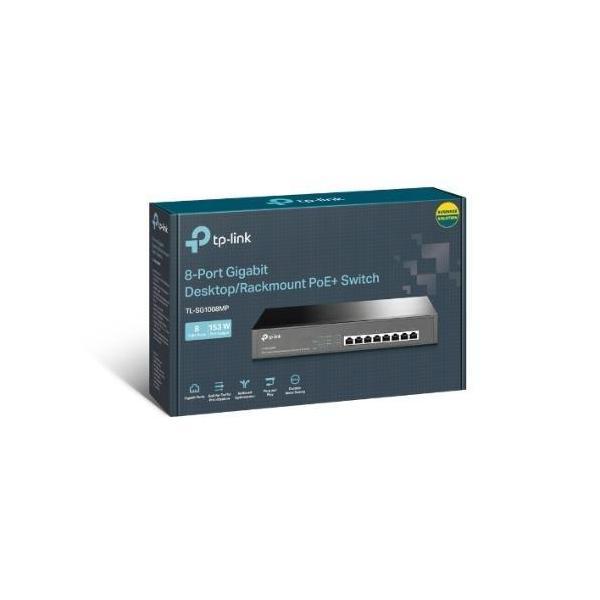

TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Desktop/Rack Switch

The TP-Link TL-SG1008MP is an 8-port gigabit desktop/rackmount switch with integrated PoE+ support, designed to simplify network setup and expansion for both home and office environments.

Display

• No display screen

Performance

• Data transfer rate: 10/100/1000Mbps
• Total backplane bandwidth: 16Gbps
• MAC address table capacity: 4K entries
• Buffer size: 1.5Mbits

Connectivity

• 8 x 10/100/1000Mbps RJ45 ports
• PoE+ compliant ports (IEEE 802.3at/af)
• Total PoE power budget: 126W
• Maximum power per port: 30W

Power and Environmental

• Input voltage range: 100-240VAC, 50/60Hz
• Fan quantity: 1 (no fan required)
• Dimensions: 11.6 x 7.1 x 1.7 inches (294 x 180 x 44 mm)
• Rack mountable design included
• Maximum power consumption:
  • No PoE devices connected: 9.89W at 220V/50Hz
  • With full PoE load (126W): 140.67W at 110V/60Hz
• Heat dissipation:
  • No PoE devices connected: 33.74 BTU/h
  • With full PoE load (126W): 492.56 BTU/h

Certifications and Features

• FCC, CE, RoHS certified
• PoE+ compatible with IEEE 802.3af/at compliant devices
• Plug-and-play setup without configuration required

The TL-SG1008MP comes complete with a power cord, installation guide, rackmount kit, and rubber feet for versatile mounting options.
