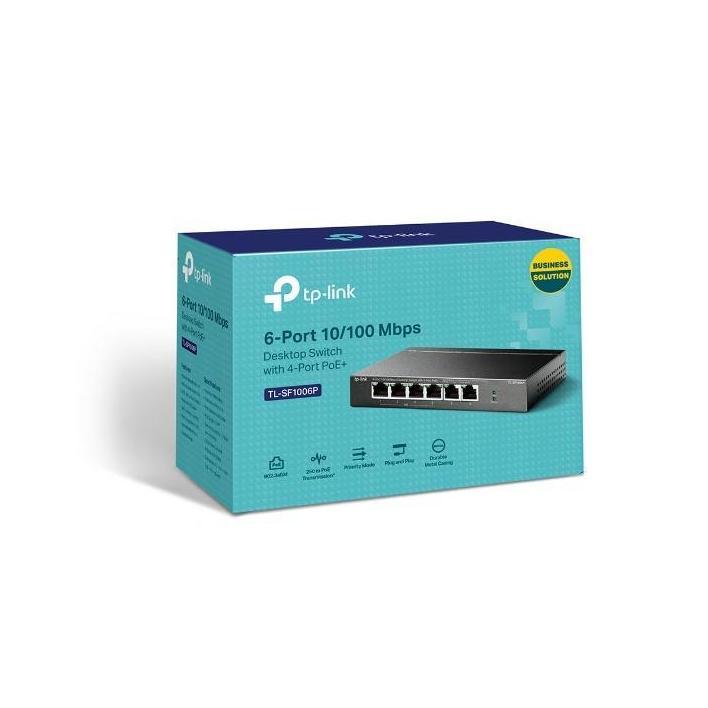

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch 4x PoE+ 67W Total Power

The TP-Link TL-SF1006P is a compact and efficient desktop switch designed for versatile networking needs. It features six 10/100 Mbps RJ45 ports with four of them supporting PoE+ (IEEE 802.3af/at compliant) to provide both data transfer and power over Ethernet.

Display

N/A

Performance

• PoE Power up to 67 W for all PoE ports*
• PoE Power up to 30 W per PoE port
• Packet Forwarding Rate: 0.8928 Mpps
• Switching Capacity: 1.2 Gbps

Storage

N/A

Connectivity

• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support PoE+)
• AUTO Negotiation and AUTO MDI/MDIX
• Network Media: 10BASE-T, 100BASE-TX
• Fanless design
• PoE Power up to 67 W total power for all PoE ports*

Software Features

• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

Physical Specifications

• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Dimensions (W x D x H): 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Certification and Environment

• Certifications: FCC, CE, RoHS
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)

*Extend Mode allows for up to 250m data and power transmitting range.
