MSI MEG X570 UNIFY PRO Ryzen AM4 AMD All Black ATX Motherboard
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Processor
| CPU Type | AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 |
|---|
Memory
| Memory Slot Type | 288-pin DIMM |
|---|---|
| Memory Channel | Dual Channel |
| Max. Memory Supported | 128 GB |
| Memory Technology | DDR4 |
Graphics
| SLI Support | Yes |
|---|---|
| CrossFireX Support | Yes |
Storage
| SATA RAID | 0/1/10 |
|---|
Motherboard
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Internal Connectors | 1x 2-pin LED Power Input, 1x 24-pin ATX Main Power Connector, 1x 3-pin CORSAIR Connector, 1x 4-pin CPU Fan Connector, 1x 4-pin RGB LED Connector, 1x 4-pin Water-Pump Connector, 1x Chassis Intrusion Connector, 1x Clear CMOS Jumper, 1x Debug Code LED, 1x Front Panel Audio Connector, 1x Power Button, 1x Reset Button, 1x TPM Module Connector, 1x USB 3.2 Gen 2 Type-C Port, 2x 3-pin RAINBOW LED Connectors, 2x 8-pin ATX 12V Power Connectors, 2x System Panel Connectors, 2x USB 2.0 Connectors, 2x USB 3.2 Gen 1 Connectors, 4x EZ Debug LEDs, 4x SATA 6Gb/s Connectors, 5x 4-pin System Fan Connectors |
| Back I/O Ports | 1 x Clear CMOS Button, 1 x Flash BIOS Button, 1 x LAN (RJ45) Ports, 1 x Optical S/PDIF OUT Connector, 1 x PS/2 Keyboard/Mouse Combo Port, 1 x USB 3.2 Gen 2 Type C Port, 1 x Wi-Fi/Bluetooth Module, 2 x USB 2.0 Ports, 2 x USB 3.2 Gen1 Ports, 3 x USB 3.2 Gen 2 Type A Ports, 5 x OFC Audio Jacks |
Ports & Connectivity
| USB Type-C | Yes |
|---|---|
| USB 2.0 | 2 |
| Audio Output | High Definition Audio (8-channel) |
| WLAN | 802.11a/b/g/n/ac/ax Wireless LAN |
Audio
| Channels | 7.1 |
|---|
Power
| Power Connector | 1 x 24-pin ATX Main Power Connector, 2 x 8-pin ATX 12V Power Connectors |
|---|
Other
| Form Factor | ATX |
|---|---|
| Mounting | 9 Mounting Holes |
Product Details
Product Details

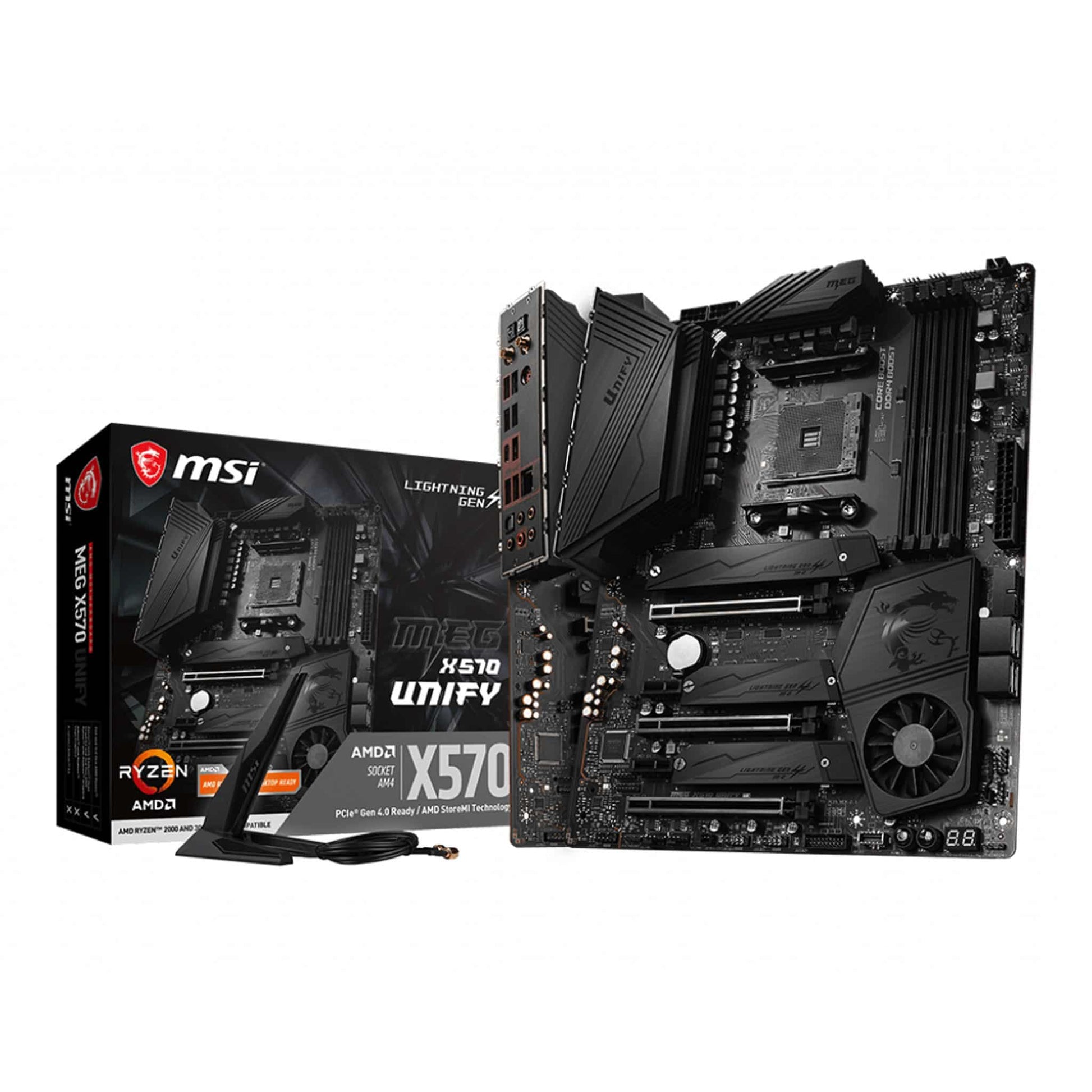

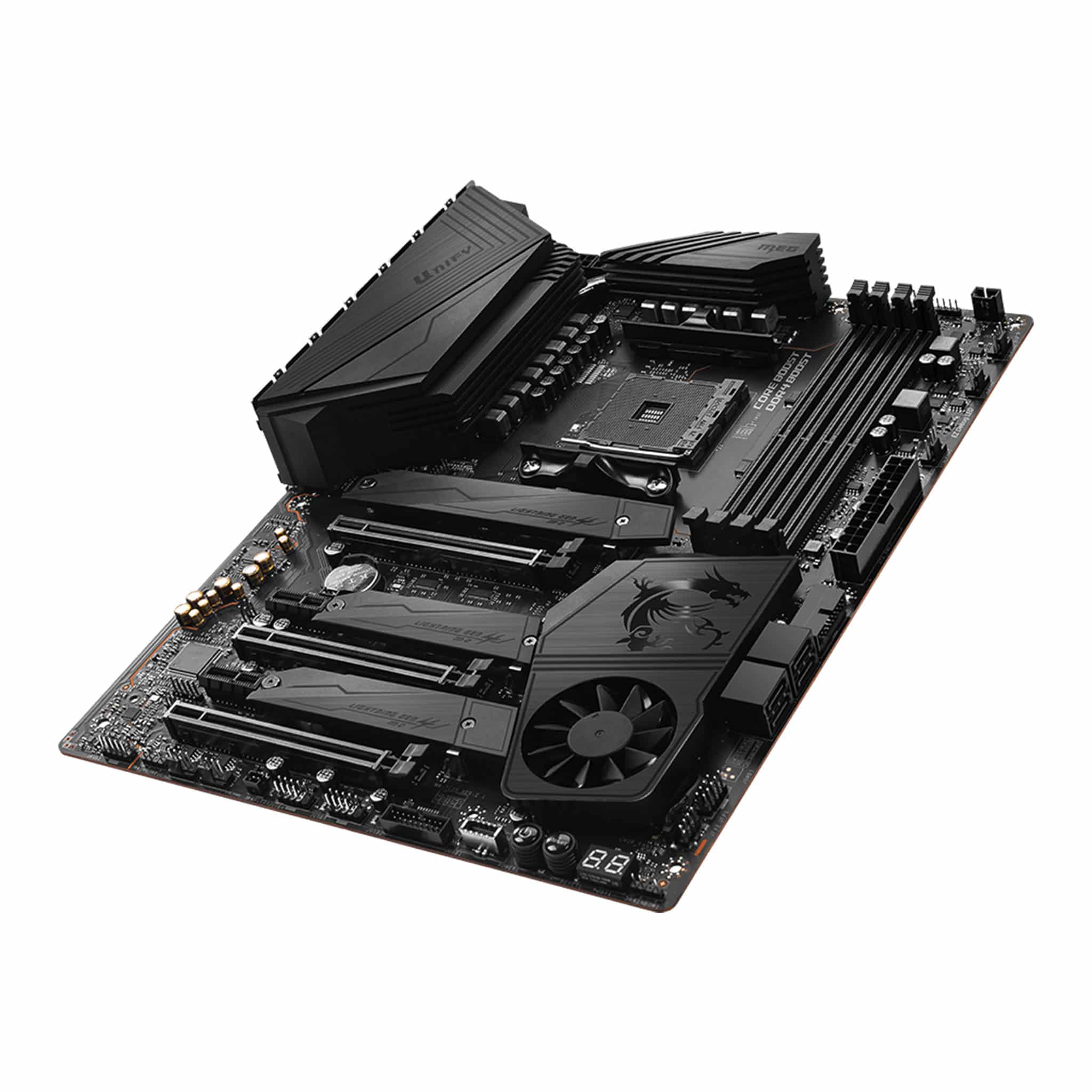

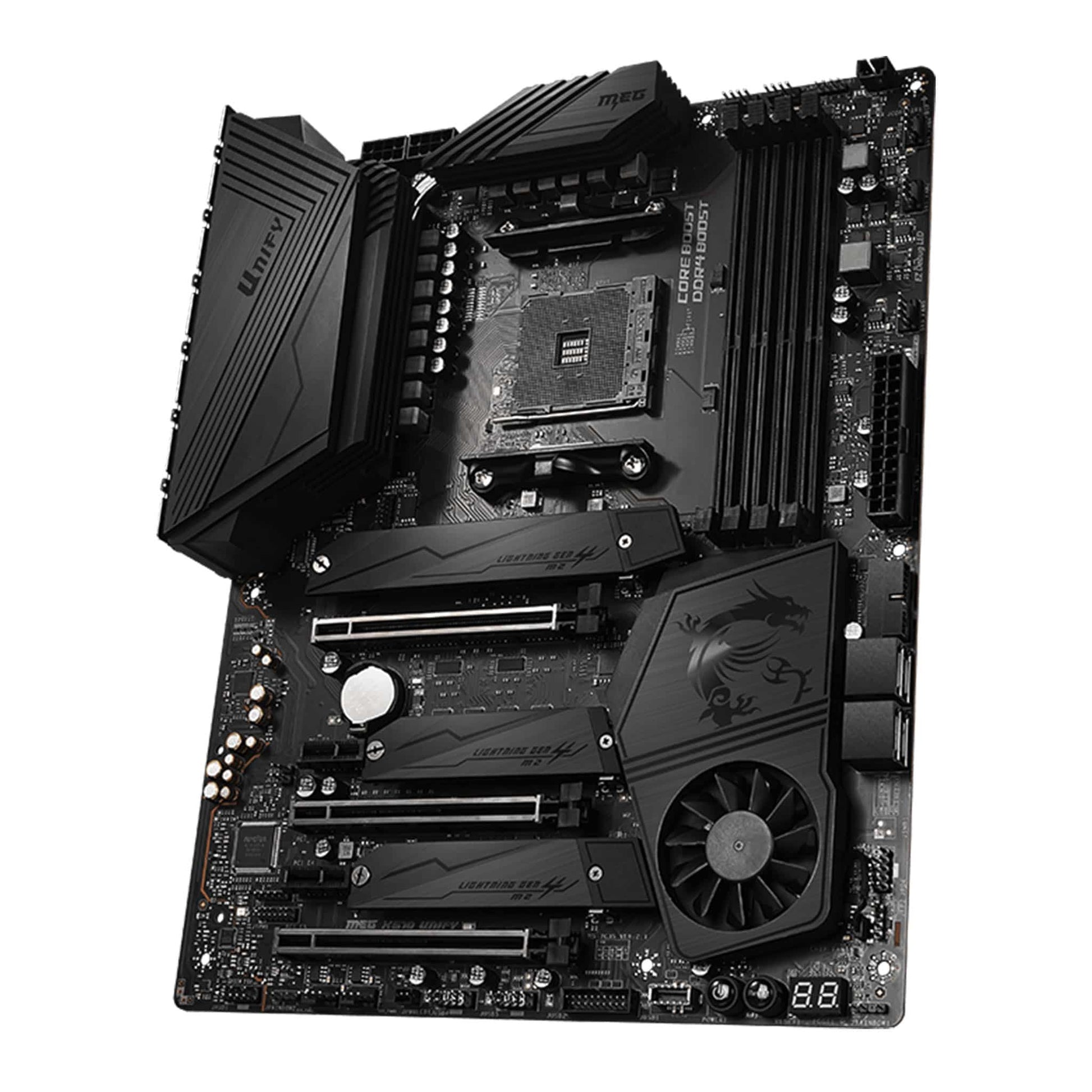

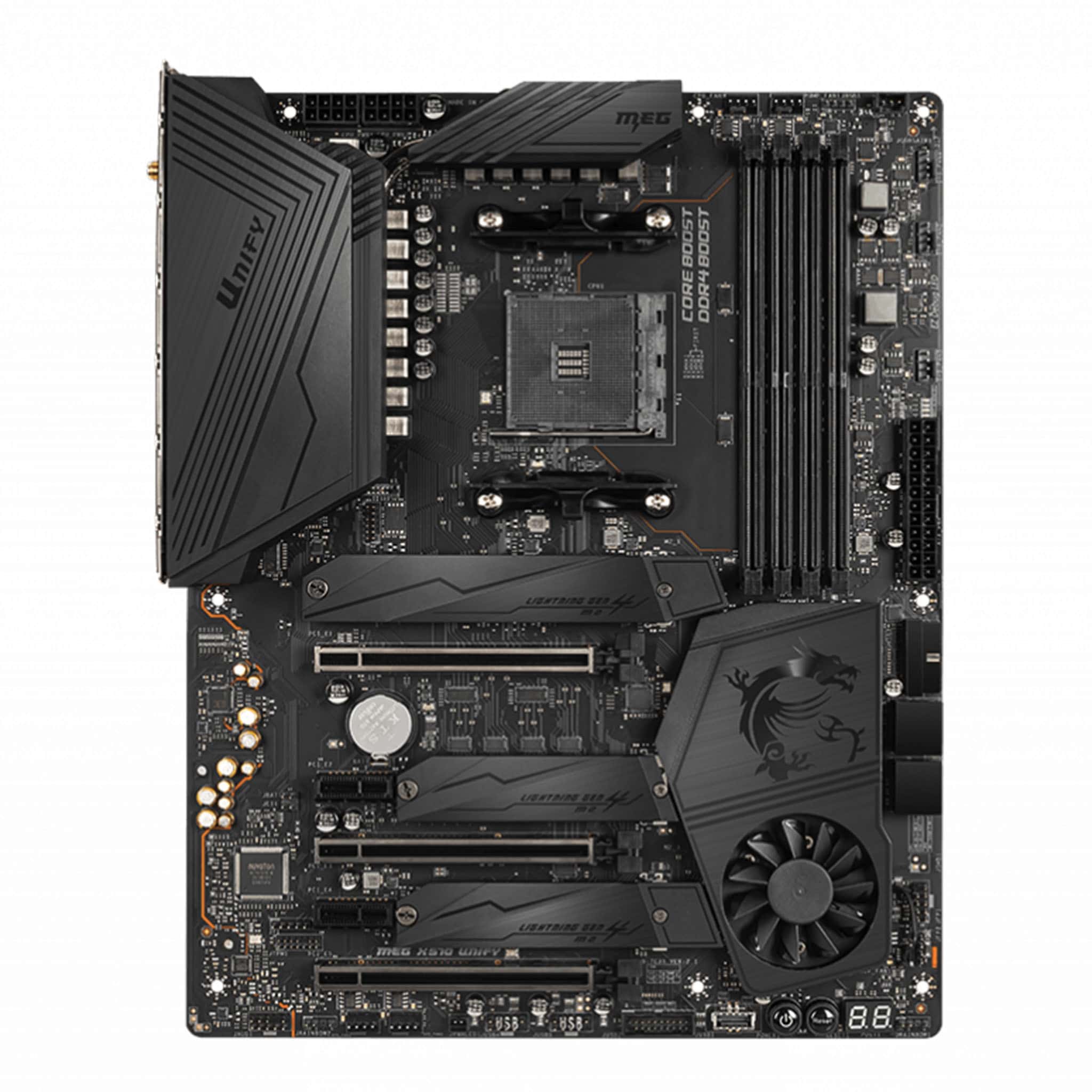

The MSI MEG X570 UNIFY ATX Motherboard features a simple all black design free from RGB LEDs found on most popular gaming motherboards. Designed for hardcore gamers and enthusiasts, the UNIFY provides exceptional value for money without compromising on build quality.
Key Features & Benefits
- Compatible with AM4 socket 2nd and 3rd Generation AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Generation AMD Ryzen™ with Radeon™ Graphics Desktop Processors
- Compatible with DDR4 Memory, up to 5000+ (OC) MHz
- Pure Black Aluminium Cover with Extended Heatsink
- Super Fast Gaming: AMD Turbo USB 3.2 Gen2, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, AMD StoreMI Technology, PCIe 4.0
- High-speed networking: 2500 Mbps Gaming LAN, Wi-Fi 6 plus support for MU-MIMO and BSS colour technology
- Frozr Heatsink Design: Patented fan and double ball bearings provide you with unrivalled cooling performance
- Audio Boost HD: Isolated HD audio with dedicated processor combining ESS audio, DAC and amplifier, delivering game-changing sound and exciting gameplay
- Pre-installed I/O Shielding: Greater EMI protection and convenience for installation
Transfer Data in a Flash
Modern Wi-Fi 6 & Bluetooth Connectivity
Cutting edge wireless connectivity supports MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps.
High-speed Networking
2.5 Gbps onboard LAN plus gaming LAN manager, providing you with a remarkable online gaming experience.
DDR4 Boost
Fully isolated DIMM slots deliver clear data signals for the best gaming and overclocking performance.
Lightning Gen 4 Technology
Modern Gen4 PCI-E and M.2 technology with up to 64GB/s bandwidth for maximum transfer speeds.
Built to Keep Cool Under Pressure
Pure Black Aluminium Cover and Extended Heatsink
Aluminium extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors run at full speed.
M.2 Shield Frozr
Strengthened built-in M.2 thermal technology that keeps M.2 SSDs guarded while preventing throttling and making them run faster.
Zero Frozr Technology
AI tuning system that auto-adjusts fan speed by chipset temperature, eliminating fan noise by stopping fans in low-load situations.
Frozr Heatsink Design
Designed with a patented fan and double ball bearings to provide excellent gaming performance.
Solid Components Built to Last
Core Boost Technology
With dual 8-pin power connectors and superior layout design, the MSI UNIFY is ready for unleashing maximum performance.
Server-grade PCB
Server-grade PCB provides high performance PCIe 4.0 and long-lasting system stability without compromise.
IR Digital PWM
High-quality components with IR digital PWM, 60A power stage and titanium choke II assure your system runs smoothly under the most extreme conditions.
PCIe Steel Armour
Steel armour protects your PCI cards against bending plus EMI shielding for better performance, stability and strength.

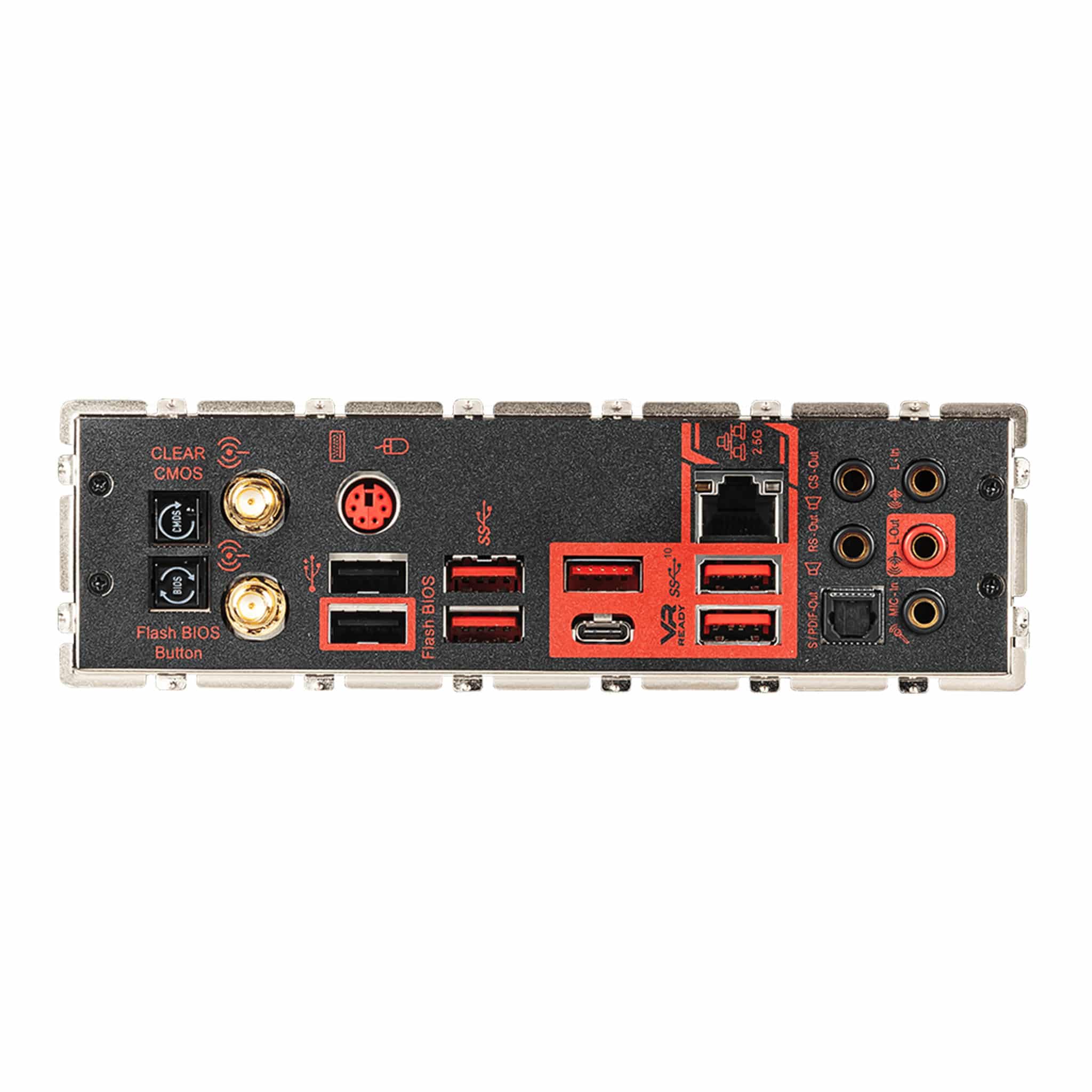

Back I/O Ports
- Clear CMOS Button
- Wi-Fi / Bluetooth Antenna Connectors
- PS/2 Gaming Device Port
- Realtek 2.5G LAN
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0 Ports
- USB 3.2 Gen1 Ports
- USB 3.2 Gen2 Ports Type A+C
- USB 3.2 Gen2 Ports
DIY Friendly
Designed for the DIY PC builder with heaps of great features for easy setup and usage including a pin-header keep-out zone, easy access SATA & USB locations and plenty of cooling solutions — allowing DIY builders and modders to pick and choose PC components.
Stay Cool and Sustain Performance
Cooling is essential for a high performance PC to sustain intense workloads. MEG X570 UNIFY features a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control let builders tune their system cooling the way they like it.
Troubleshooting Friendly Design
MSI motherboards are designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.
Compatibility & Testing
MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products.
Performance Enhancing Apps
Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.
