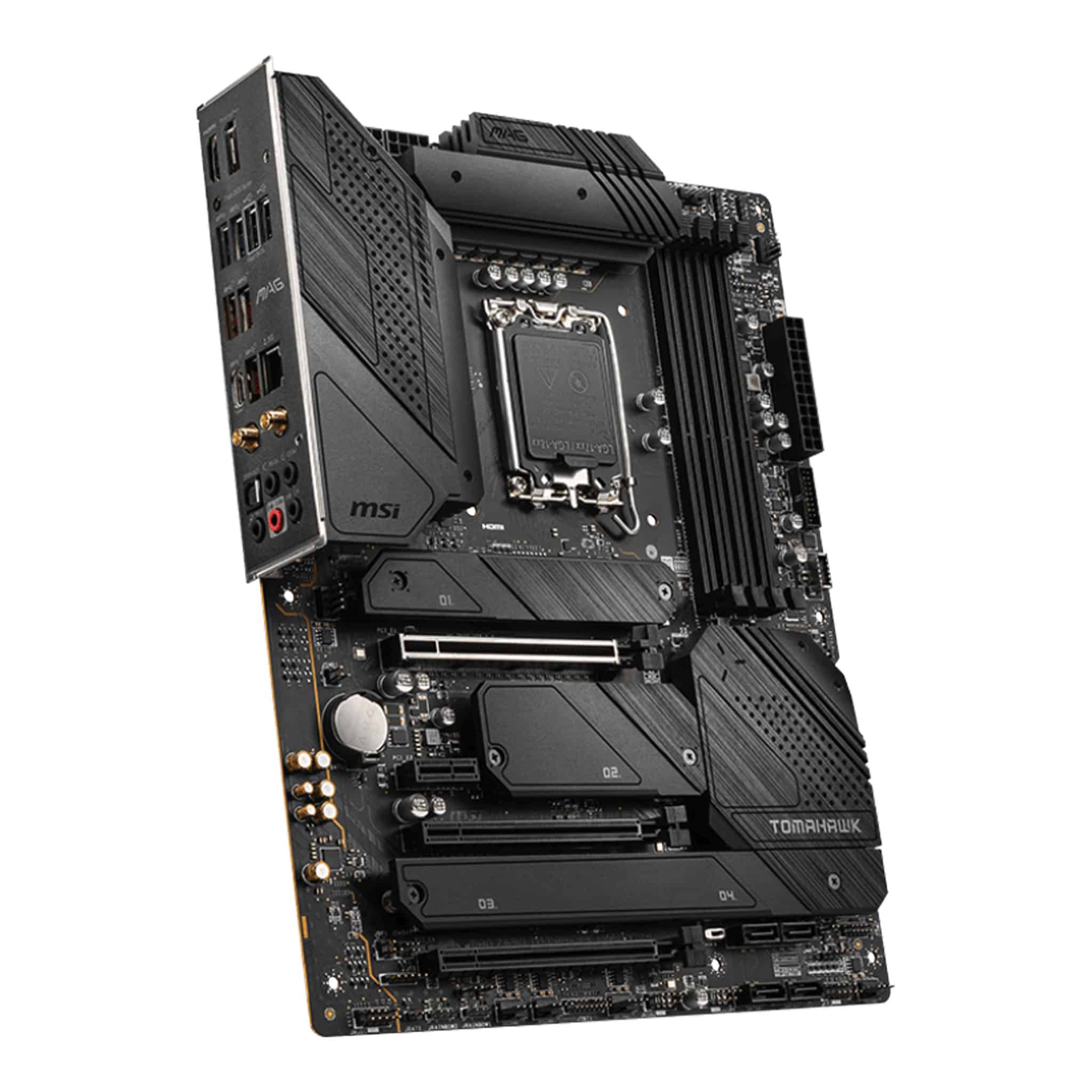

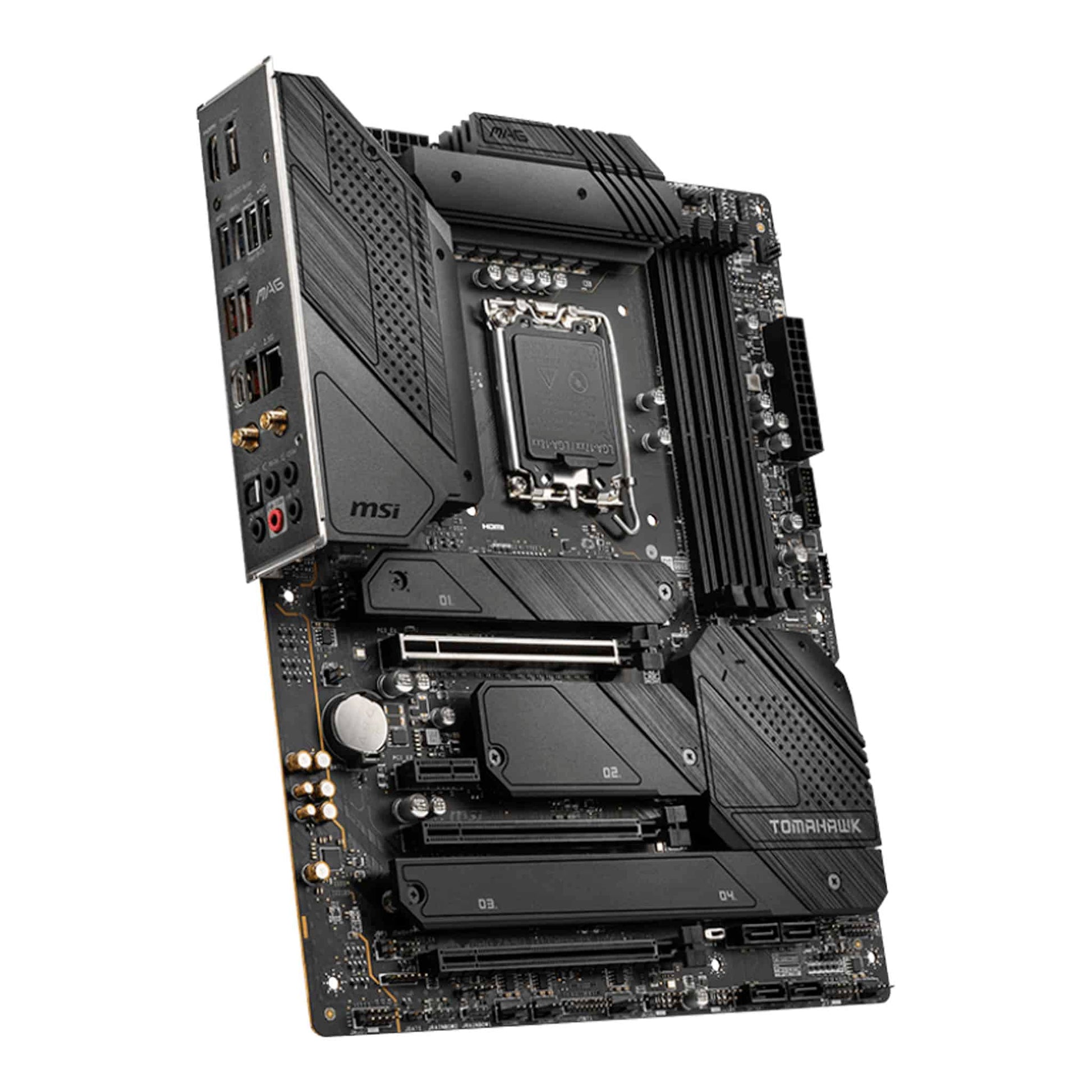

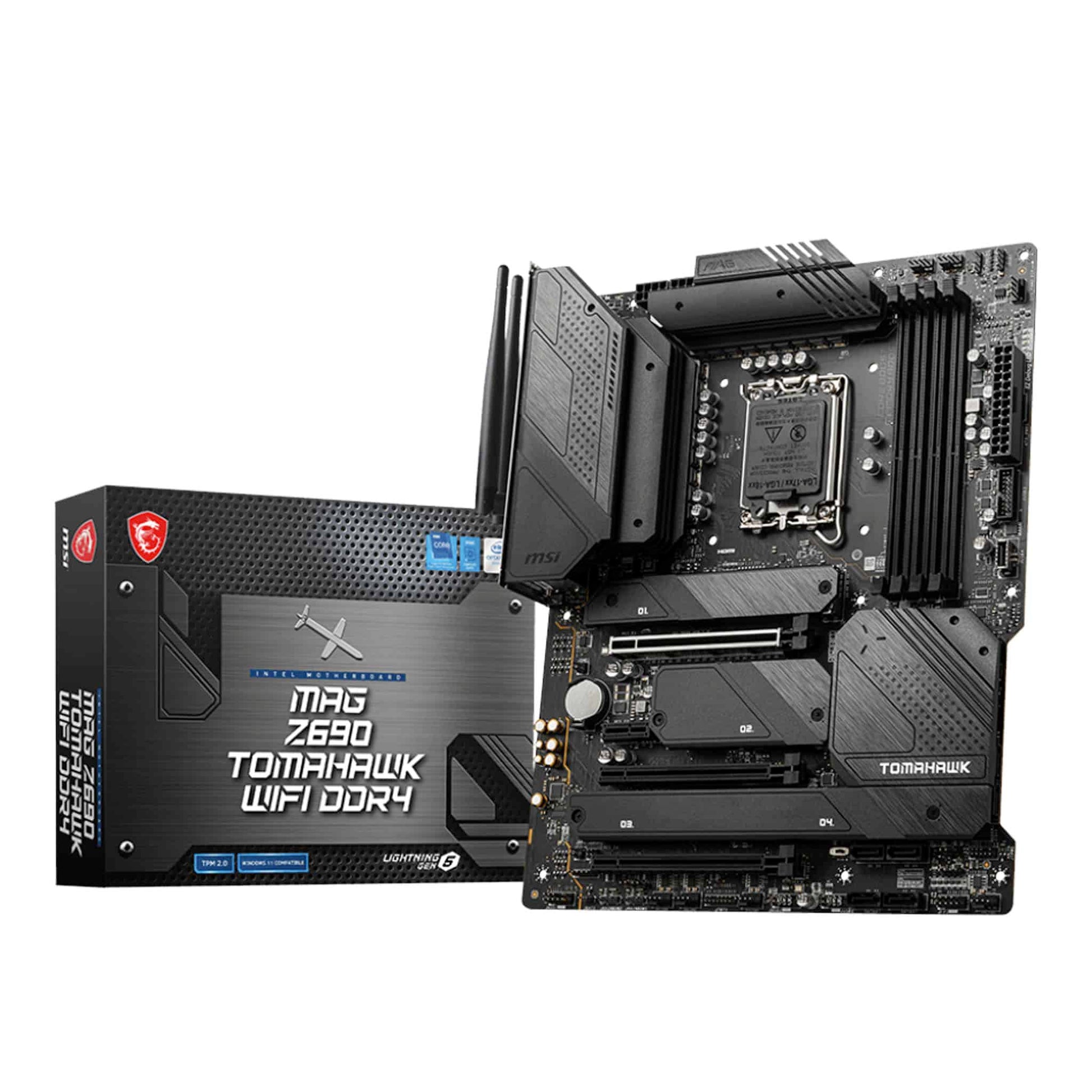

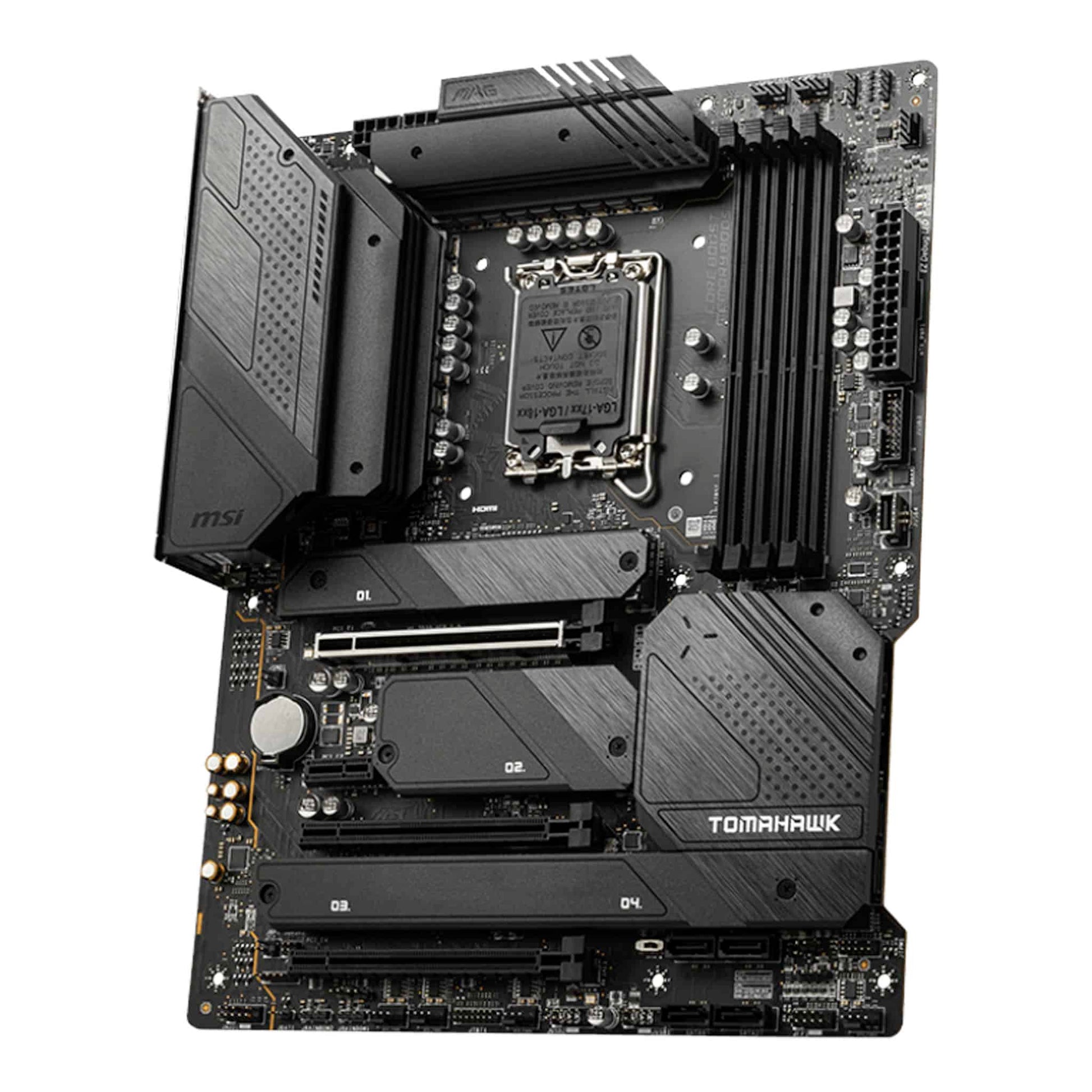

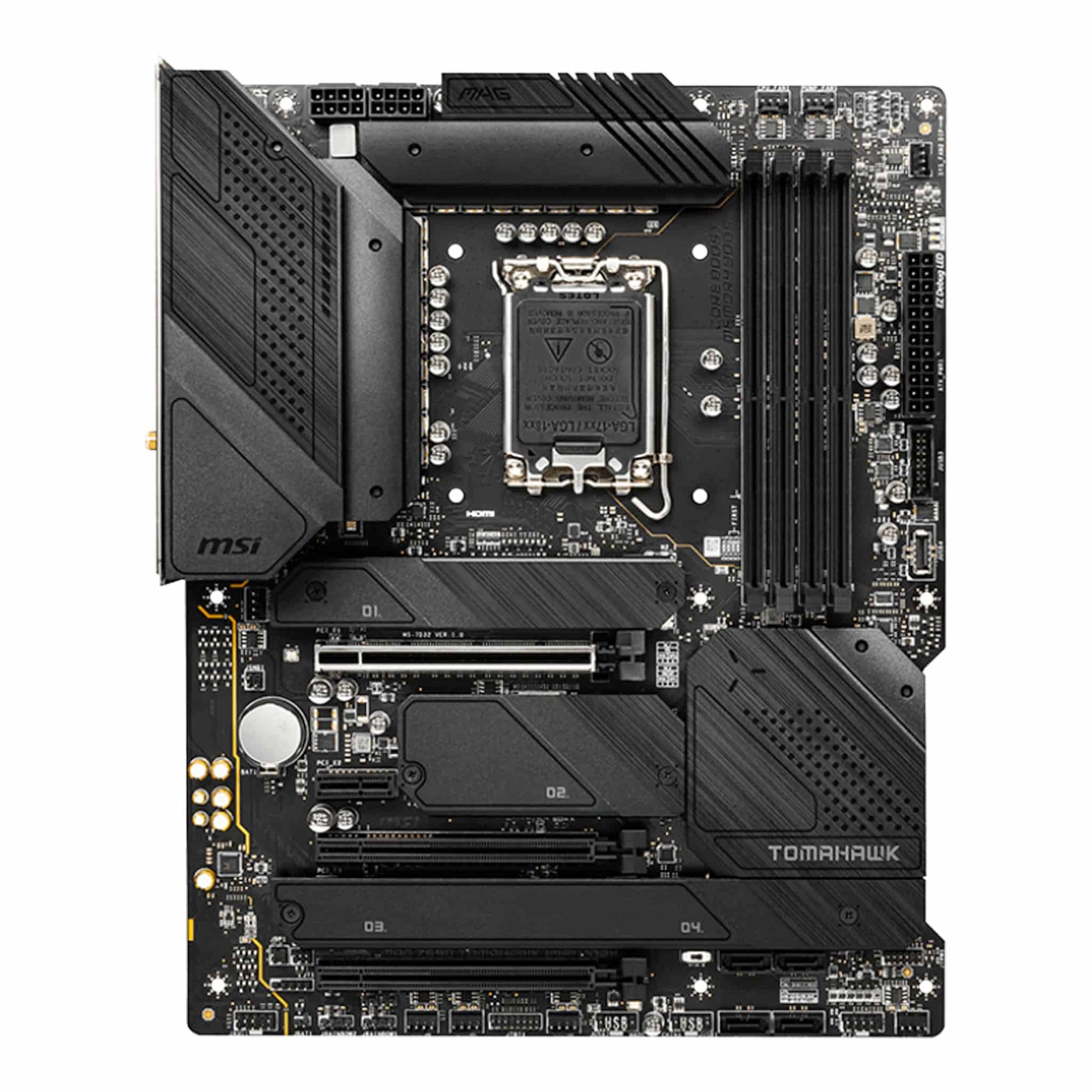

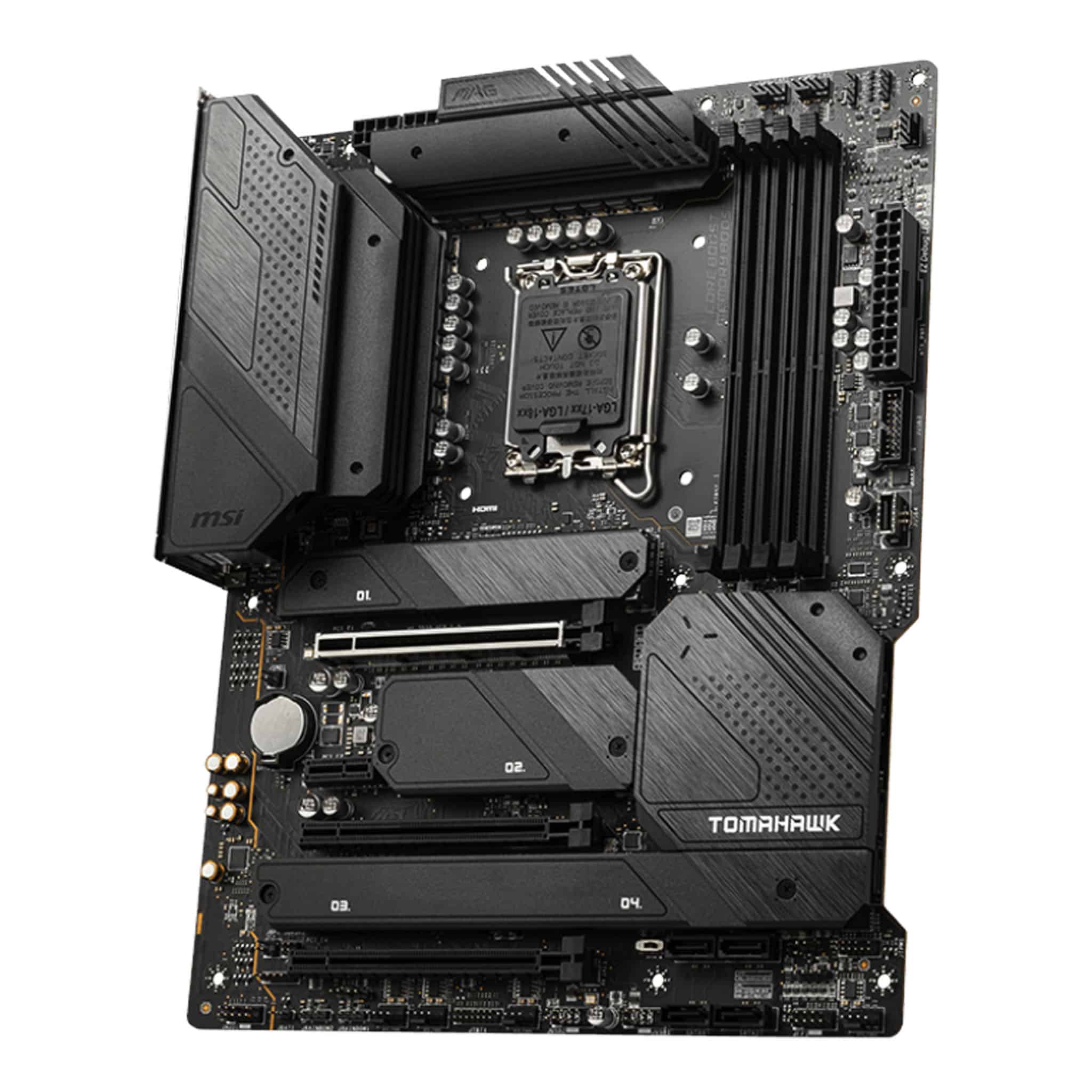

MSI MAG Z690 Tomahawk Wi-Fi DDR4 LGA 1700 ATX Motherboard
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Memory
| Memory Technology | DDR4 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|
Other
| Series | MSI MAG Series |
|---|
Product Details
Product Details
Exclusive Features
Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
16+1+1 Duet Rail Power System
An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Premium Thermal Solution
Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Heatsinks with 7W/mK Thermal & Choke Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
High-Speed Transmission
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Audio Boost 5
ALC4080 Codec with top quality caps for the most immersive gaming experience.
Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 5 Solution
The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.
Premium Hardware Design
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
Thermal Solution for More Cores and Higher Performance
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
Fully Controllable in BIOS and Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
M.2 Shield Frozr
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
- Prevents throttling
- Maximizes drive performance
- Higher maximum SSD speeds
Frozr AI Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
- Performance mode
- Silent mode
- Manual mode
DIY 2.0 – Integrating with The System Environment
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
16 + 1 +1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
1-Second Overclocking!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
More for Performance
Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
Overvoltage Protection
Prevents potential short-circuit damage to the CPU and other critical components.
Digitall Power Design
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.
Double Power Connectors
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

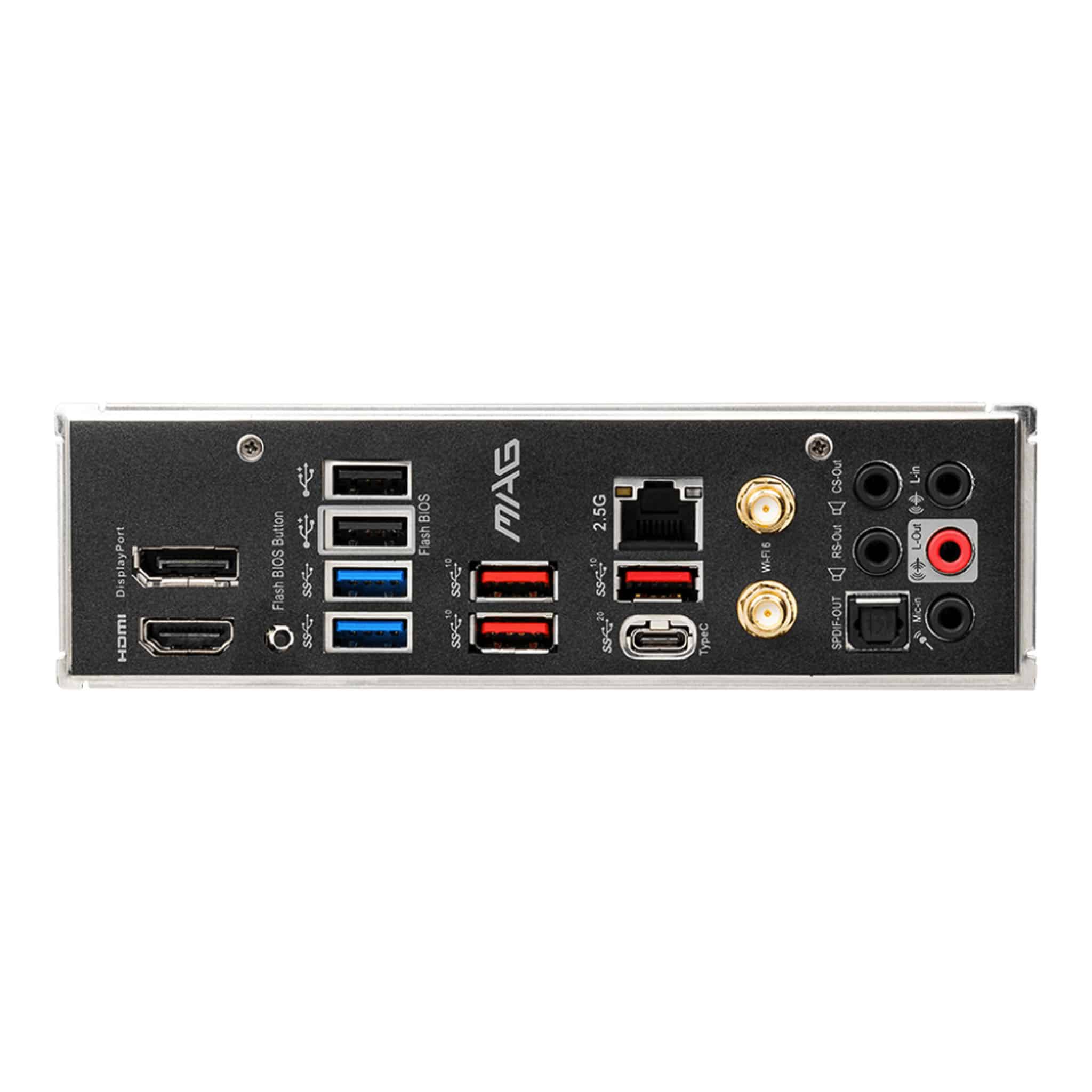

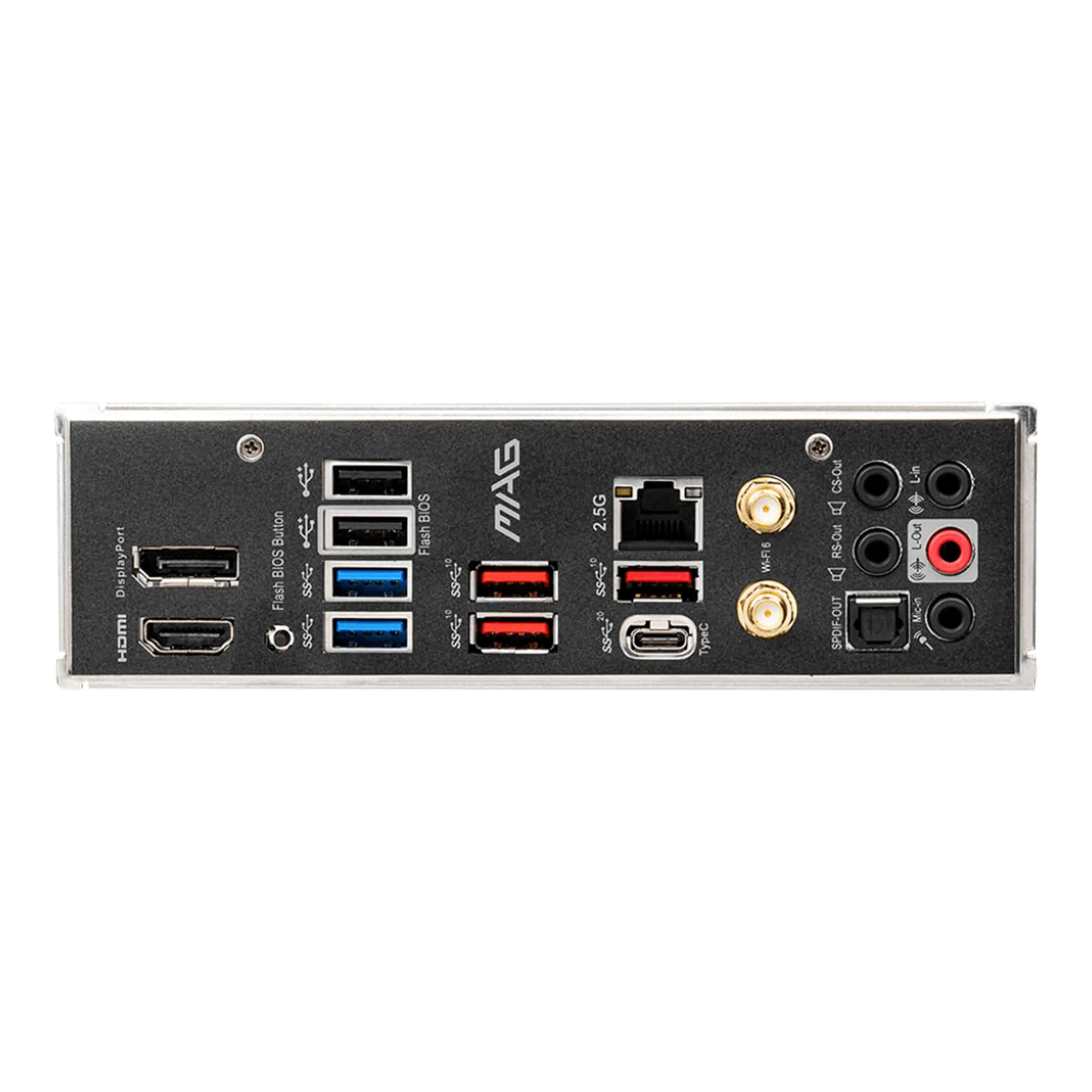

Connectivity
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
High-Bandwidth and Low-Latency Network
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Surfacing with The Real MU-MIMO Technology
The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
Optimize Online Gaming Traffic for Lower Latency!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
- Automatically prioritizes games above other applications
- Allows you to change applications' traffic priority
- Allows you to customize bandwidth for each application
High Definition ALC4080 Audio Processor
From HD-A to USB Interface, twice the DAC format from 32-bit/192kHz to 32-bit/384kHz, deliver the highest sound quality.
High Quality Audio Capacitors
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
High Quality Audio Jacks with S/PDIF
Keep your sound perfect by transmit your audio with pure digital signal.
Isolated Audio Design
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
Separated Audio Layers for Clean Left & Right Channels
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
Double Bandwidth with Lightning USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! MAG Z690 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB Front Type-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
