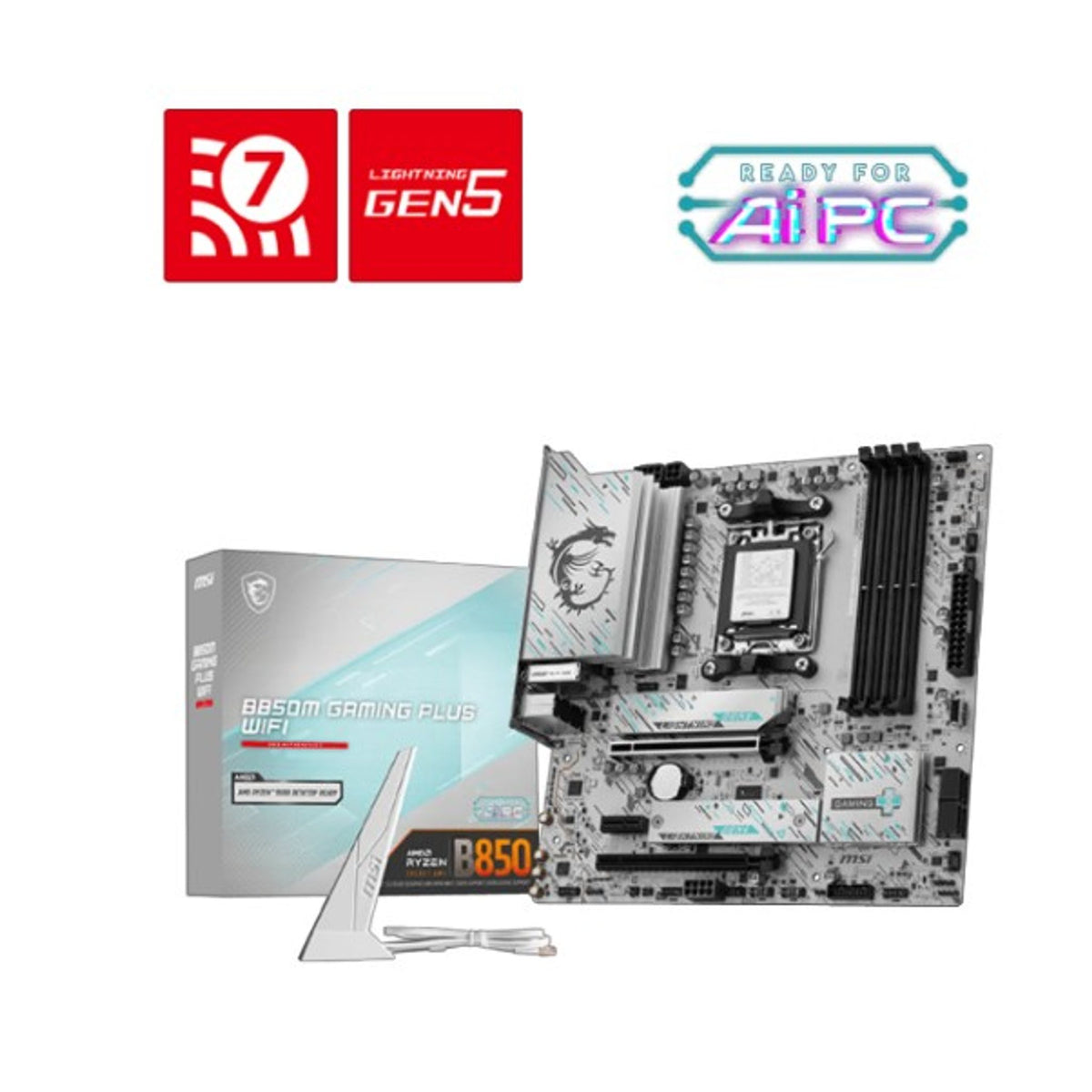

MSI B850M GAMING PLUS WIFI AMD AM5 4 DDR5 2 M.2 HDMI PCI-E x16 WiFi 7

The MSI B850M GAMING PLUS WIFI is a high-performance motherboard designed for AMD AM5 processors. It supports up to four DDR5 memory slots with a maximum capacity of 256GB and offers advanced features such as Wi-Fi 7 connectivity.

Display

• 1x HDMI™ (Supports HDMI™ 2.1, maximum resolution of 4K 60Hz)
• 1x DisplayPort (Supports DisplayPort 1.4, maximum resolution of 4K 60Hz)

Performance

• CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
• Memory Support: DDR5 UDIMM, Maximum Memory Capacity 256GB
• Overclocking Frequency: Up to 8200+ MT/s (1DPC 1R)
• POR Speed and JEDEC Speed Supported
• Dual-Channel Mode Supported

Connectivity

• 4x USB 2.0 ports
• 3x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 2x USB 10Gbps Type C (Rear)
• 1x USB 10Gbps Type C (Front)
• Realtek® 8126 5G LAN
• Wi-Fi 7 Solution with MU-MIMO TX/RX, up to 2.9Gbps on 2.4GHz/5GHz/6GHz bands
• Bluetooth® 5.4 Support (Windows 11 version 24H2)

Storage

• 2x M.2 slots supporting PCIe 5.0 and 4.0 interfaces
• 4x SATA 6G ports
• RAID Support: RAID 0, RAID 1 for SATA devices; RAID 0 and RAID 1 for M.2 NVMe storage devices

SLOTs

• 2x PCI-E x16 slots (Supporting PCIe 5.0/x4/x8 based on CPU series)
• 1x PCI-E x1 slot

AUDIO

• Realtek® ALC897 7.1-Channel High Definition Audio

Internal IO

• Power Connectors: ATX_PWR, CPU_PWR (x2), PCIE_PWR 8pin
• Fan Connectors: CPU Fan, Combo Fan (Pump_Sys Fan), System Fans (x3)
• Front Panel and Chassis Intrusion Connectors
• Audio Connector, COM Port, Tuning Controller connector
• Addressable V2 RGB LED connectors (x3) and RGB LED connector
• TPM pin header (Supports TPM 2.0)

Note: Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit msi.com/support.
