MSI

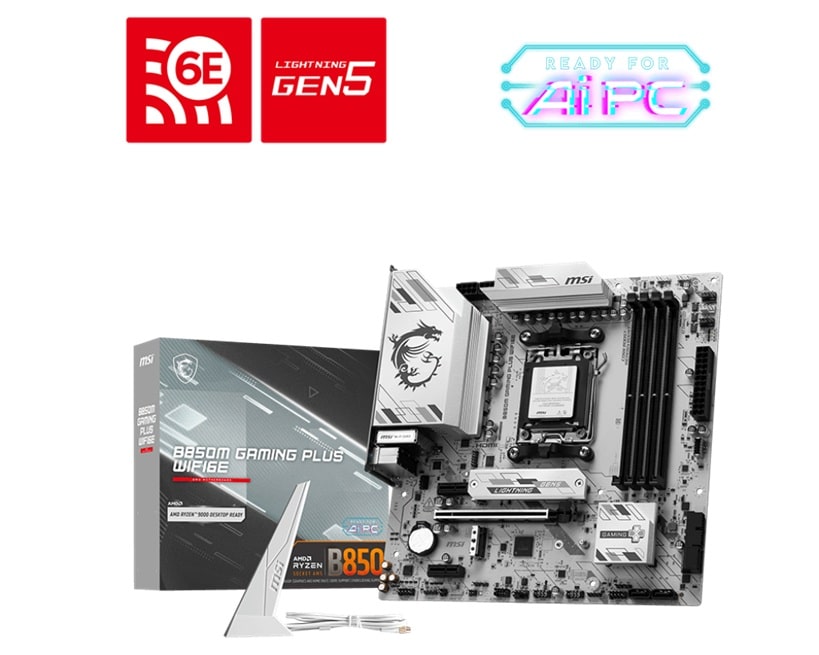

MSI B850M GAMING PLUS WIFI 6E 4x DDR5 2x M.2 microATX Motherboard WiFi 7
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Motherboard
| Motherboard Form Factor | microATX |
|---|
Expansion & Slots
| M.2 Slots | 2 |
|---|
Dimensions
| Length | 28.4 cm |
|---|---|
| Width | 27.6 cm |
| Height | 7.6 cm |
Product Details
Product Details
The MSI B850M GAMING PLUS WIFI 6E is a high-performance motherboard designed for AMD Ryzen processors, featuring advanced connectivity options and robust storage capabilities.
Display
- 1x HDMI™ Support: HDMI™ 2.1, maximum resolution of 4K 60Hz*
- 1x DisplayPort Support: DisplayPort 1.4, maximum resolution of 4K 60Hz*
Performance
- Chipset: AMD B850
- CPU Supports: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Sockets: AM5
- Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Onboard Graphics: Supports up to the maximum resolution of 4K 60Hz*
Storage
- 2x M.2 slots: PCIe 5.0 x4 and PCIe 4.0 x4 support depending on CPU series
- 4x SATA 6G ports
Connectivity
- LAN: Realtek® 8125D 2.5G LAN
- USB Ports: 4x USB 2.0, 4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front)
- Wireless: Wi-Fi 6E Solution supporting MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* up to 2.4Gbps
- Bluetooth: Bluetooth® 5.3
Other Features
- Raid Support: RAID 0, RAID 1 and RAID 10 for SATA storage devices; RAID 0 and RAID 1 for M.2 NVMe storage devices
- Audio: Realtek® ALC897 7.1-Channel High Definition Audio
- LED Features: 4x EZ Debug LED, 1x EZ Memory Detection LED
Note: Certain features such as Wi-Fi 6E and Bluetooth 5.3 may require specific operating system updates for full functionality.
