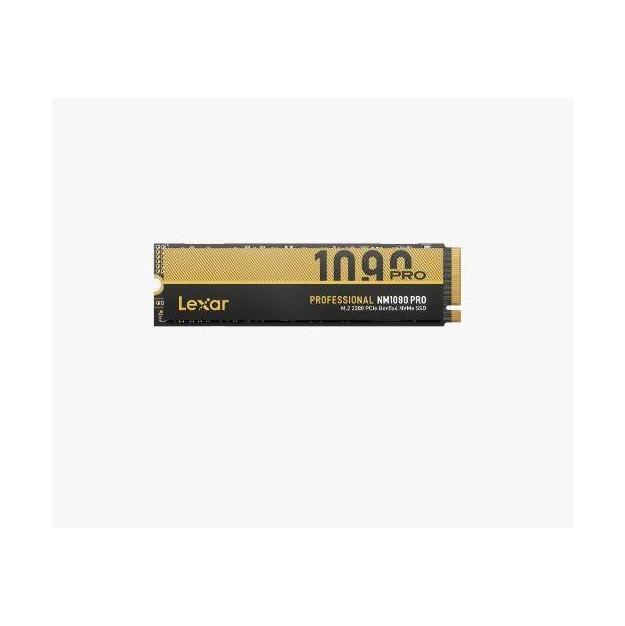

Lexar NM1090 PRO 1TB PCIe 5.0 M.2 2280 SSD 14000MB/s Read 10000MB/s Write

The Lexar LNM109P001T-RNNNG Internal SSD NM1090 PRO is a high-performance storage solution featuring PCIe Gen 5x4 interface and M.2 2280 form factor. It offers up to 14,000MB/s sequential read speed and 10,000MB/s sequential write speed for the 1TB model.

Performance

• Sequential Read Speed: Up to 14,000MB/s
• Sequential Write Speed: Up to 10,000MB/s
• Random Read IOPS: Up to 1650K
• Random Write IOPS: Up to 1800K

Storage

• Capacity: 1TB, 2TB, 4TB, 8TB
• Dram Capacity: 1TB - 2GB, 2TB - 2GB, 4TB - 4GB, 8TB - 8GB
• Total Bytes Written (TBW): 700TBW (1TB), 1400TBW (2TB), 2800TBW (4TB), 5600TBW (8TB)

Connectivity and Interface

• Interface: PCIe Gen 5x4
• Form Factor: M.2 2280

Durability

• Shock Resistant: 1500G, duration 0.5ms (Half Sine Wave)
• Vibration Resistant: 10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)

Environmental Specifications

• Operating Temperature: 0° to 70°C (32°F to 158°F)
• Storage Temperature: -40° to 85°C (-40°F to 185°F)
• Mechanical Life: 1,500,000 Hours

Dimensions and Weight

• Dimension (W x L x H): 80 x 22 x 3.6 mm (3.15” x 0.87” x 0.14”) for 1TB-2TB models, 80 x 22 x 3.9 mm (3.15” x 0.87” x 0.15”) for 4TB-8TB models
• Weight: 8g / 0.017lbs (1TB-2TB), 8.5g / 0.019 lbs (4TB), 9.6g / 0.021 lbs (8TB)

Warranty

• Five-year limited warranty
