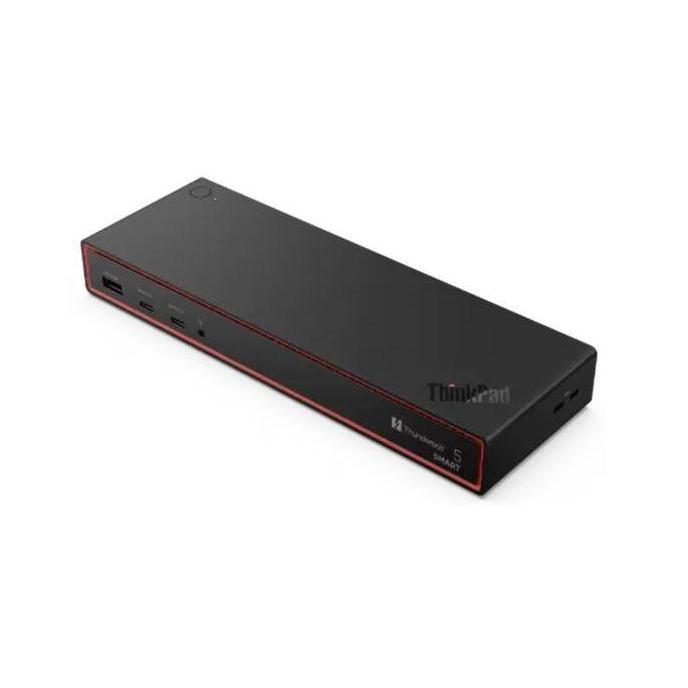

LENOVO ThinkPad Thunderbolt 5 Smart Dock 7500 - 180W PD 2xThunderbolt 5 2xUSB-C

The Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 is a versatile docking station designed to enhance productivity with multiple connectivity options and high-speed data transfer capabilities.

Display Connectivity

• 2 x DisplayPort (DP) 2.1
• 1 x HDMI 2.1
• 2 x Thunderbolt 5 Full Function

The dock supports up to five external displays, with a maximum refresh rate of 8K / 60 Hz.

Connectivity Ports

• Front: 1 x USB-A 3.2 Gen 2 (10 Gbps data, AOU 12W), 2 x USB-C data port (10 Gbps data, AOU 15W)
• Rear: 2 x USB-A 3.2 Gen 2 (10 Gbps data, 10W), 2 x Thunderbolt 5 Full Function
• 1 x 2.5Gb Ethernet port
• Audio Jack (3.5mm)

Power and Charging

• Output Power: 180W
• Input Power: 265W
• Charging Port: USB-C PD 3.1
• Included 265W power adapter

Physical Security and Dimensions

• Kensington Nano Lock, Kensington Micro Lock
• Packed dimensions: 260 mm x 165 mm x 74 mm
• Packed weight: 1730 g (with cable)
• Operating temperature range: 0°C to 40°C
• Relative humidity range: 20% to 95%

Included Items

• Thunderbolt 5 Smart Dock with integrated 1 m Thunderbolt 5 cable
• 265W Power Adapter
• Power Cable
• Lenovo Accessories Fleet Manager Flyer
• Setup Poster
• Warranty Poster

Other Features

• OS Requirements: Windows, macOS, Linux
• Driver Needed: Yes
• Power Button: Yes
• Agency Approvals: FCC/ICES, CE, KCC, RCM, BSMI, NCC, VCCI, CB, cULus, EAC, TUV-Mark, Ukraine DoC, NOM, IFT, TELEC, UKCA, VNTA, WPC ETA, SRRC, SDPPI, IMDA, SIRIM, NBTC, SUBTEL, KVALITET/RATEL, MCIT, ANRT, UCC, INACOM, CITRA, TRA, NTC, PSRC, ARTCI, INCM
• Thunderbolt Cert, EVO
