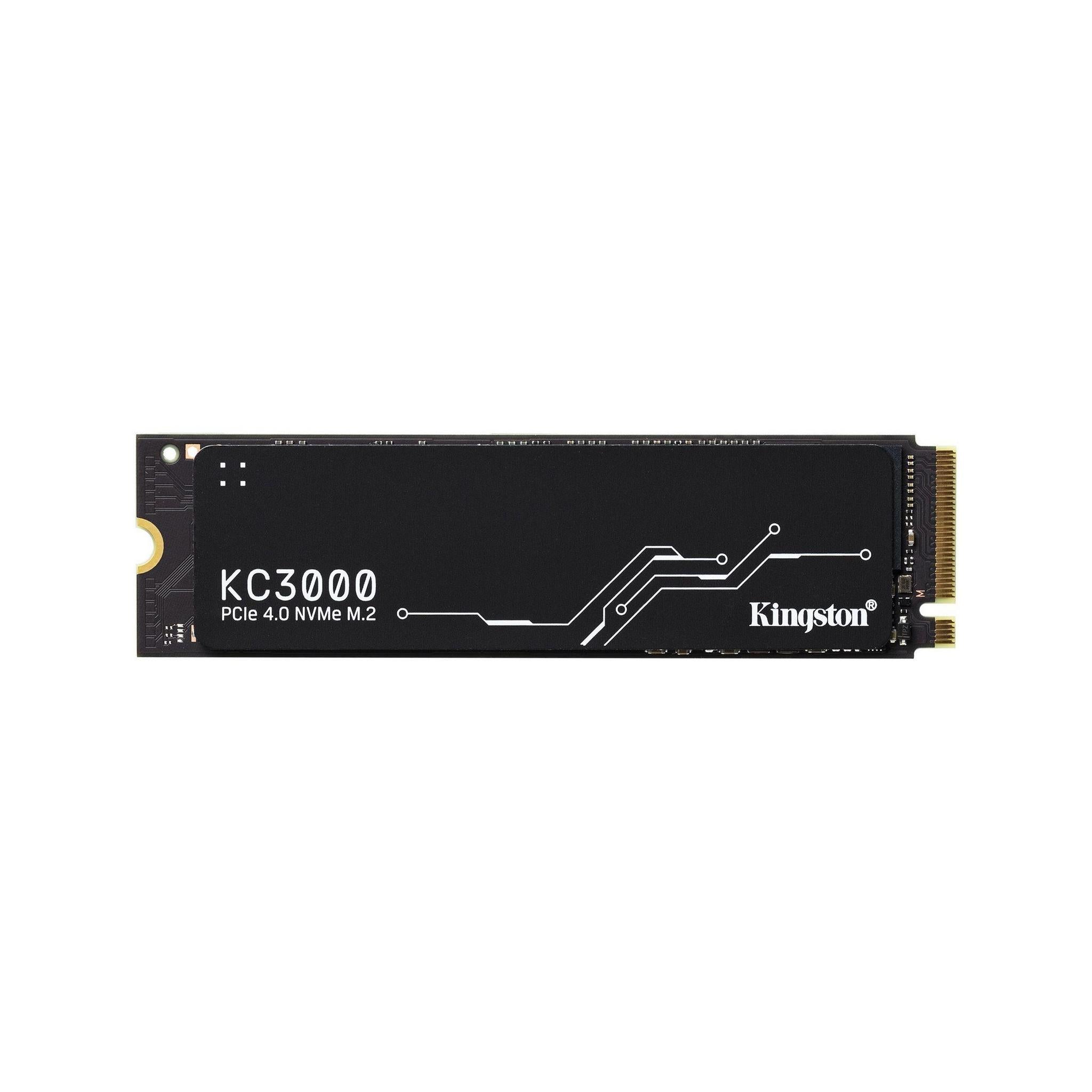

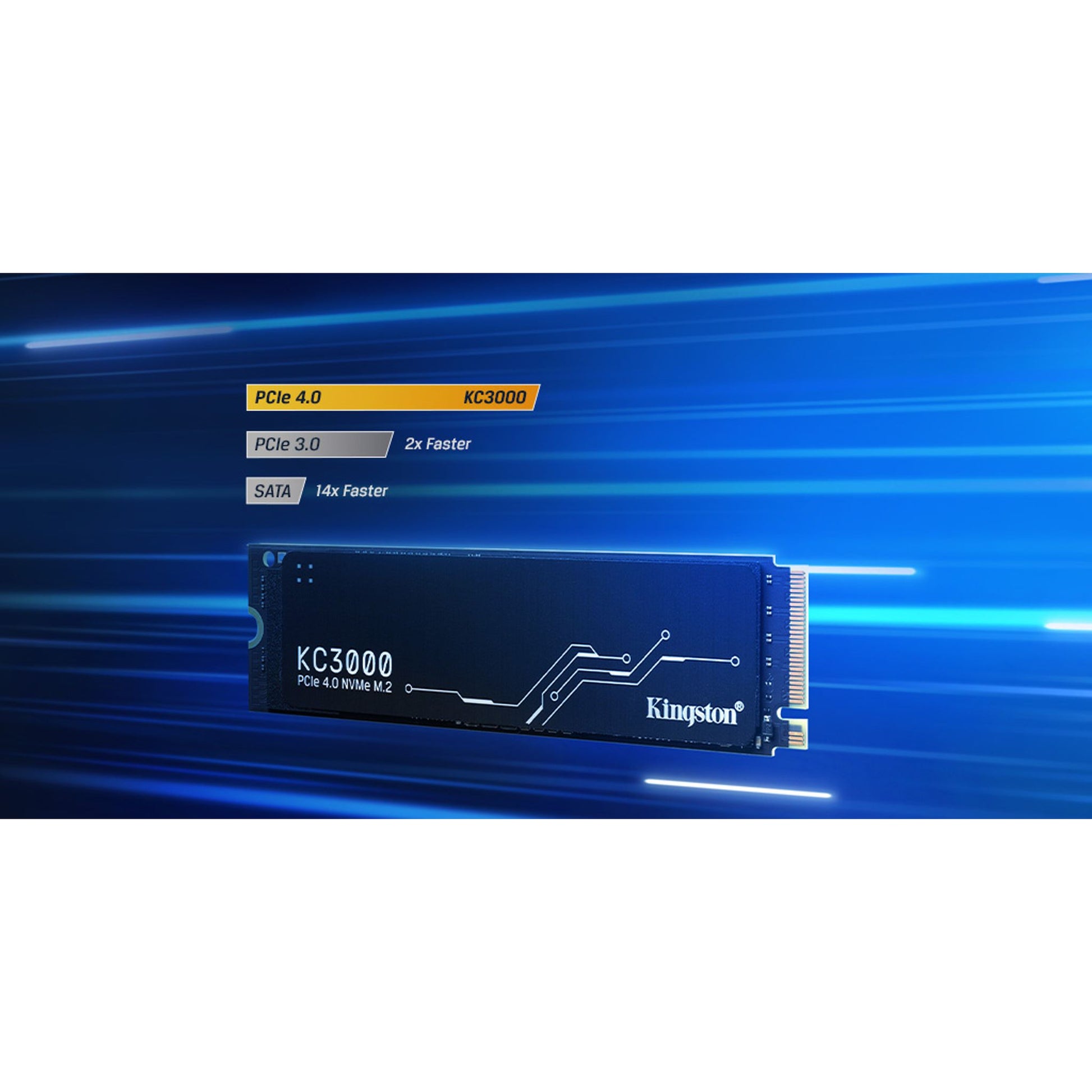

Kingston KC3000 1TB PCIe 4.0 NVMe M.2 2280 SSD 7000/6000MB/s 800TBW 3D TLC

The Kingston KC3000 1TB PCIe 4.0 NVMe M.2 SSD offers high-speed performance and reliability for demanding workloads such as 3D rendering and 4K content creation. It features a Phison E18 controller with 3D TLC NAND, delivering sequential read/write speeds of up to 7,000MB/s and 6,000MB/s respectively.

Performance

• Sequential Read: Up to 7,000 MB/s
• Sequential Write: Up to 6,000 MB/s
• Random 4K Read: Up to 900,000 IOPS
• Random 4K Write: Up to 1,000,000 IOPS

Reliability and Durability

• Total Bytes Written (TBW): 800 TBW for the 1TB model
• Mechanical Shock Resistance: Up to 2,000G
• Vibration Tolerance: Up to 20G
• Operating Temperature Range: 0°C~70°C
• Storage Temperature Range: -40°C~85°C
• Mechanical Life: 3,000 Load/Unload Cycles
• Mean Time Between Failures (MTBF): 1,800,000 hours

Design and Features

• Form Factor: M.2 2280
• Interface: PCIe 4.0 x4 NVMe
• Heat Spreader: Low profile graphene aluminium for thermal dissipation
• Power Consumption: Idle – 5mW, Average – 0.33W, Read Max – 2.8W, Write Max – 6.3W

Support and Warranty

• Limited 5-year warranty with free technical support
