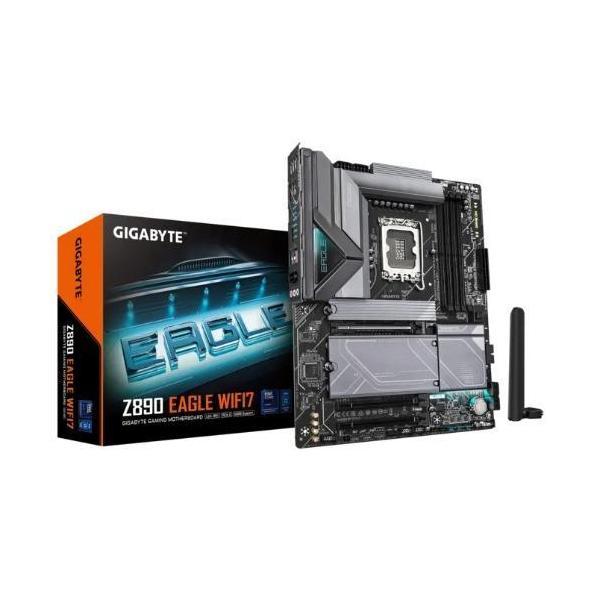

Gigabyte Z890 EAGLE WIFI7 P LGA 1851 ATX Motherboard 4x DDR5 3x PCI-E x16 4x M.2

The Gigabyte Z890 EAGLE WIFI7 P LGA 1851 ATX Motherboard is designed for high-performance computing with support for Intel Core Ultra processors and features advanced connectivity options.

Display

• 1 x DisplayPort (Note)
• 1 x USB4® USB Type-C® port (DisplayPort (Note))

Performance

• CPU LGA1851 socket: Support for Intel Core Ultra Processors
• L3 cache varies with CPU
• Chipset: Intel Z890 Express Chipset
• Memory: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Connectivity

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard
• Back Panel Connectors:
  • 1 x USB4® USB Type-C® port (DisplayPort (Note))
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
  • 2 x antenna connectors (2T2R)

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

The Gigabyte Z890 EAGLE WIFI7 P motherboard is built on an ATX form factor with dimensions of 30.5cm x 24.4cm.
