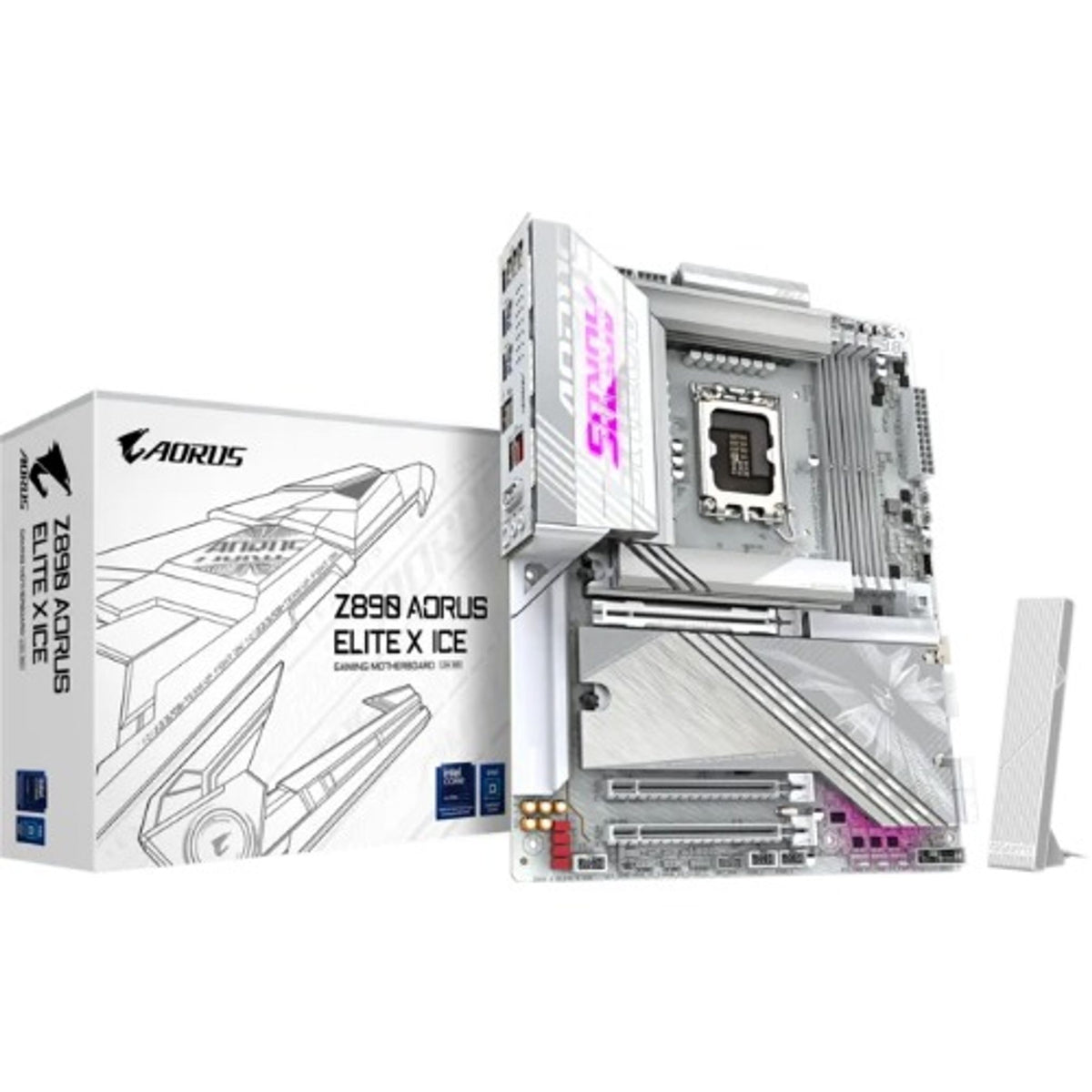

Gigabyte Z890 AORUS ELITE X ICE DDR5 ATX Motherboard 4x M.2 3x PCI-E x16

The Gigabyte Z890 AORUS ELITE X ICE is an ATX motherboard designed for high-performance computing with support for Intel Core Ultra processors. It features a comprehensive array of connectivity options and expansion slots to meet the needs of demanding users.

Display

• 1 x DisplayPort

Performance

• CPU socket: LGA 1851
• Chipset: Intel Z890 Express
• Memory: 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM capacity)
• Expansion slots:
  • 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16
  • 2 x PCI Express x16 slots supporting PCIe 4.0 and running at x4

Connectivity

• LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module: MediaTek Wi-Fi 7 MT7925, Bluetooth 5.4
• Back Panel Connectors:
  • 1 x Intel Thunderbolt 4 connector (USB Type-C port)
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x antenna connectors (2T2R)
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks

Unique Features

• Gigabyte Control Center (GCC)
• Q-Flash/Q-Flash Plus support for BIOS updates without CPU, RAM or graphics card
• Smart Backup feature

The Gigabyte Z890 AORUS ELITE X ICE measures 30.5cm x 24.4cm and is designed to provide a robust platform for gaming and high-end computing.
