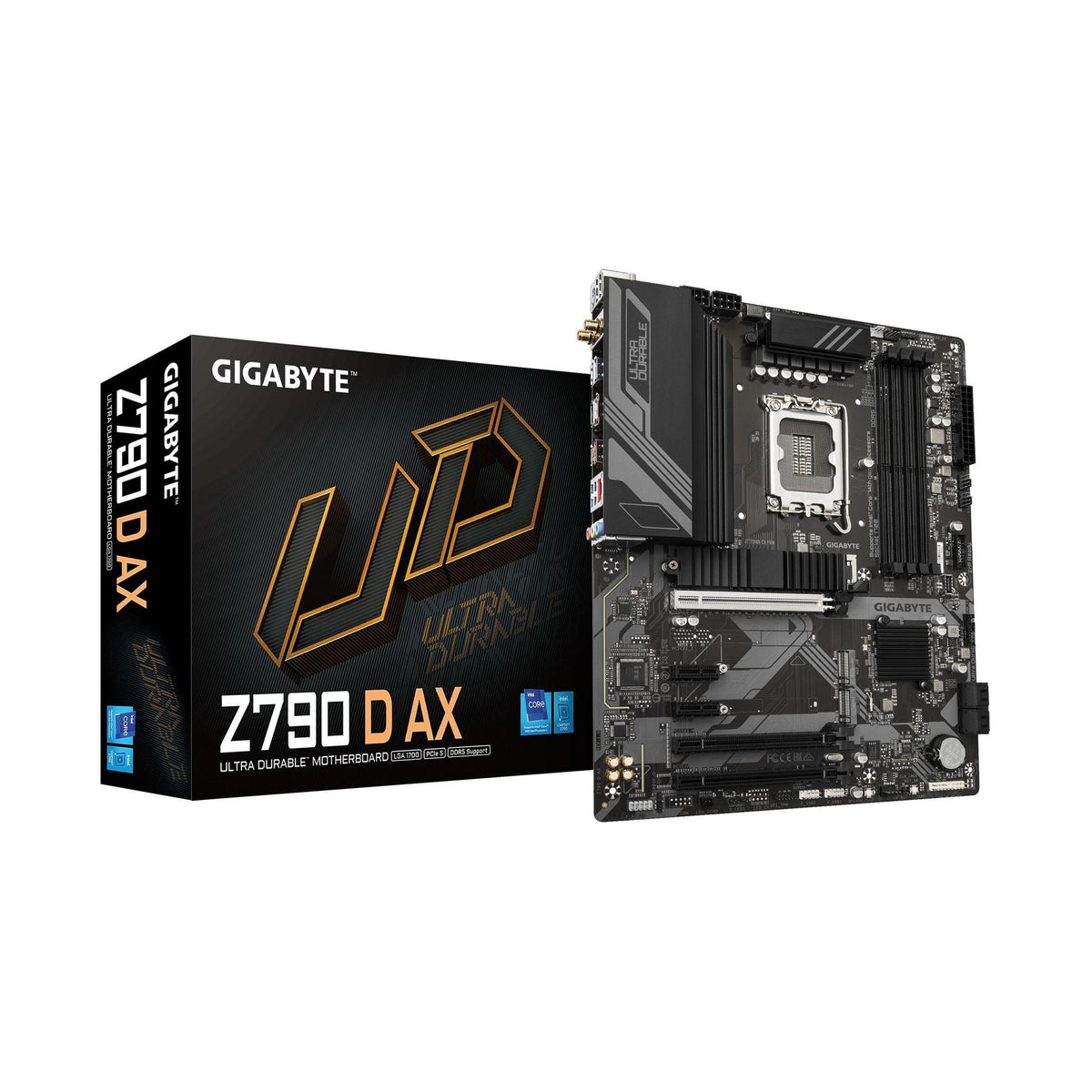

Gigabyte Z790 D AX LGA 1700 ATX Motherboard 4x DDR5 2x PCI-E x16 3x M.2
Available in stock (104)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | LGA 1700 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | M.2, SATA, PCIe, DIMM |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | USB 3.2 gen 2x1, USB 3.2 gen 1x1, USB 3.1 gen 1, USB 2.0, USB 3.2 gen 2 |
| USB Connector Type | USB Type-C, USB Type-A |
Dimensions
| Length | 342 mm |
|---|---|
| Width | 278 mm |
| Height | 82 mm |
Other
| Colour | Black, Gray |
|---|
Product Details
Product Details
The Gigabyte Z790 D AX is an ATX motherboard designed for Intel processors with LGA 1700 socket support. It accommodates up to four DDR5 memory slots, supporting a maximum of 192GB (48GB per DIMM) and speeds ranging from 4400 MT/s to 7600(O.C.) MT/s depending on the processor generation.
Display
- 1 x HDMI port supporting up to a resolution of 4096x2160@60 Hz with HDCP 2.3 and native HDMI 2.1 support
- 1 x DisplayPort supporting up to a resolution of 4096x2304@60 Hz with HDCP 2.3 and DisplayPort 1.2 version
Performance
- Supports the latest Intel Core processors including the 14th, 13th, and 12th generation i9/i7/i5/i3, Pentium Gold, and Celeron series
- Dual channel memory architecture with ECC support for enhanced reliability
- Onboard graphics supporting up to a resolution of 4096x2160@60 Hz via HDMI or DisplayPort
Storage
- Three M.2 slots: one CPU socket and two chipset sockets, all supporting PCIe 4.0 x4/x2 SSDs with type 2280 form factor (one of the chipset sockets also supports SATA)
- Four SATA 6Gb/s connectors for RAID configurations including RAID 0, 1, 5, and 10
Connectivity
- Six USB 3.2 ports (four rear panel, two internal headers)
- TWO USB-C ports (one rear panel, one internal header)
- Two USB 2.0 ports (rear panel and internal header each)
Note:
For the most up-to-date CPU compatibility list, please visit GIGABYTE's website.
