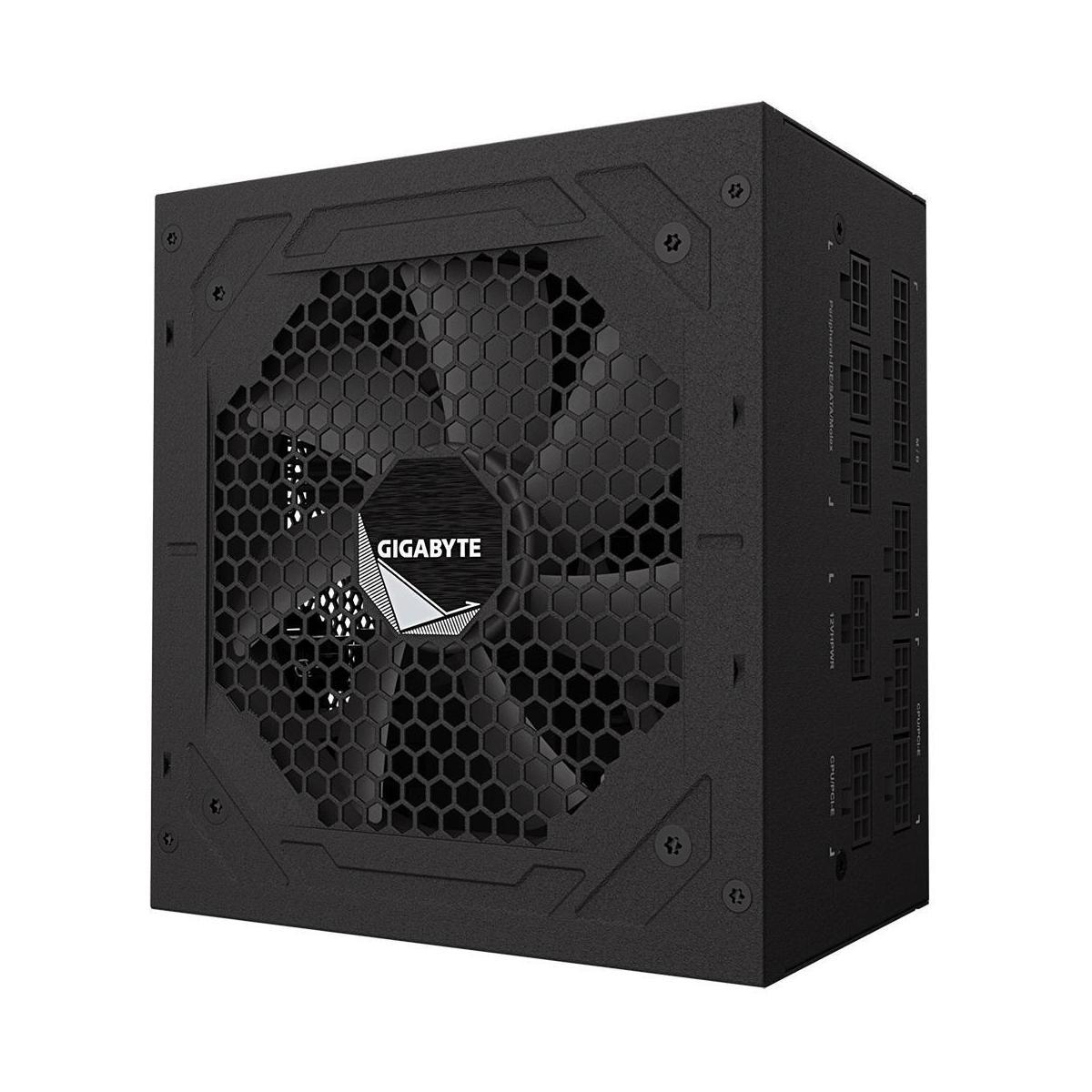

Gigabyte UD850GM PG5 2.0 850W ATX Gold Power Supply 120mm HYB Fan

The Gigabyte UD850GM PG5 2.0 is an 850W ATX power supply with 80 PLUS Gold efficiency and a fully modular design. It supports Intel's ATX 3.0 standard and includes protection features such as OVP, OPP, SCP, UVP, OCP, and OTP.

Performance

• Type: Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 12-6A
• Input Frequency: 60-50 Hz
• Output Capacity: 850W
• Efficiency: 90% at typical load
• MTBF: >100,000 hours

Fan and Cooling

• Fan Type: 120mm Hydraulic Bearing (HYB) fan
• Cooling Solution: Enhanced thermal solution with smart hydraulic bearing for quiet operation

Connectivity

• ATX/MB 20+4 Pin x 1: 610mm
• CPU/EPS 4+4 Pin x 2: 600mm + 200mm
• PCI-e 12+4 Pin x 1: 700mm
• PCI-e 6+2 Pin x 4: 600mm + 150mm (x2)
• SATA x 8: 600mm + 150mm + 150mm + 150mm (x2)
• 4-Pin Peripheral x 3 + 4-Pin Floppy x 1: 500mm + 120mm + 120mm + 150mm

Protection and Features

• OVP/OPP/SCP/UVP/OCP/OTP protection
• Power Good Signal: 100-150ms Hold Up Time >16ms
• Supports PCle Gen 5.0 graphics cards
• Main capacitors from Japan for enhanced durability
• Fully modular design with flat, all-black cables

The Gigabyte UD850GM PG5 comes with a 5-year warranty (adjusted according to different regions).
