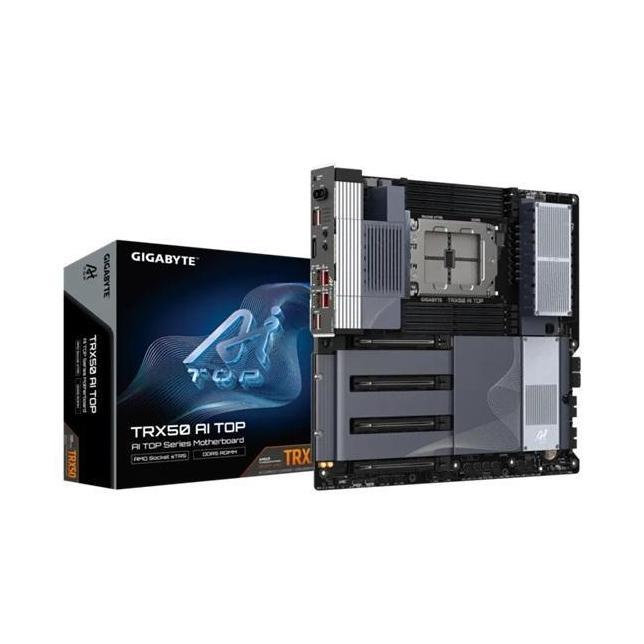

Gigabyte TTRX50 AI TOP AMD Ryzen DDR5 ECC RDIMM Motherboard PCIe 5.0 USB4 WiFi7 E-ATX
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 384 mm |
|---|---|
| Width | 404 mm |
| Height | 114 mm |
Product Details
Product Details
The Gigabyte TTRX50 AI TOP is an advanced motherboard designed for high-performance computing and professional workloads. It supports AMD Ryzen Threadripper PRO 9000-WX/7000-WX Series Processors and AMD Ryzen Threadripper 9000/7000 Series Processors, offering robust performance with up to 2TB of DDR5 ECC RDIMM memory.
Performance
- Supports 8-channel memory architecture for the PRO series processors
- Quad channel memory architecture for standard Threadripper series processors
Connectivity
- 2 x Marvell AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
- Qualcomm Wi-Fi 7 QCNCM865 module supporting 2.4/5/6 GHz carrier frequency bands
- Built-in Bluetooth 5.3
Expansion Slots
- 3 x PCI Express x16 slots for graphics cards or NVMe SSDs (PCIEX16_1, PCIEX16_2, PCIEX16_3)
- 1 x additional PCIe x16 slot (PCIEX16_4) supporting PCIe 5.0
USB Ports
- 4 x USB 3.2 Gen 2 Type-A ports on the back panel
- 2 x USB4 Type-C ports with USB 3.2 Gen 2x2 support
- 1 x internal USB Type-C port with USB 3.2 Gen 2x2 support
Form Factor
E-ATX form factor; dimensions: 30.5cm x 33.0cm
Audio
- Realtek ALC4080 CODEC (rear panel audio)
- Support for DTS:X Ultra and high-definition audio
- 2-channel Realtek ALC897 CODEC (front panel audio)
Unique Features
- GIGABYTE Control Center (GCC) with various applications depending on motherboard model
- Q-Flash and Q-Flash Plus for BIOS updates without a CPU, RAM or graphics card
- Smart Backup feature
Supported Operating Systems
- Windows 11 64-bit
- Ubuntu 24.04 LTS
