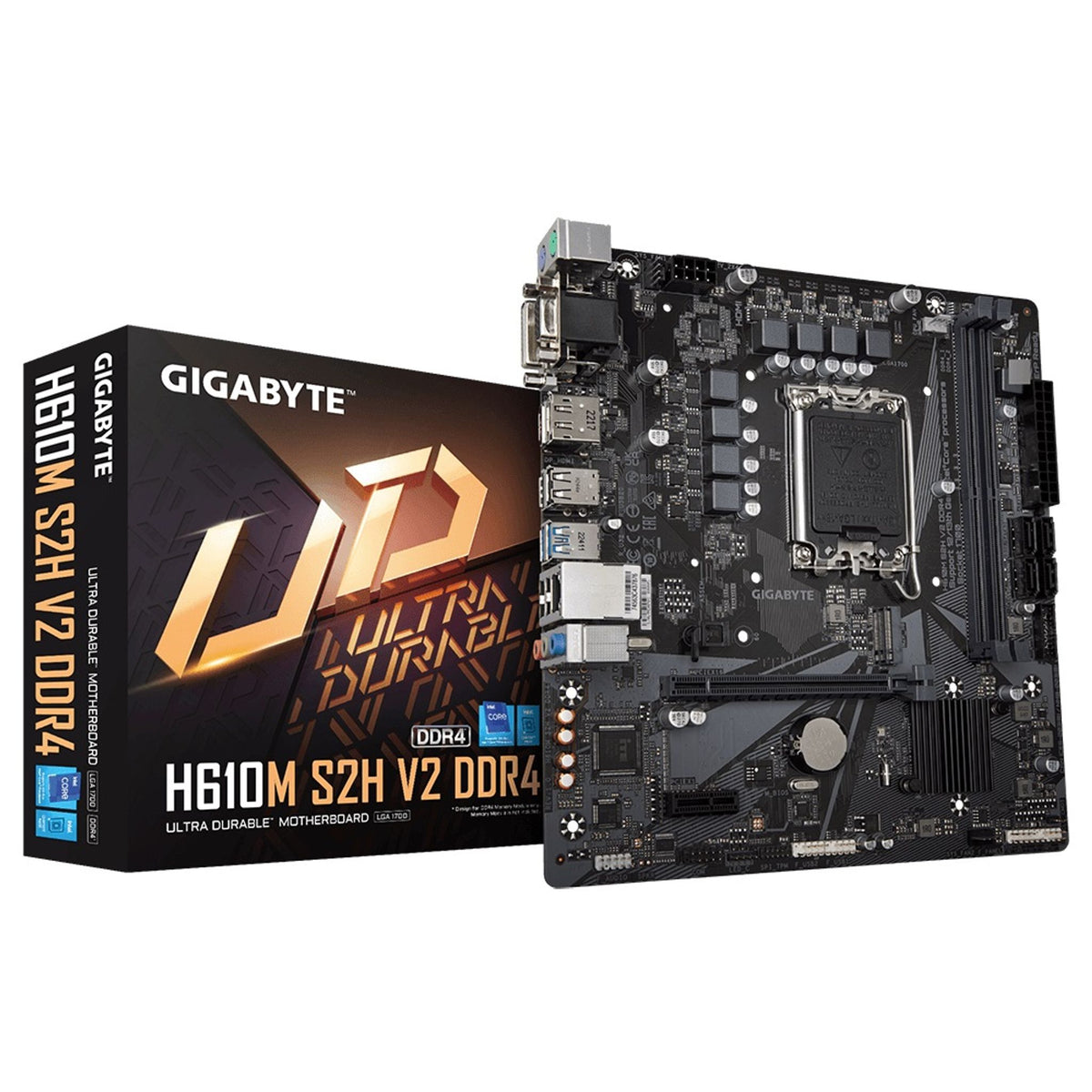

Gigabyte H610M S2H V2 DDR4 LGA 1700 mATX Motherboard 2x DDR4 1x PCI-E x16 1x

The Gigabyte H610M S2H V2 is a compact micro ATX motherboard designed for Intel's LGA 1700 socket, supporting 13th and 12th generation Core processors along with Pentium Gold and Celeron CPUs. It features:

Display

• 1 x D-Sub port (max resolution: 1920x1200@60 Hz)
• 1 x DVI-D port (max resolution: 1920x1200@60 Hz)
• 1 x HDMI port (max resolution: 4096x2160@60 Hz)
• 1 x DisplayPort (max resolution: 4096x2304@60 Hz)

Performance

• Dual channel non-ECC unbuffered DDR4 memory support up to 64GB (32GB single DIMM capacity)
• Supports DDR4 memory modules at speeds of 3200/3000/2933/2666/2400/2133 MHz
• Hybrid digital VRM design with 6+1+1 phases for efficient power delivery

Expansion Slots

• 1 x PCI Express x16 slot (PCIe 4.0, running at x16)
• 1 x PCI Express x1 slot (PCIe 3.0, running at x1)

Storage Interface

• 1 x M.2 connector for NVMe PCIe 3.0 x4 SSDs
• 4 x SATA ports

Connectivity

• Back panel: 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ-45 LAN port, 3 audio jacks
• Internal headers: 4 x USB 2.0/1.1

The Gigabyte H610M S2H V2 includes features such as GbE LAN with bandwidth management and Smart Fan 6 for temperature monitoring, ensuring reliable performance in a compact form factor.
