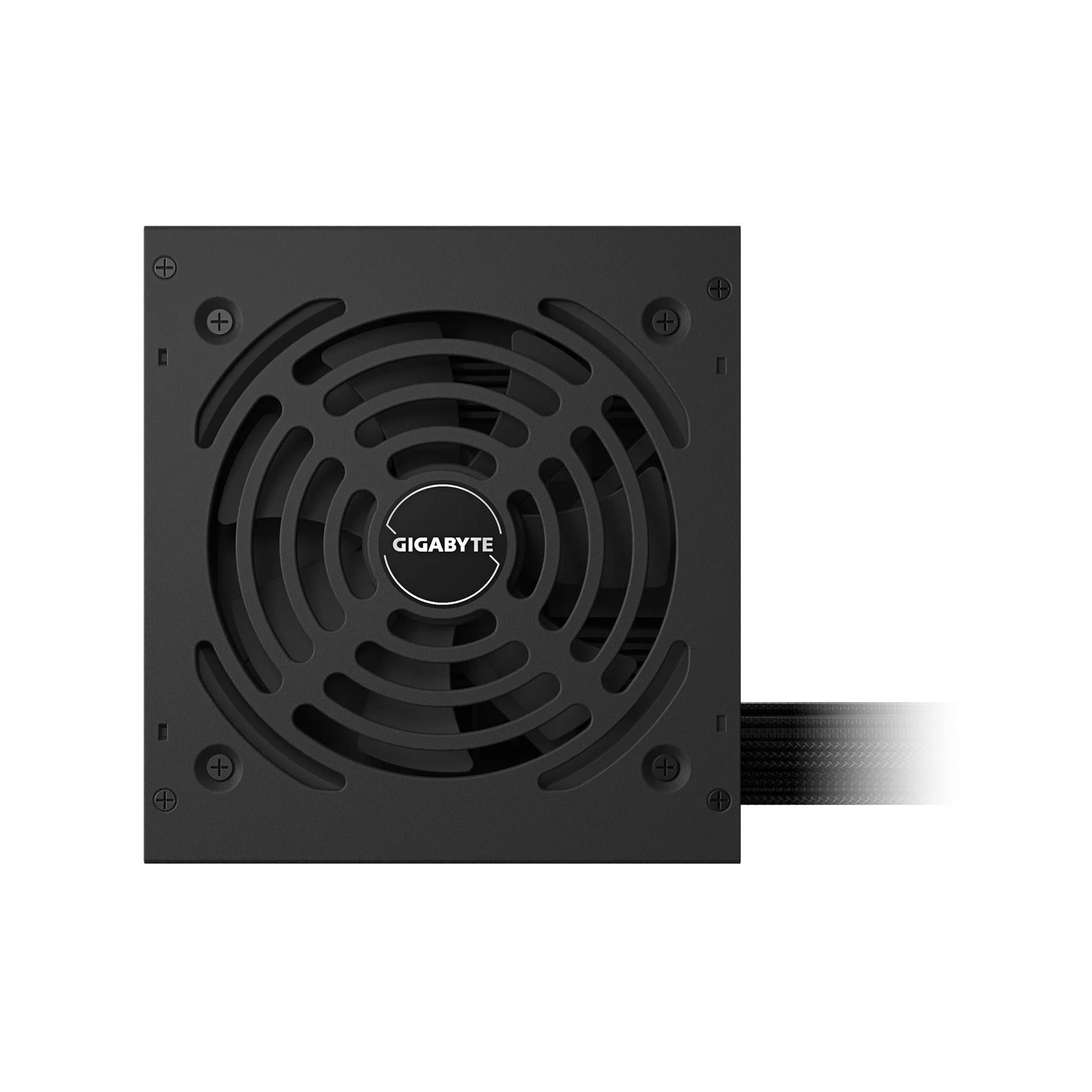

Gigabyte GP-P650G 650W ATX Gold Fully Modular PCIe 5.0 PSU 120mm Fan

The Gigabyte GP-P650G is a fully modular power supply unit (PSU) designed for high-performance PC builds. It features an ATX form factor and supports PCIe 5.1 with a capacity of 650W.

Display

• No display-related specifications available

Performance

• Type: Intel
• Form Factor: ATX 12V v3.1
• PFC: Active PFC (>0.9 typical)
• Efficiency: 80 PLUS Gold (90% at typical load)
• Fan Type: 120mm HYB Fan
• MTBF: >100,000 hours

Connectivity

• Cable Type: Embossed, All black
• Connectors:
  • ATX/MB 20+4 Pin x 1 (600mm)
  • CPU/EPS 4+4 Pin x 1 (600mm + 150mm)
  • PCI-e 16 Pin x 1 (500mm)
  • PCI-e 6+2 Pin x 2 (500mm + 150mm each)
  • SATA x 6 (420mm + 150mm + 150mm each)
  • 4 Pin Peripheral x 3 (420mm + 150mm + 150mm each)

Protection Features

• OVP/OPP/SCP/UVP/OCP/OTP
• Hold Up Time: >17ms

Electrical Specifications

• Voltage Range: 100-240 Vac
• Current Range: 10-6A
• Frequency Range: 60-50 Hz
