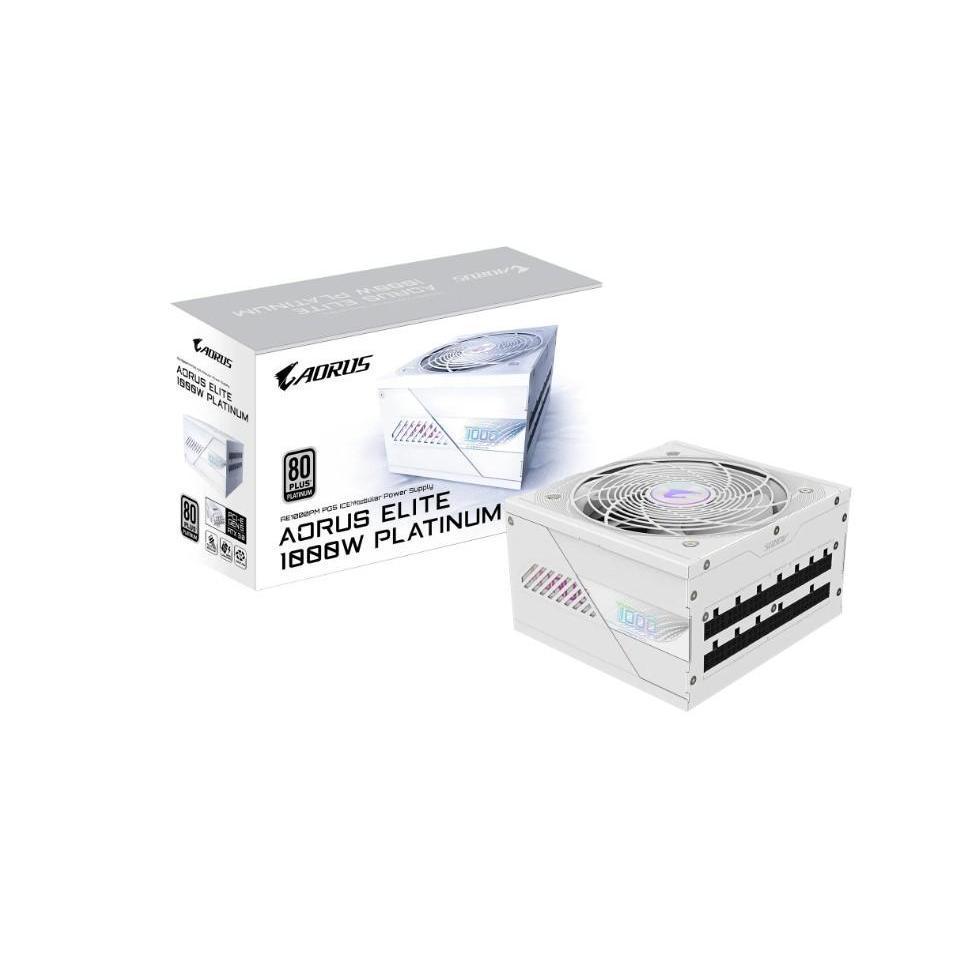

Gigabyte GP-AE1000PM PG5 ICE 1000W ATX Platinum PSU 120mm Fan

The Gigabyte GP-AE1000PM PG5 ICE is a high-performance power supply unit (PSU) designed for demanding PC builds. Featuring an 80 PLUS Platinum efficiency rating and a robust set of safety features, this PSU delivers reliable performance with minimal energy waste.

Performance

• Output Capacity: 1000W
• Efficiency: 92% at typical load
• Mechanical Life Expectancy: >100,000 hours

Display

N/A

Performance

• Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan

Storage

N/A

Connectivity

• Cable Type: Flat, All white
• ATX/MB 20+4 Pin x 1 : 650mm*1
• CPU/EPS 4+4 Pin x 2 : 700mm*2
• PCI-e 16 Pin x 1: 700mm*1
• PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
• SATA x 8 : 600mm+150mm+150mm+150mm*2
• 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Protection

• OVP/OPP/SCP/UVP/OCP/OTP
• Hold Up Time: >16ms
• Power Good Signal: 100-150ms

Technical Specifications

• Type: Intel
• Form Factor: ATX 12V v3.0
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz
• Dimension: 150 x 140 x 86mm
