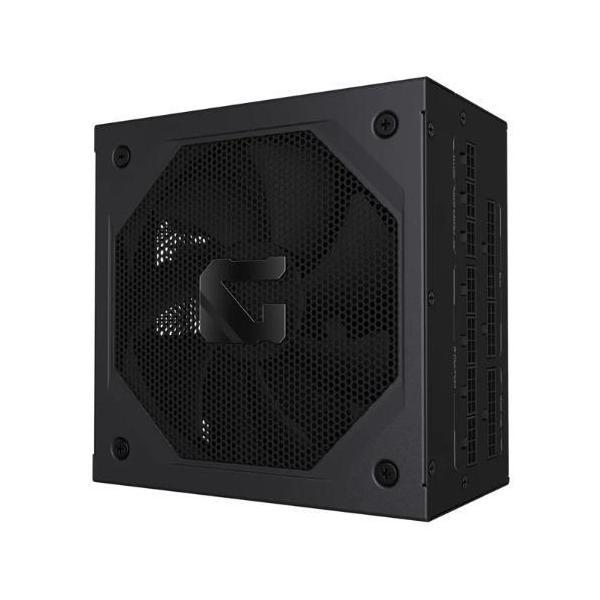

Gigabyte Gaming 750GM PG5 750W ATX Gold Fully Modular PCIe 5.0 PSU 135mm Fan

The Gigabyte Gaming 750GM PG5 is a high-performance power supply unit (PSU) designed for gaming and enthusiast systems. It features an 80 PLUS Gold efficiency rating with a typical load of 90%, ensuring reliable and efficient power delivery.

Performance

• Power Output: 750W
• Efficiency Rating: 80 PLUS Gold
• Mechanical Fan Type: 135mm Fluid Dynamic Bearing (FDB) fan
• Noise Level: 13.8 ~ 35.8 dBA
• Mechanical Life Expectancy: >100,000 hours Mean Time Between Failures (MTBF)

Connectivity and Protections

• Cable Type: Embossed, all black cables
• Protections: Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Temperature Protection (OTP)
• Connectors:
  • ATX/MB 20+4 Pin x 1: 610mm
  • CPU/EPS 4+4 Pin x 2: 600mm each
  • PCIe 16 Pin x 1: 700mm
  • PCIe 6+2 Pin x 4: 600mm + 150mm each pair
  • SATA x 8: 600mm + 150mm each set of four
  • Peripheral 4 Pin x 4: 500mm + 150mm each set of two

Technical Specifications

• Form Factor: ATX 12V v3.1
• PFC Type: Active PFC (>0.9 typical)
• Input Voltage Range: 100-240 Vac
• Hold Up Time: >17ms (80% load)
• Dimensions: 150 x 150 x 86mm
