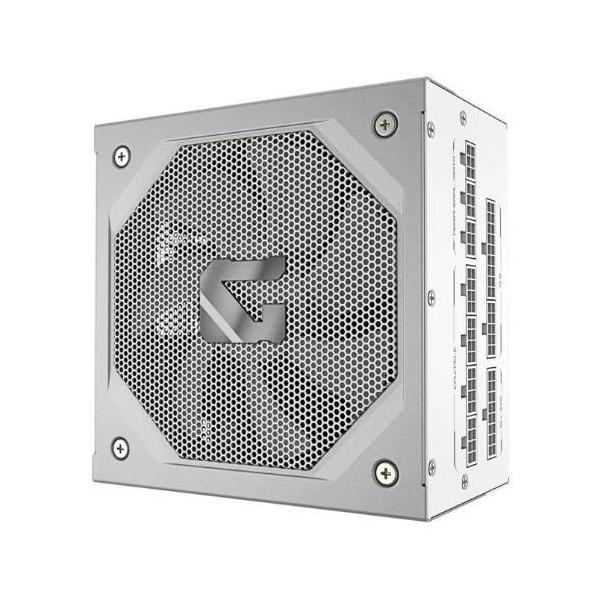

Gigabyte Gaming 750GM PG5 750W ATX Gold Fully Modular PCIe 5.0 PSU 135mm Fan

The Gigabyte Gaming 750GM PG5 is a high-performance power supply unit (PSU) designed for gaming and high-end computing systems. It offers reliable performance with its fully modular design and robust feature set.

Performance

• Output Capacity: 750W
• Efficiency Rating: 80 PLUS Gold
• Hold Up Time: >17ms (at 80% load)
• Mission Time Between Failures (MTBF): >100,000 hours

Fan and Cooling

• Fan Type: 135mm Fluid Dynamic Bearing (FDB) Fan

Connectivity

• Cable Type: Embossed, all black cables
• Connectors:
  • ATX/MB 20+4 Pin x 1: 610mm*1
  • CPU/EPS 4+4 Pin x 2: 600mm*2
  • PCIe 16 Pin x 1: 700mm*1
  • PCIe 6+2 Pin x 4: 600mm+150mm*2
  • SATA x 8: 600mm+150mm+150mm+150mm*2
  • Peripheral 4 Pin x 4: 500mm+150mm+150mm+150mm*1

Protection Features

• OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP: Over-voltage protection, over-power protection, short-circuit protection, under-voltage protection, over-current protection, thermal protection, non-linear overload protection, secondary input protection

Technical Specifications

• Type: Intel
• Form Factor: ATX12V v3.1
• PFC Type: Active PFC (>0.9 typical)
• Voltage Range: 100-240 Vac
• Input Frequency: 50-60 Hz
• Dimensions: 150 x 150 x 86mm
