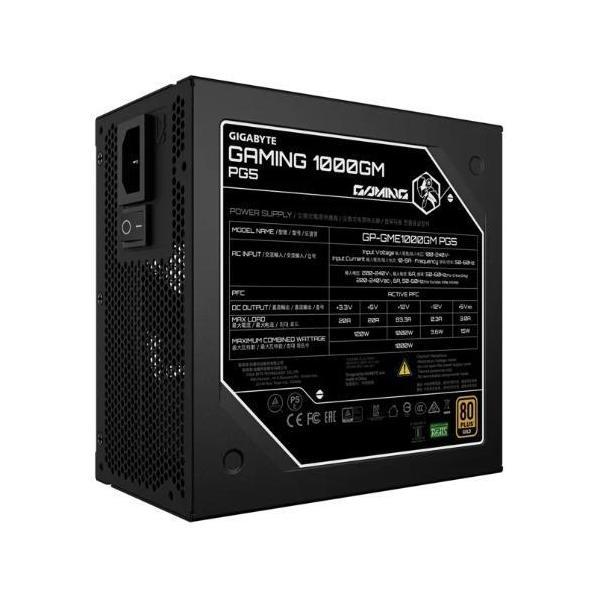

Gigabyte Gaming 1000GM PG5 1000W ATX Gold Fully Modular PCIe 5.0 PSU

The Gigabyte Gaming 1000GM PG5 is a high-performance power supply unit (PSU) designed for demanding gaming and professional workloads. It features an ATX form factor with full modularity and supports PCIe 5.0 standards.

Performance

• Type: Intel
• Form Factor: ATX 12V v3.1
• PFC Type: Active PFC (>0.9 typical)
• Input Voltage Range: 100-240 Vac (full range)
• Output Capacity: 1000W
• Mechanical Life Expectancy: >100,000 hours Mean Time Between Failures (MTBF)
• Efficiency Rating: 80 PLUS Gold
• Hold Up Time: >17ms at 80% load

Connectivity

• Cable Type: Embossed, All black
• ATX/MB Connector: 20+4 Pin x 1 (610mm)
• CPU/EPS Connector: 4+4 Pin x 2 (600mm each)
• PCIe 16-pin Connector: 1 (700mm)
• PCIe 6+2-pin Connectors: 4 (600mm + 150mm each)
• SATA Connectors: 8 (600mm + 150mm + 150mm + 150mm each)
• Peripheral Power Connector: 4 Pin x 4 (500mm + 150mm + 150mm + 150mm each)

Fan and Cooling

• Fan Type: 135mm Fluid Dynamic Bearing (FDB) Fan

Protection Features

• Over Voltage Protection (OVP)
• Over Power Protection (OPP)
• Short Circuit Protection (SCP)
• Under Voltage Protection (UVP)
• Over Current Protection (OCP)
• Thermal Overload Protection (OTP)
• No Load Operation (NLO)
• Secondary Input Protection (SIP)
